Sipromac 600A - Page 55

MACHINE
PART
ITEM
MAT.
CNC
DWG BY
APP. BY
DATE
DATE
QTY.
DEPT.
SIPROMAC
ST-GERMAIN DE GRANTHAM
QUEBEC CANADA
DEPT. TOL.
USINAGE
TOLERIE
SOUDAGE
METRIC
± 0.1
± 0.5
± 0. 5
INCH
± 0.004"
± 0.020"
± 0.020"
N.T.S.
NO.
004A4141
SBU
1
M-I

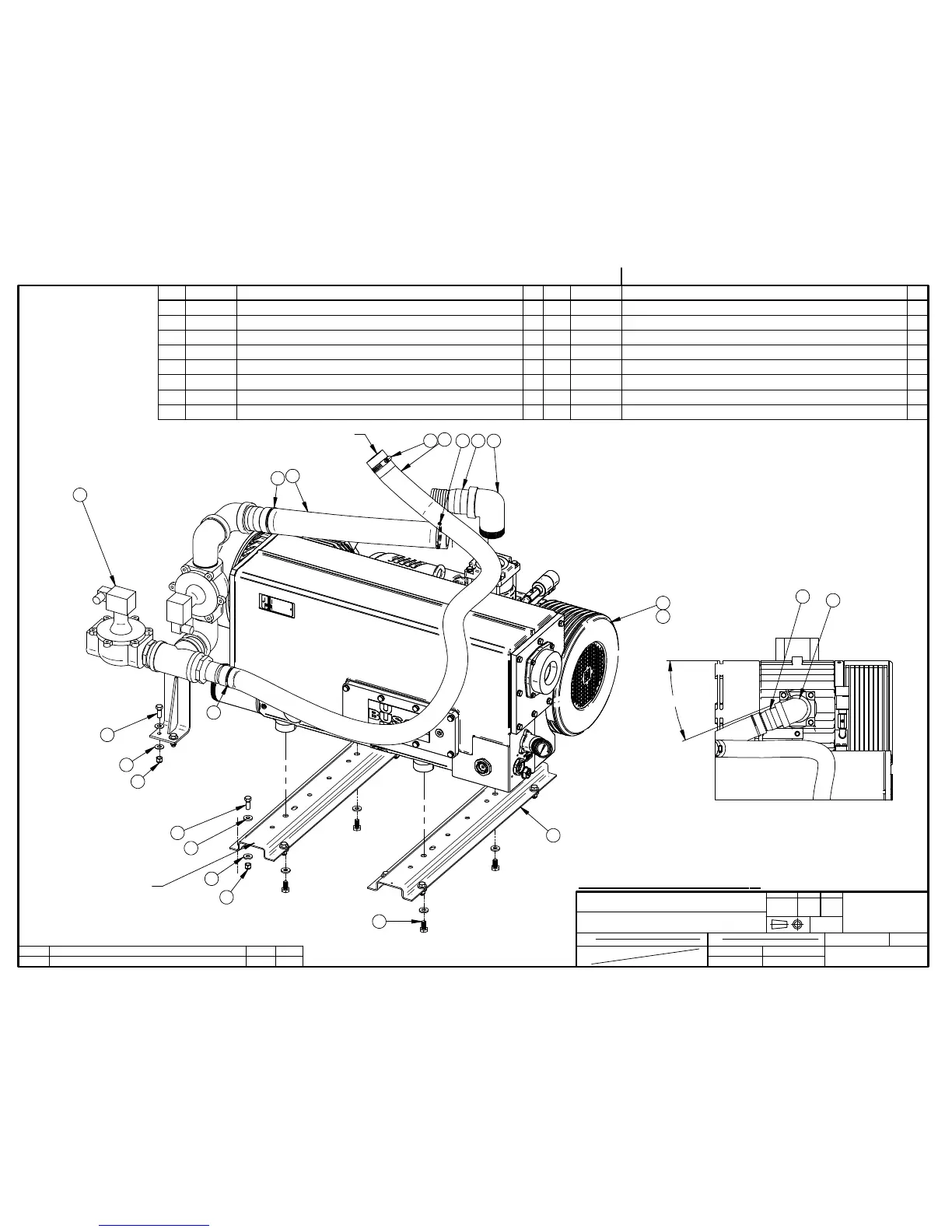

600A & 620A
PUMP "BUSCH" 305 M³
13-11-21
004A4141
LET. MODIFICATION DATE INT.
A
001B6563 WAS 001A6563
14-05-28 SBU
-OPTION - 305M³ PUMP
1
13 OR
6
7
8USE BLUE LOCTITE
9
ITEM PART # DESCRIPTION QT.
1 001B6563 PUMP SUPPORT 2
2 004A0863 VACUUM/ATMOSPHERE VALVE ASSY 1
3 104-0150 HOSE 2'' ID VACUUM POLYWIRE (554mm) 1
4 051-0783 WASHER 3/8" FLAT THICK S/S 20
5 051-0360 BOLT 3/8"-16nc. X 1" S/S 10
6 051-0622 NUT 3/8"-16nc. NYLON LOCK S/S 10
7 051-0780 WASHER 3/8" FLAT S/S 4
8 051-09931 BOLT M10 X 20MM HEX SS 4
ITEM PART # DESCRIPTION QT.
9 105-0258 EAR CLAMP 2" S/S 2
10 104-0125 HOSE 1-1/2'' ID VACUUM POLYWIRE (1720mm) 1
11 105-0250 EAR CLAMP 1-1/2" S/S 1
12 105-0110 SCREW CLAMPS 1-1/16'' TO 2'' ALL S/S 1
13 125-0087 BUSCH RA-0305 230-460V/3PH/60HZ 1
14 004A4082 BELLOWS ELBOW CONNECTOR ASSY 1
15 100-1250 STRAIGHT 2"MNPT X 2" HOSE BARB SS 1
16 125-0088 BUSCH RA-0305 575V/3PH/60HZ 1
5
4
4
6
5
3
12
10
11
TO TABLE
VACUUM INLET
9
SMALL HOLES MUST
BE ON OIL RESERVOIR SIDE
15 14
2
16
14
15
22°
