005B0420
SBU
4
M-I
600A & 620A
SEAL BAR PRE-ASS'Y
13-09-25
005B0420
MACHINE
PART
ITEM
MAT.
CNC
DWG BY
APP. BY
DATE
DATE
QTY.
DEPT.
SIPROMAC
ST-GERMAIN DE GRANTHAM
QUEBEC CANADA
DEPT. TOL.
USINAGE
TOLERIE
SOUDAGE
METRIC
± 0.1
±
0.5
±
0.
5
INCH
± 0.004"
±
0.020"
±
0.020"
N.T.S.
NO.
LET.
MODIFICATION
DATE
INT.
G
AJOUT TEFLON HOLDER
13-09-25
SBU
H
600A ADDED
14-05-27
SBU

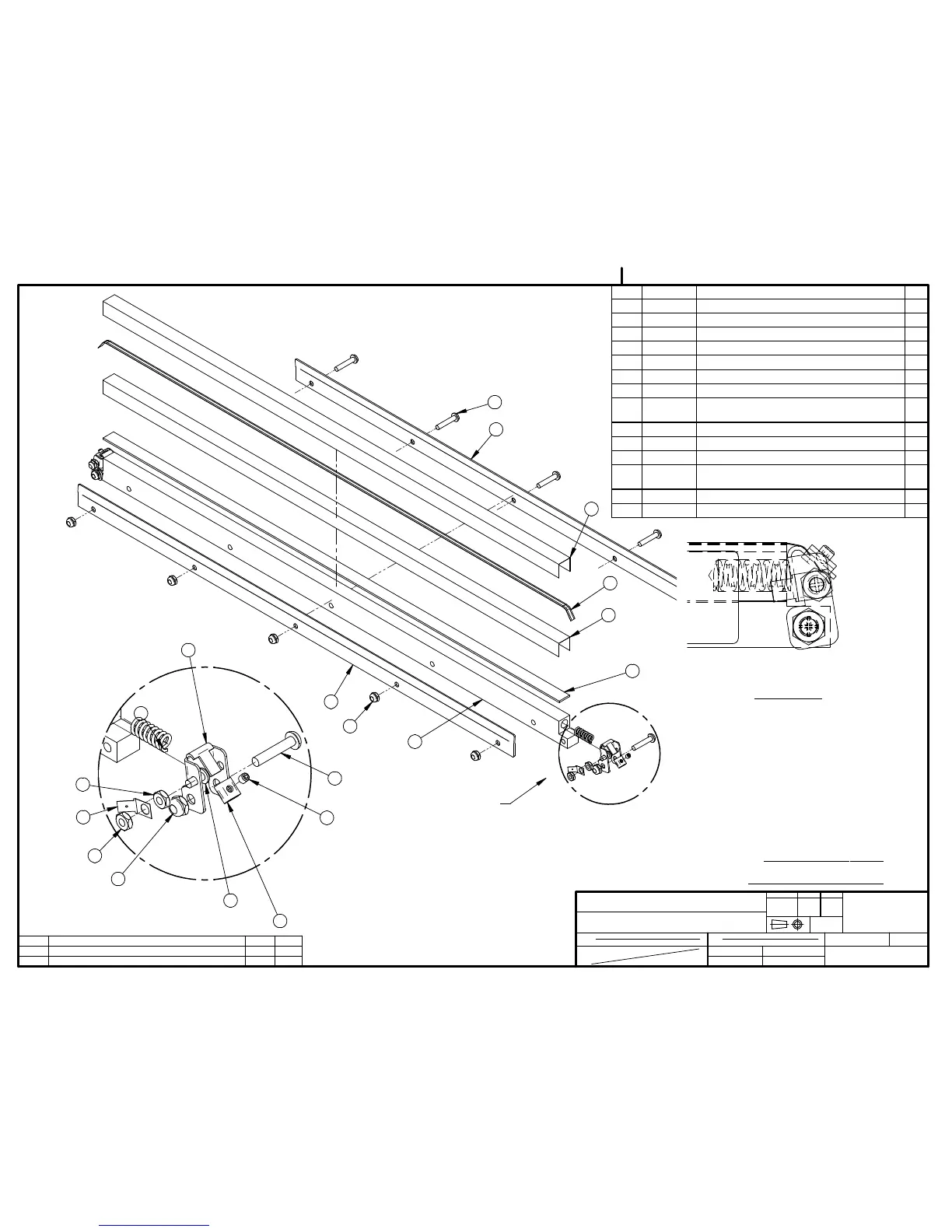

ITEM PART # DESCRIPTION QT.
1 002A4147 SEAL BAR 1
2 001-2666 ELEMENT BINDER 2
3 051-0146 SCREW 10-24 X 1" PAN PHIL S/S 7
4 051-0572 NUT #10-24 NYLON LOCK S/S 7
5 051-0100 SCREW 8-32 X 3/8" PAN PHIL S/S 2
6 051-0550 NUT #8-32 SS 4
7 027-0400 CONNECTOR ADAPTOR 2
8 179-0003 SILICONE 2mm x 15mm ADHESIVE 664mm
(0.664)
1
9 176-0220 TEFLON TAPE, PRESS SENSITIVE 2" (0.081) 1
10 039-0220 BI-ACTIVE SEALING ELEMENT 700mm (0.07) 1
11 056-1400 1/4"SET SCREW BANDING BUCKLE S/S 2
12 176-0203 TEFLON TAPE, 5MIL UNCOATED ZONE
663.5mm (0.066)
1
13 077-0095 SPRING C 0360-059-1250 S/S 2
14 001A6582 TEFLON HOLD DOWN PLATE 2
12
10
9
-TOP & BOTTOM
SEALING OPTION-
-DÉTAIL A-
VOIR DÉTAIL A
B
DETAIL B
6
11 INSTALL AGAINST NOTCH OF ITEM #2INSTALLER CONTRE L'ENCOCHE DE L'ITEM #2
7
6
4
3
11
5
1
8
2PERMETTRE DE BOUGER LIBREMENT ALLOW TO MOVE FREELY
13
4
14
14
3
