129
SJ1044 TH, SJ1044 THS, SJ1056 TH, SJ1056 THS, SJ1256 THS
230790ABA
10 Hour or Daily Routine Maintenance Section 5 – Procedures
5.2-3 Check Transmission Fluid Level
1. Park telehandler on a firm level surface, move
transmission gear selector to Neutral and apply
park brakes.
2. Release latch and lift engine cover to access
engine compartment.
3. Start engine and allow the transmission to reach
normal operating temperature.
Pull out dipstick and wipe with a clean, dry, lint-
free cloth. Fully insert dipstick back into the tube
and then pull it out and check the oil leve
Transmission Oil
Dipstick
Powershift
Transmission
Continuously Variable
Transmission
Transmission
Oil Dipstick

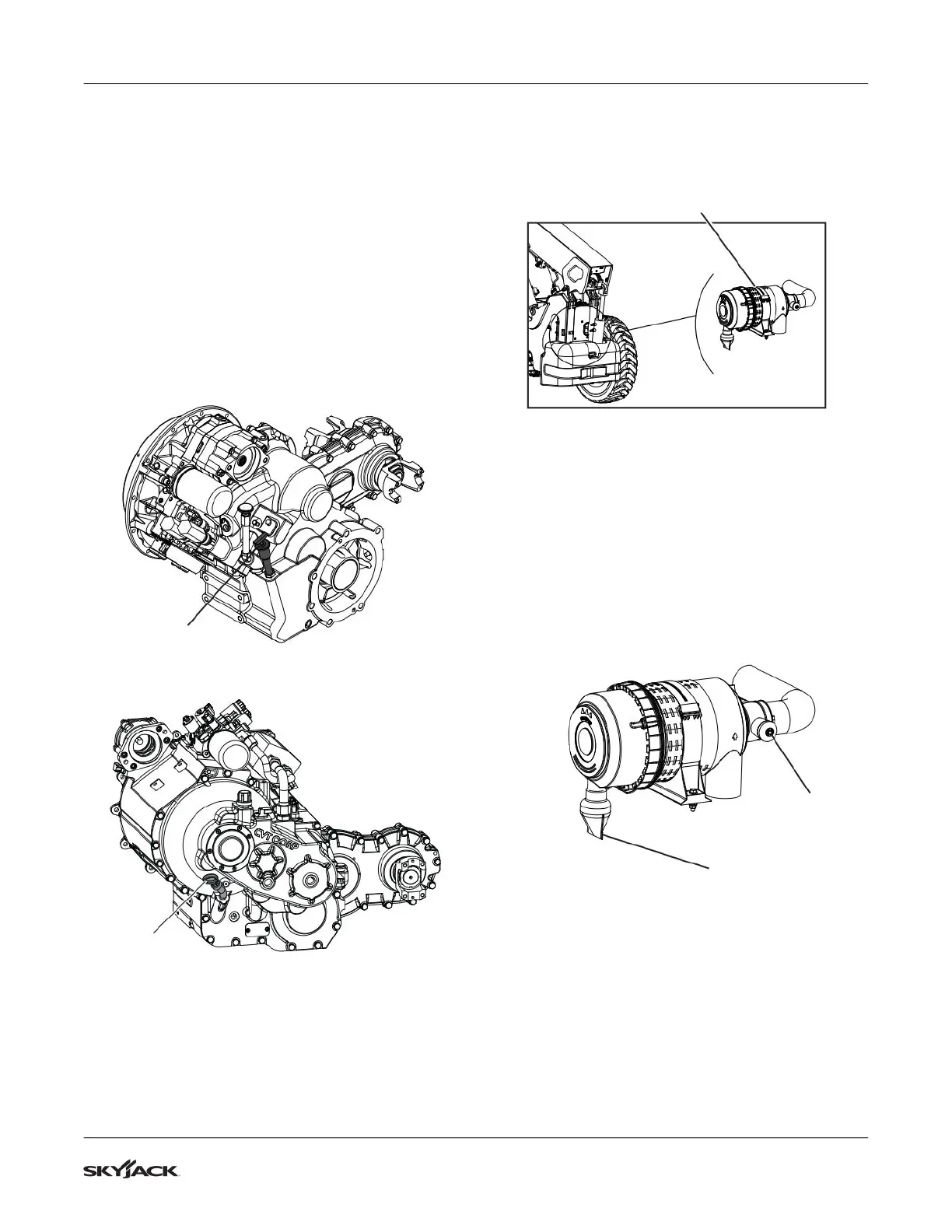

Figure 03 Transmission Oil Dipstick
4. The oil level should be between the “Full” and
“Low” marks.
5. If transmission oil level is low, refer to section 5.5-
6 for transmission oil and filter replacement.
5.2-4 Check Air Cleaner Restriction and
Filter Elements
Air Cleaner
Location
Figure 04 Air Cleaner Location
1. Service the air cleaner when a red band appears
on the service indicator. After servicing, press the
indicator to reset it.
2. Check the air cleaner vaccuator valve to see that
it is clean and that the rubber is not cracked.
Squeeze the valve lips and remove any dirt or
dust. It should expel dust and dirt continuously
when the engine is running. See figure below.
Vaccuator
Valve
Service
Indicator
Figure 05 Air Cleaner Vaccuator Valve
