Scheduled Maintenance Inspections Section 1 – Scheduled Maintenance
▪
Drain water by opening water drain plug at
bottom of filter. Close tightly after inspection.
Refer to section 5.4-5 for fuel/water separator
replacement procedure
1.5-8 Transmission
Ensure transmission shifter is working properly and
there is no evidence of damage.
▪
Check oil level on dipstick “ ” - D
▪
With park brake engaged and transmission
shifter in “N” Nuetral position, start engine.
▪
Oil level should be in the ‘safe’ zone. Add oil as
needed. Refer to section 5.5-6 for transmission
oil change procedure.
1.5-9 Boom - A
▪
Ensure there are no loose or missing parts and
there is no visible damage.
▪
Ensure all bolts and pins are properly tightened.
▪
Ensure there are no visible cracks in welds or
structure and there are no signs of deformation.
▪
Ensure all hoses are properly tightened and
there is no evidence of hydraulic leakage.
▪
Boom Angle Switches - A
▪
Ensure boom angle switches are properly
secured with no signs of visible damage.
▪
Slide Pads - B, C, D
▪
Ensure all bolts are tight, there is no visible
damage to the slide pads and that no parts are
missing.
▪
Chain - A, C
▪
Ensure there are no loose or missing parts and
there is no visible damage
▪
Boom Angle Indicator - A
▪
Ensure all bolts are tight, and there is no visible
damage and indicator swings freely.
1.5-10 Lifting Attachment - A
▪
Ensure there are no loose or missing parts and
there is no visible damage.
▪
Ensure attachment is properly positioned and
secured. (refer to Section 2.13 for attachments
installation and operation).

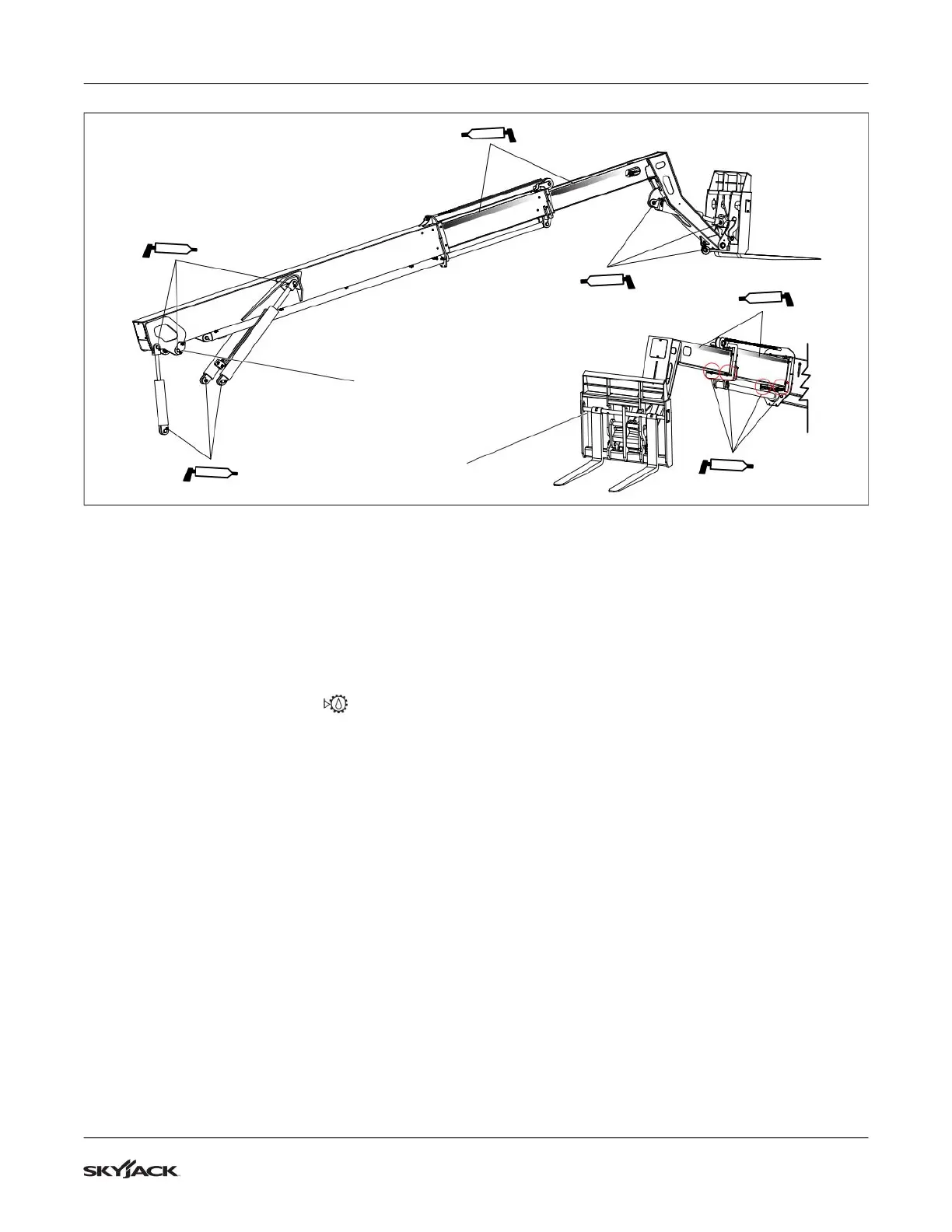

Boom Angle
Switch
Fork Carriage
Attatchment
