Skyjack SJ1044 TH - 17 Grease Bottom Front & Top Rear Slide Pads

147
SJ1044 TH, SJ1044 THS, SJ1056 TH, SJ1056 THS, SJ1256 THS
230790ABA
250 Hour or Quarterly Routine Maintenance Section 5 – Procedures
5.4-17 Grease Bottom Front & Top Rear
Slide Pads
1. Ensure telehandler is parked on a firm level
surface.
2. Move transmission lever to neutral and engage
park brake.
3. Fully extend the boom to gain access to front
bottom slide pads.
4. Shut down the engine and dismount from cab.
5. With boom fully extended, smear grease along
the path of front bottom slide pads. See figures
below.

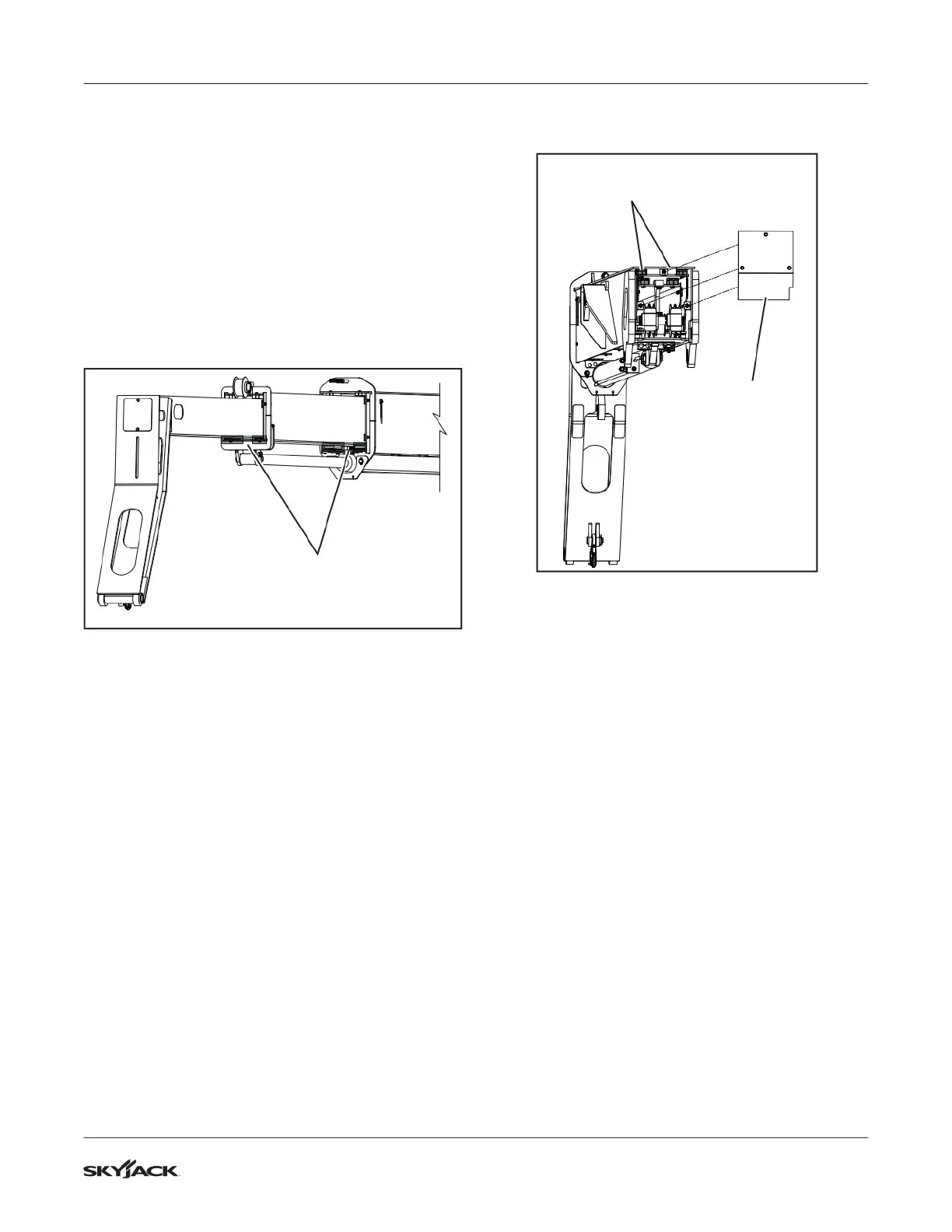

Front Bottom
Slide Pads
Grease Points
Figure 48 Front Bottom Slide Pads
6. Fully retract the boom then fully extend it a few
times to ensure the path of slide pads is covered
with grease for maximum protection.
7. With boom fully retracted, remove boom rear
cover door to gain access to top rear slide pads.
8. Smear grease along the path of rear top slide
pads. See figure below.
Figure 49
Rear Top
Slide Pads
Grease Points
Boom Rear
Cover
Front Bottom Slide Pads
9. Shut down the engine and remove key.
