Skyjack SJ1044 TH - Outrigger Manifold Port Identifications

59
SJ1044 TH, SJ1044 THS, SJ1056 TH, SJ1056 THS, SJ1256 THS
230790ABA

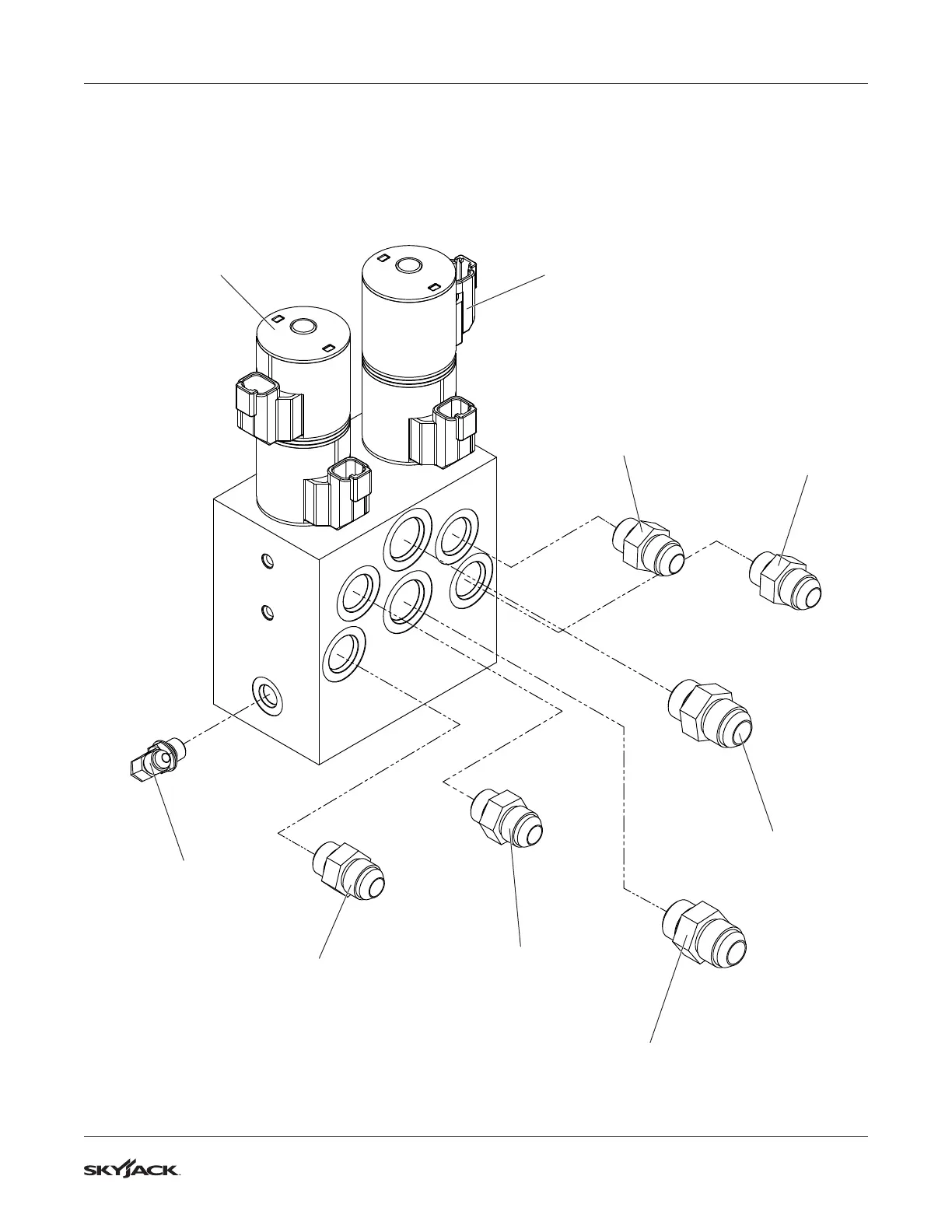

Outrigger Manifold Port Identifications Section 3 – System Component Identification and Schematics
V25
4H-227
&
4H-228
V26
4H-225
&
4H-226
Port R1 to Port R
on Right Outrigger
Cylinder
Port R2 to Port R
on Left Outrigger
Cylinder
Port DR4 to Port DR4
on Main Manifold
Port OUTT EF2
to Port OUTT
on Main Manifold
Port OUTT LS
to Port OUTT LS
on Main Manifold
Port E1 to Port E
on Right Outrigger
Cylinder
Port E2 to Port E
on Left Outrigger
Cylinder
3.13 Outrigger Manifold Port Identifications
