Section 1 – Scheduled Maintenance Scheduled Maintenance Inspections
1.5 Scheduled Maintenance
Inspections
Before performing the visual and daily maintenance
inspections, ensure that the telehandler is parked on a
firm level surface.
Begin the visual and daily maintenance inspections
by checking each item in sequence for the conditions
listed in this section.
WARNING
To avoid injury, do not operate a telehandler until
all malfunctions have been corrected.
WARNING
To avoid possible injury, ensure telehandler power
is off during your visual and daily maintenance
inspections.
NOTE
While performing visual and daily inspections
in different areas, be aware to also inspect all
switches, electrical and hydraulic components.
1.5-1 Labels - A
Refer to the labels section in this manual and determine
that all labels are in place and are legible.
1.5-2 Electrical
Maintaining the electrical components is essential to
good performance and service life of the telehandler.
▪
Ensure proper operation of all gauges.
▪
Inspect the following areas for chafed, corroded
and loose wires:
▪
boom wiring harnesses - A
▪
frame wiring harnesses - A
▪
cab wiring harnesses - A
Ensure electrical devices are properly secured with no
signs of visible damage. Ensure there are no loose or
missing parts.
1.5-3 Mirrors - A
Ensure mirrors are properly secured with no signs of
visible damage.
1.5-4 Hydraulic
Maintaining the hydraulic components is essential to
good performance and service life of the telehandler
Perform a visual inspection and check for leaks around
the following areas:
▪
hydraulic tank, filter(s), fittings, hoses, pump, and
frame surface
▪
all hydraulic cylinders - A
▪
all hydraulic manifolds - A
▪
underside of the frame - A
▪
ground area under the telehandler - A

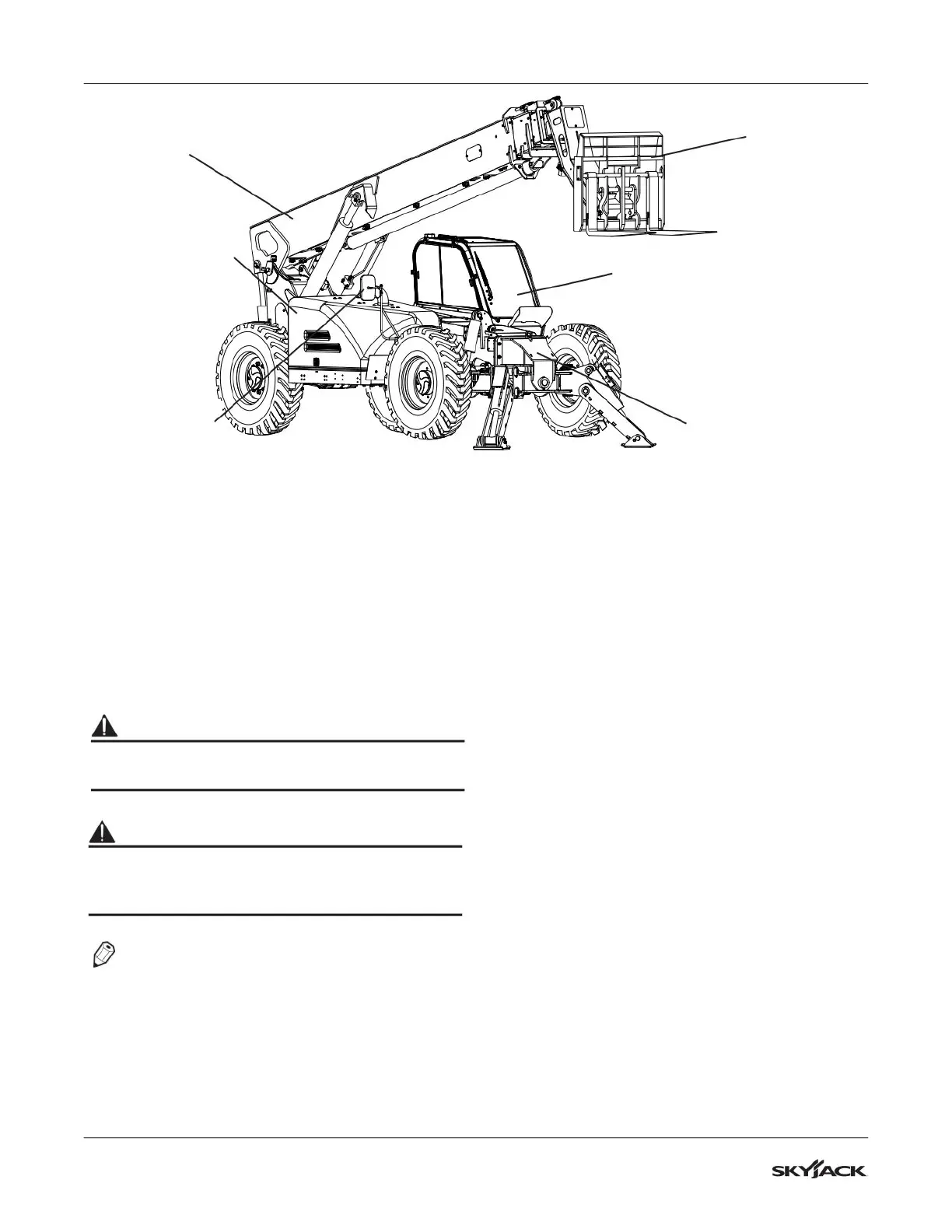

Boom Assembly
Engine
Compartment
Operator’s
Cab
Forks/Lifting
Attachment
Side-View
Mirror
Frame
