Hydraulic Pump and Return Filter Ports Identification Section 3 – System Component Identification and Schematics

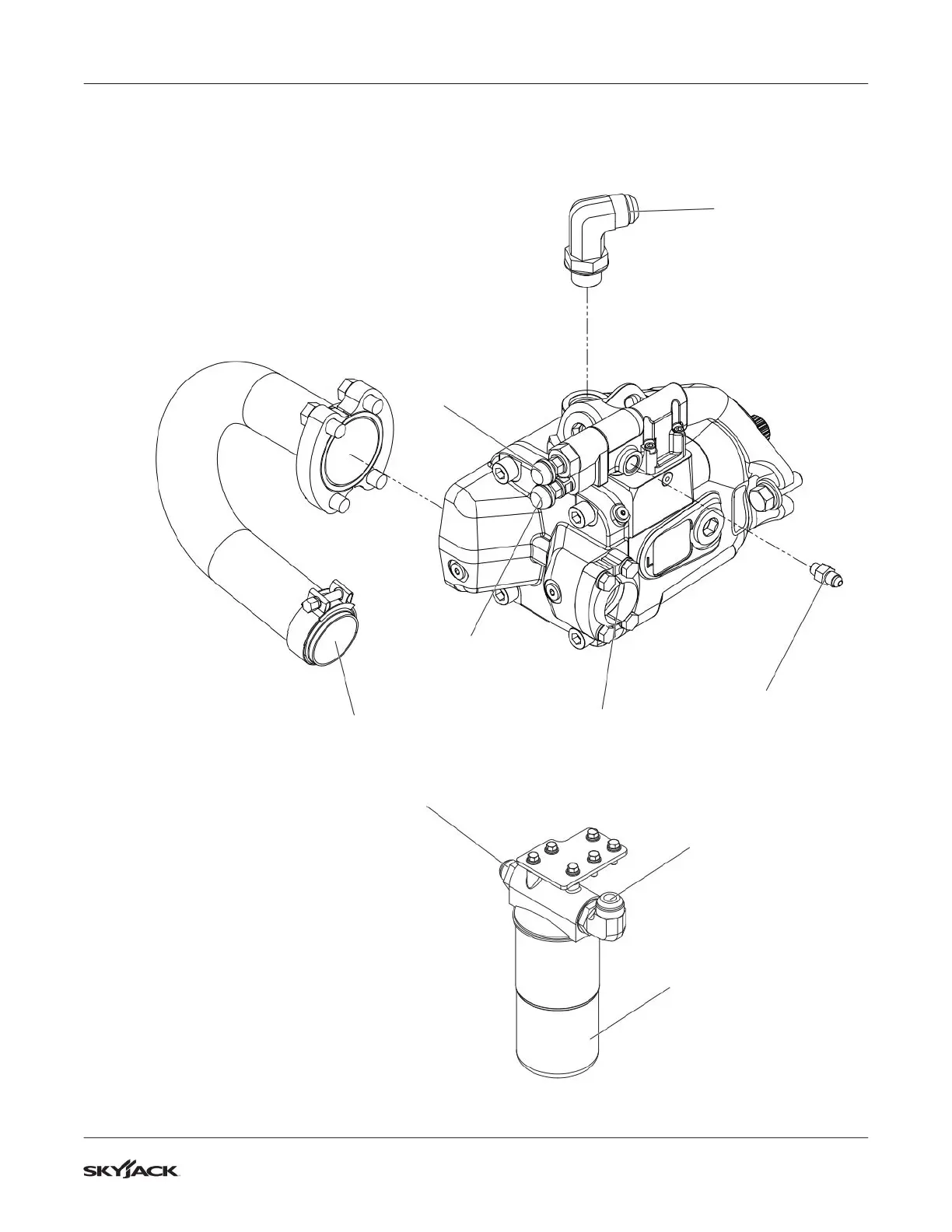

3.5 Hydraulic Pump and Return Filter Ports Identification
Port L
To Hyd. Tank
Load Sense
Compesator
Adjuster
Port S
To Hyd. Tank
Inlet
Outlet
Return Filter
Port P to Port P12
on Main Manifold
Port X to Port LS
on Main Manifold
Pressure
Compesator
Adjuster
M190807-1 M191415AA-S1
