Section 3 – System Component Identification and Schematics Premium Joystick Port Identifications
"2" "P" "4"
"3"
"1" "T"
MACHINE
FRONT

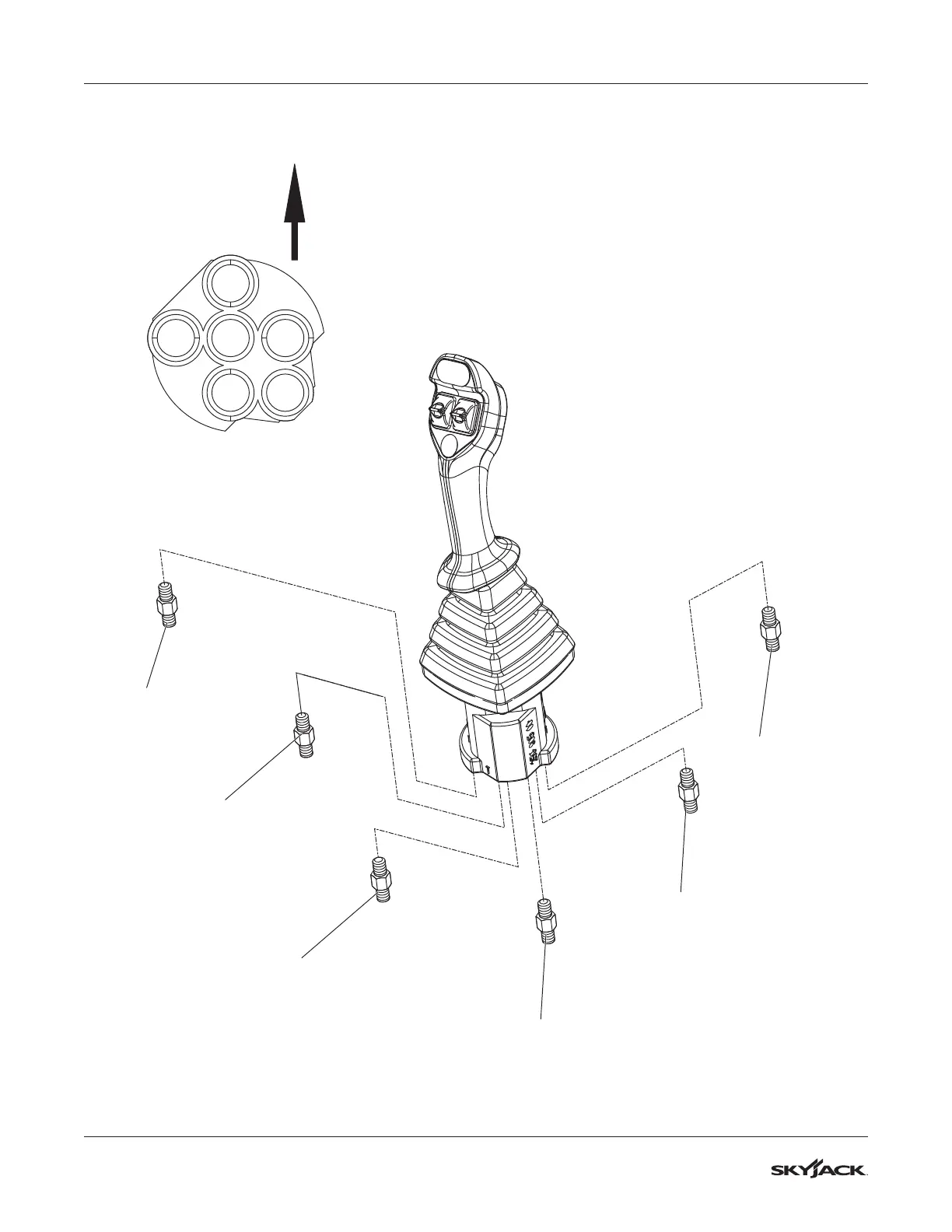

3.10 Premium Joystick Port Identifications
Port 2 to Port J2
on Main Manifold
Port 1 to Port J1
on Main Manifold
Port 3 to Port J3
on Main Manifold
Port 4 to Port J4
on Main Manifold
Port T to Port DR2
on Main Manifold
Port P to Port PS
on Main Manifold
M1344040201_JS
