Section 5 – Procedures 250 Hour or Quarterly Routine Maintenance
5.4-15 Grease Frame Level Pivot Bushings
1. Apply grease to the grease fittings at each end of
the frame level cylinder. See figure below.
Frame Level Cylinder
Grease Points

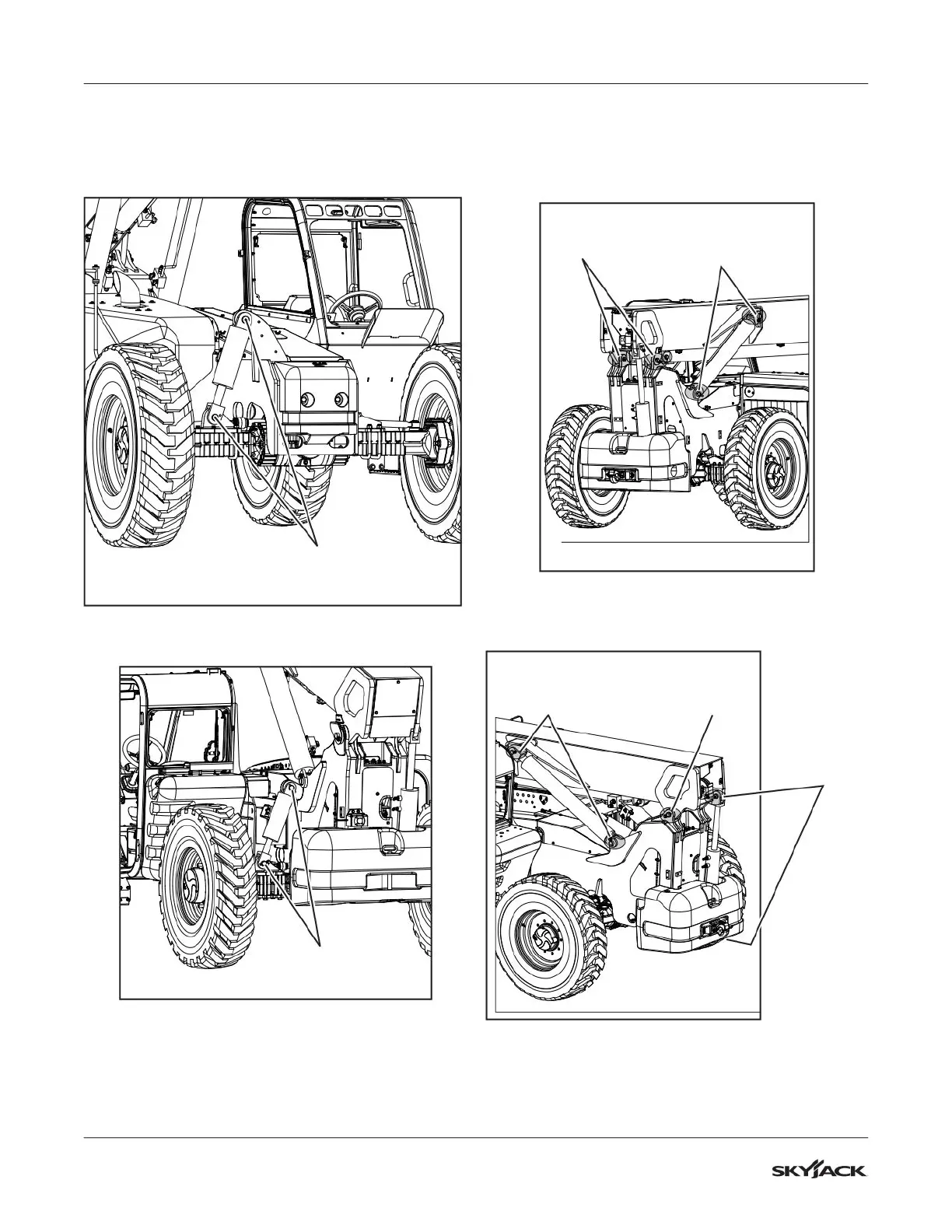

Figure 44 Stabilizer Grease Points
Rear Axle Lock
Cylinder Grease Points
Figure 45 Rear Axle Lock Cylinder Grease Points
5.4-16 Grease Boom Pivot and Boom
Cylinders
1. Apply grease to the following grease points on
boom pivot and boom cylinders.
Right Extend
Cylinder
Grease Points
Boom Pivot
Grease Points
Figure 46 Boom Grease Points
Left Extend
Cylinder
Grease Points
Tilt/Comp
Cylinder
Grease
Points
Left Boom Pivot
Grease Point
Figure 47 Boom Grease Points
