198
SJ1044 TH, SJ1044 THS, SJ1056 TH, SJ1056 THS, SJ1256 THS
230790ABA

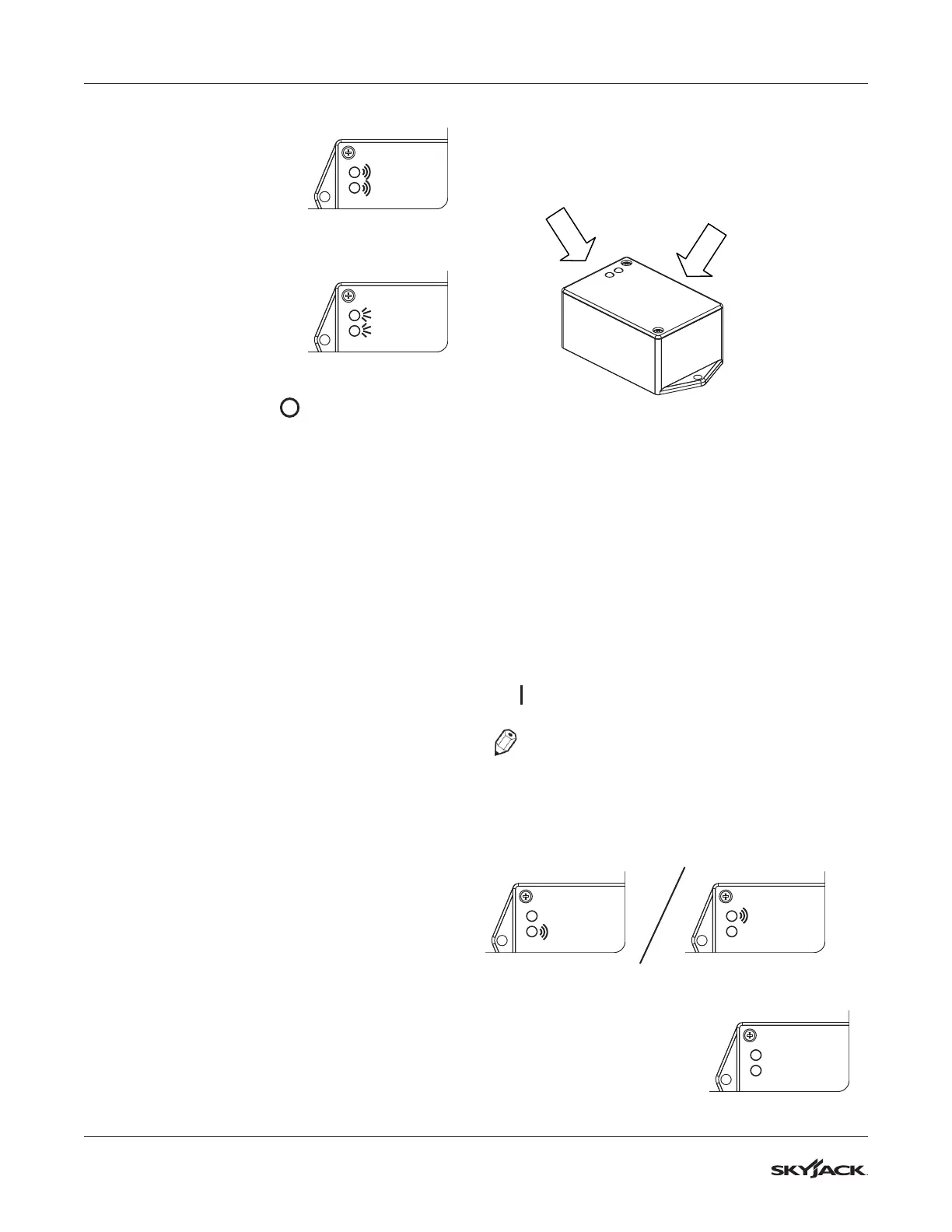

Section 5 – Procedures Electronic Tilt Switch Setup Procedure
Red LED
Green LED
3. Both LEDs will
flash for 1 second.
Results: The switch is
learning the new zero
position.
Red LED
Green LED
4. Both LEDs will turn on
solid for 1 - 2 seconds.
Results: The new zero
position has been
learned.
13. Turn ignition switch to “ ” off position.
14. Remove chock or wheel blocks.
15. Proceed to Test and Verify Tilt Circuit.
5.7-2 Reprogramming Existing Tilt Switch
Red LED
Green LED
Light Indicators
Set up button is located on this
face next to harness
1. Ensure telehandler is parked on a firm level
surface.
IMPORTANT
Use a digital level to ensure frame is level.
2. Apply park brake and move transmission shifter
to neutral.
3. Fully lower and retract the boom.
4. Chock or block wheels to prevent the telehandler
from rolling forward or backward.
5. Shut down the engine and turn ignition switch to “
” ON position.
NOTE
The tilt circuit is only powered when controls are
powered up.
6. Verify switch is powered. (Red or green LEDs are
illuminated and blinking).
Red LED
Green LED
Red LED
Green LED
7. Reprogram the Tilt Switch
Red LED
Green LED
1. Press and hold
the set zero
button for 3 seconds.
Results: Both LEDs will
be OFF.
To Next Page
