SJ1044 TH, SJ1044 THS, SJ1056 TH, SJ1056 THS, SJ1256 THS
230790ABA

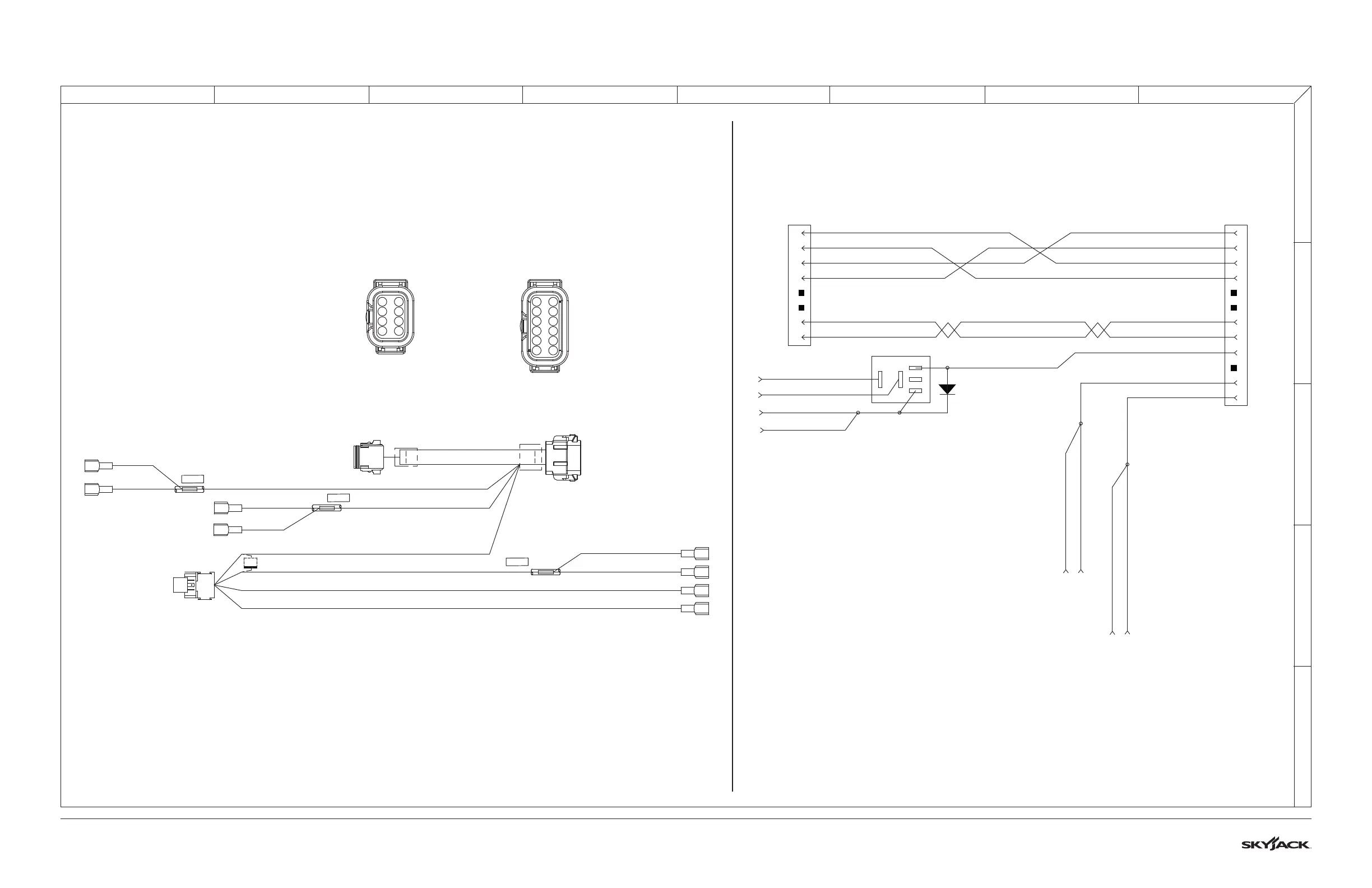

3.24 Elevate Telematics Harness
J1
57D-BRN/GRN-16-TEW
221-DK GRN/TAN-16-TEW
26B-BLU/YEL-16-TEW
HARNESS
SCHEMATIC
60C-WHT/BLU-16-TEW
03-GRN/PUR-16-TEW
00-WH-16-TEW
60B-WHT/BLU-16-TEW
CANH-YEL/BLU-16-TEW
CANL-GRN-16-TEW
60C-WHT/BLU-16-TEW
60B-WHT/BLU-16-TEW
00-WH-16-TEW
CANH-YEL/BLU-16-TEW
CANL-GRN-16-TEW
26B-BLU/YEL-16-TEW
221-DK GRN/TAN-16-TEW
57D-BRN/GRN-16-TEW
03-GRN/PUR-16-TEW
J77
03B-GRN/PUR-16-TEW
26B-BLU/YEL-16-TEW
221
26B
221-DK GRN/TAN-16-TEW
57-BRN/GRN-16-TEW
57E-BRN/GRN-16-TEW
03B-GRN/PUR-16-TEW
03B
12
11 10 9 8
7
6
5
4
3
2
1
8
7
6
5
4
3
2
1
D57B
87
30
85
86
J1
BACK VIEW
PIN 1 - 60C-WHITE/BLUE
PIN 2 - 60B-WHITE/BLUE
PIN 3 - 03-GREEN/PURPLE
PIN 4 - 00-WHITE
PIN 5 - PLUGGED
PIN 6 - PLUGGED
PIN 7 - CANH-YELLOW/BLUE
PIN 8 - CANL-GREEN
PIN 9 - 57D-BROWN/GREEN
PIN 10 - PLUGGED
PIN 11 - 221-DARK GREEN/TAN
PIN 12 - 26B-BLUE/YELLOW
1
J1
2
3
4
5
6
7
8
9
10
11
12
J77
FRONT VIEW
1
2
3
4
5
6
7
8
PIN 1 - 03-GREEN/PURPLE
PIN 2 - 00-WHITE
PIN 3 - 60C-WHITE/BLUE
PIN 4 - 60B-WHITE/BLUE
PIN 5 - PLUGGED
PIN 6 - PLUGGED
PIN 7 - CANH-YELLOW/BLUE
PIN 8 - CANL-GREEN
J77
26B
221
57D
26B
221
S221
S26B
57
57E
57DCR
S03B
03B
03B
M221451AC-S1
