135
SJ1044 TH, SJ1044 THS, SJ1056 TH, SJ1056 THS, SJ1256 THS
230790ABA
250 Hour or Quarterly Routine Maintenance Section 5 – Procedures
5.4-4 Replace Engine Oil and Filter
Maintaining the engine components is essential to
good performance and service life of the telehandler.
Periodic replacement of the engine oil and filter is
essential to good engine performance.
NOTE
Shut off engine and allow it to cool down prior to
performing this procedure.
CAUTION
Beware of hot engine components. Contact with
hot engine components may cause severe burns.
CAUTION
When draining hot oil, there is a risk of scalding.
Do not let used oil run into the soil, rather collect it
in a container. Dispose of this in accordance with
environmental regulations.
1. Ensure telehandler is parked on a firm level
surface.
2. Apply park brake and remove key from ignition
switch.
3. Allow engine to cool down.
4. Unlatch engine cover and lift it to gain access to
engine compartment.
5. Place a container capable of holding
approximately 7 quarts (7.4 litres) under engine
oil drain plug.
Engine
Compartment
Cover

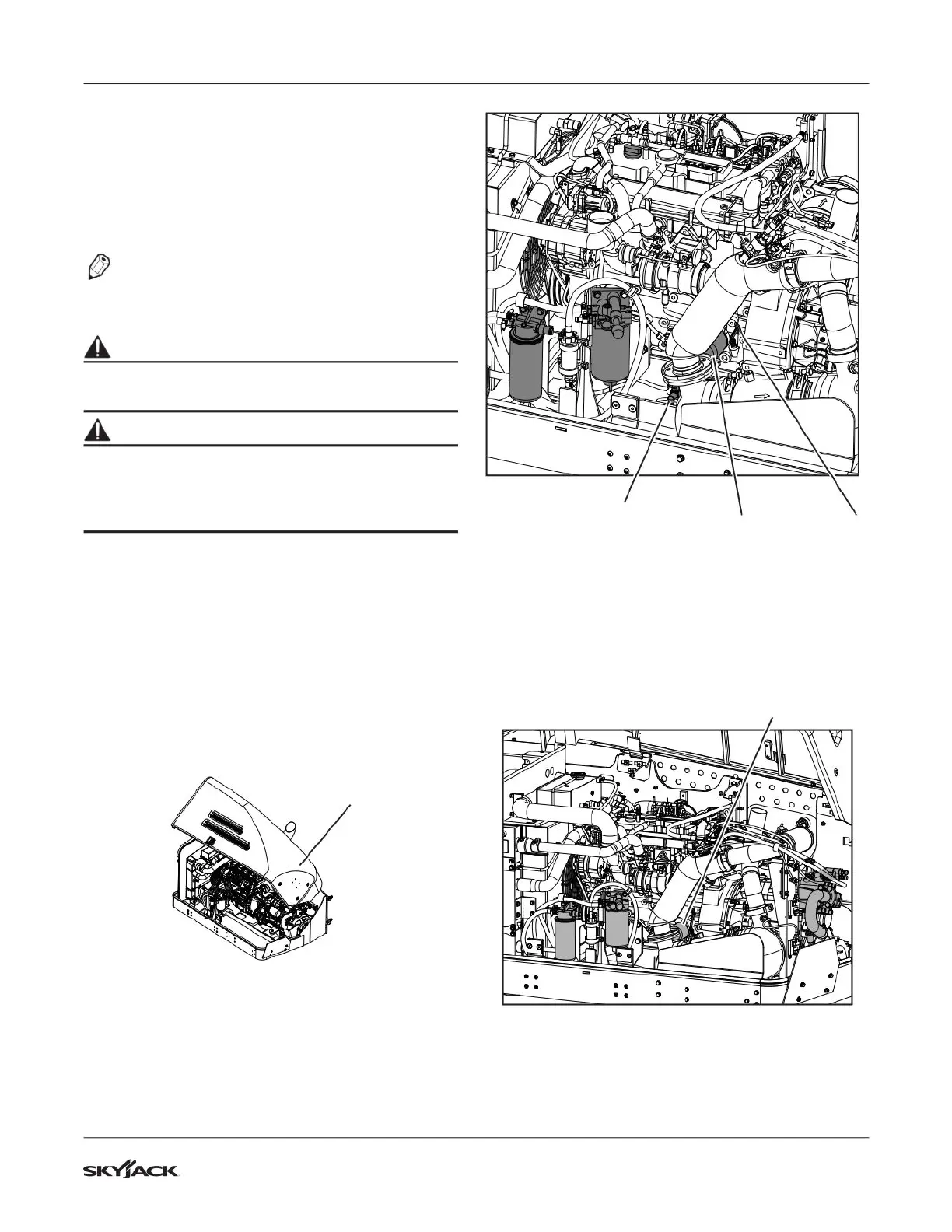

Figure 16 Engine Cover
6. Remove oil drain plug and allow all engine oil to
drain into container. See figure below.
Engine Oil
Filter
Oil
Dipstick
Oil Quick
Drain Plug
Figure 17 Engine Oil Draining
1. Install oil drain plug with a new seal ring and
tighten firmly.
2. Remove oil filter and catch any escaping oil.
Engine Oil Filter
Figure 18 Engine Oil Filter Location
3. Clean inside the filter head.
To Next Page
