Skyjack SJ1044 TH - Premium Joystick Manifold Port Identifications

57
SJ1044 TH, SJ1044 THS, SJ1056 TH, SJ1056 THS, SJ1256 THS
230790ABA
Premium Joystick Manifold Port Identifications Section 3 – System Component Identification and Schematics
3.11 Premium Joystick Manifold Port Identifications

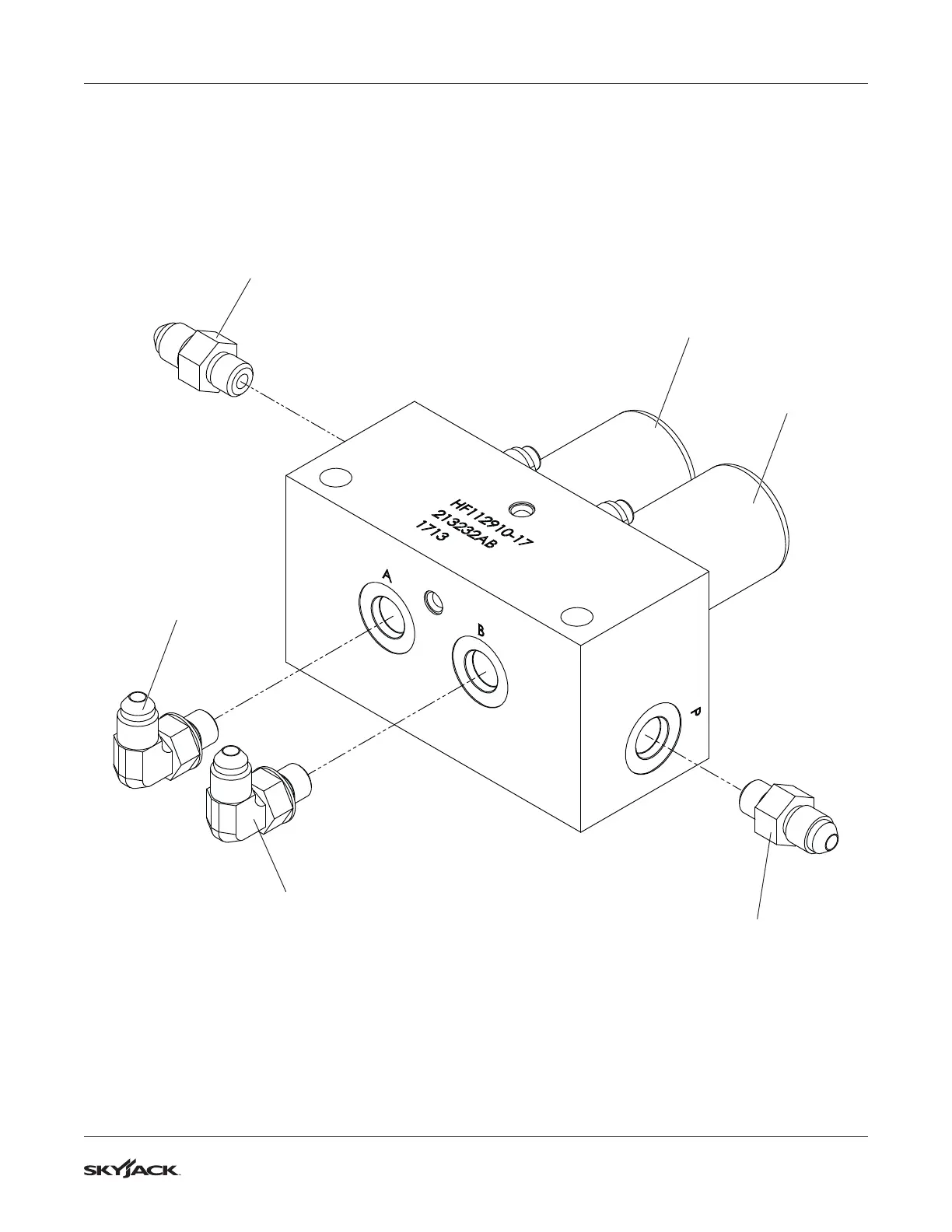

Port B
to Carriage Up Port
on Main Manifold
Port D to tee fitting GP2
on Main Manifold
Port D to tee fitting DR1
on Main Manifold
3H-40
Carriage Down
3H-41
Carriage Up
Port A
to Carriage Down Port
on Main Manifold
213749AA-SM
