Skyjack SJ1044 TH - Rear Axle Stabilization Manifold Port Identification

58
SJ1044 TH, SJ1044 THS, SJ1056 TH, SJ1056 THS, SJ1256 THS
230790ABA

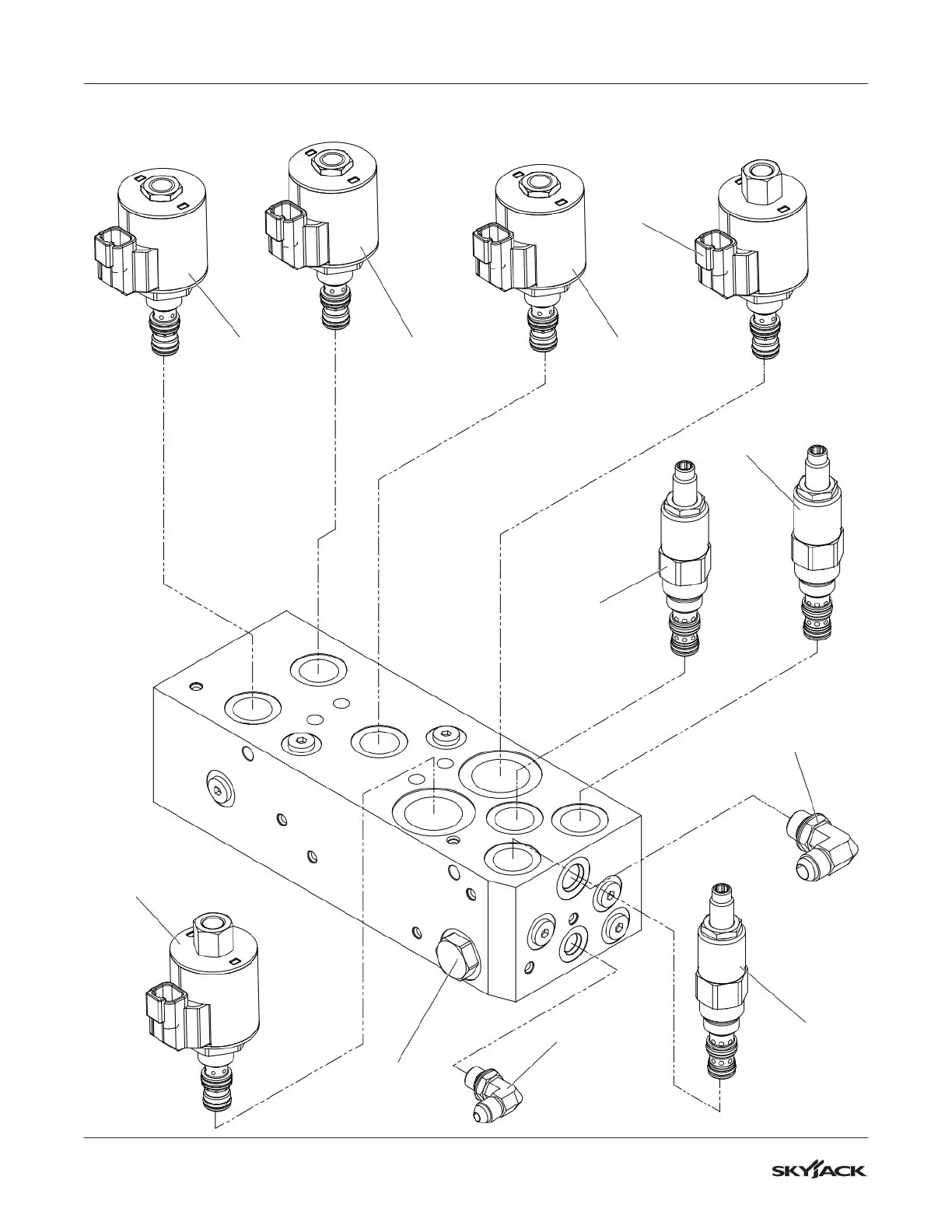

Section 3 – System Component Identification and Schematics Rear Axle Stabilization Manifold Port Identification
2H-221-1
RAS Unlock
2H-221-2
RAS Unlock
2H-221-3
RAS Unlock
RV7
Relief Valve
CV15
Check Valve
2H-65
RAS Restrict
RV6
Relief Valve
2H-65
RAS Restrict
2H-65
RAS Restrict
Port RAST
to Port RAST
on Main Manifold
Port RASP
to Port RASP
on Main Manifold
3.12 Rear Axle Stabilization Manifold Port Identification
M198734AB-S1
