Section 5 – Procedures 1000 Hour or Annual Routine Maintenance
9. Check oil level on sight gauge. See figure below.
Drop box
Oil Fill Plug
Oil Level
Sight Glass

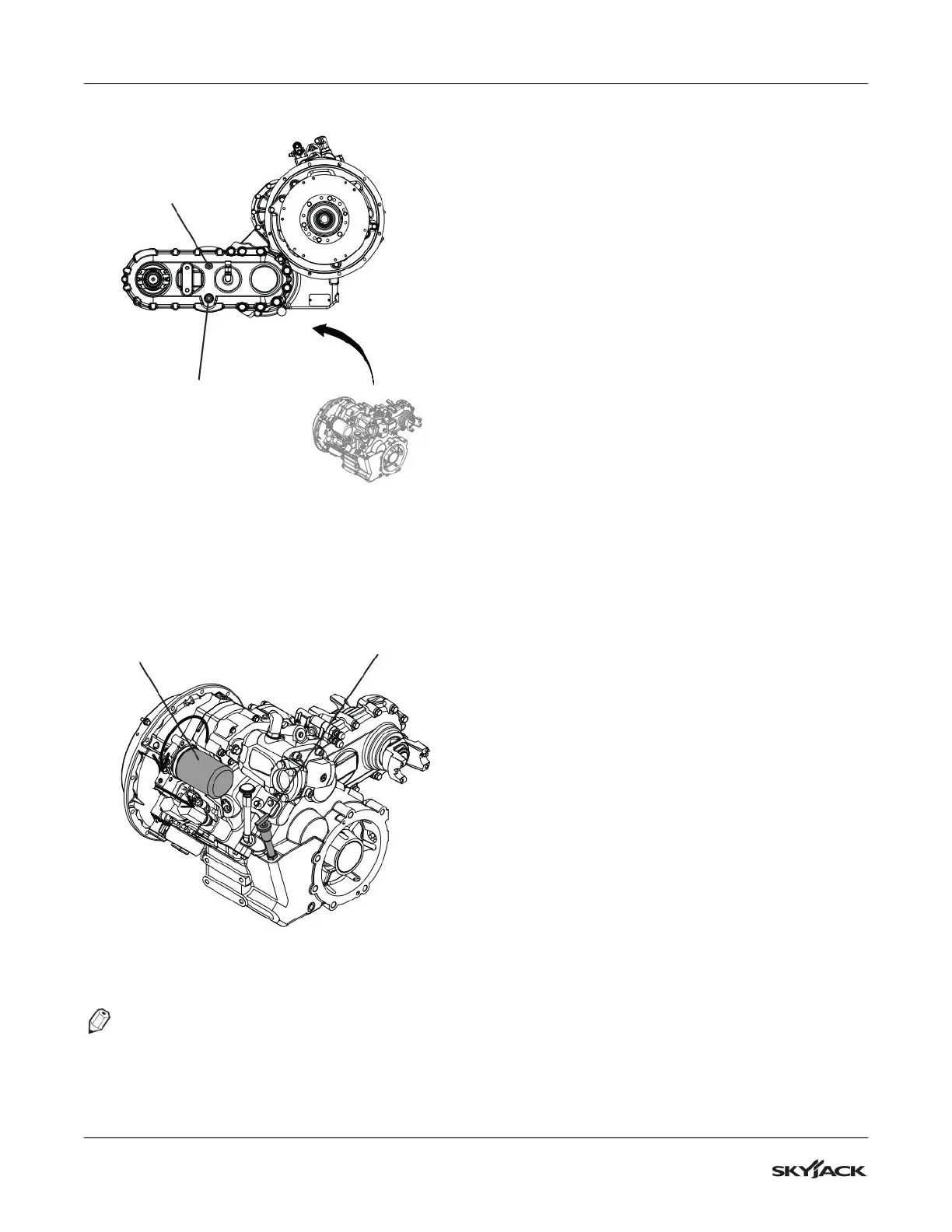

Figure 64 Transmission Oil Filter Removal
10. Clean the area around the transmission filter.
11. Remove the used filter and discard in
accordance with local guidelines.
Remove Transmission
Oil Filter
Oil Dipstick
Figure 65 Transmission Oil Filter Removal
NOTE
Refer to local/national environmental regulations
on how to dispose of used oil and filter.
12. Apply a light coating of oil to the new filter
gasket and install it on the transmission.
13. Hand tighten the new filter until it touches the
base then tighten an additional 1/2 to 3/4 turn.
14. Remove the dipstick and fill the transmission
with 14.2 quarts (13.5 liters) of fresh clean
transmission oil through the dipstick tube. Refer
to Table 2.3 for transmission oil specifications.
15. Install the dipstick and screw on tightly.
16. Start engine and allow it to run until the
transmission oil is at normal operating
temperature.
17. Move the Direction Control Lever to ‘Neutral’,
and shut down engine.
18. Remove the transmission oil dipstick then check
the transmission oil level. Add as required.
