162
SJ1044 TH, SJ1044 THS, SJ1056 TH, SJ1056 THS, SJ1256 THS
230790ABA
Section 5 – Procedures Non-Routine Maintenance
Install Boom Hydraulic Hoses
1. With rear access cover plate removed, insert right
side hoses & left side hoses and rest half-way on
the rollers.
2. Connect auxilliary hoses (cab side) to bulkhead
under front of boom assembly as shown in figure
below.
3. Connect carriage tilt hoses (tank side) to
bulkhead as shown in figure below.
4. Fully loosen off the extend chain anchor jam nut
and tension nut.

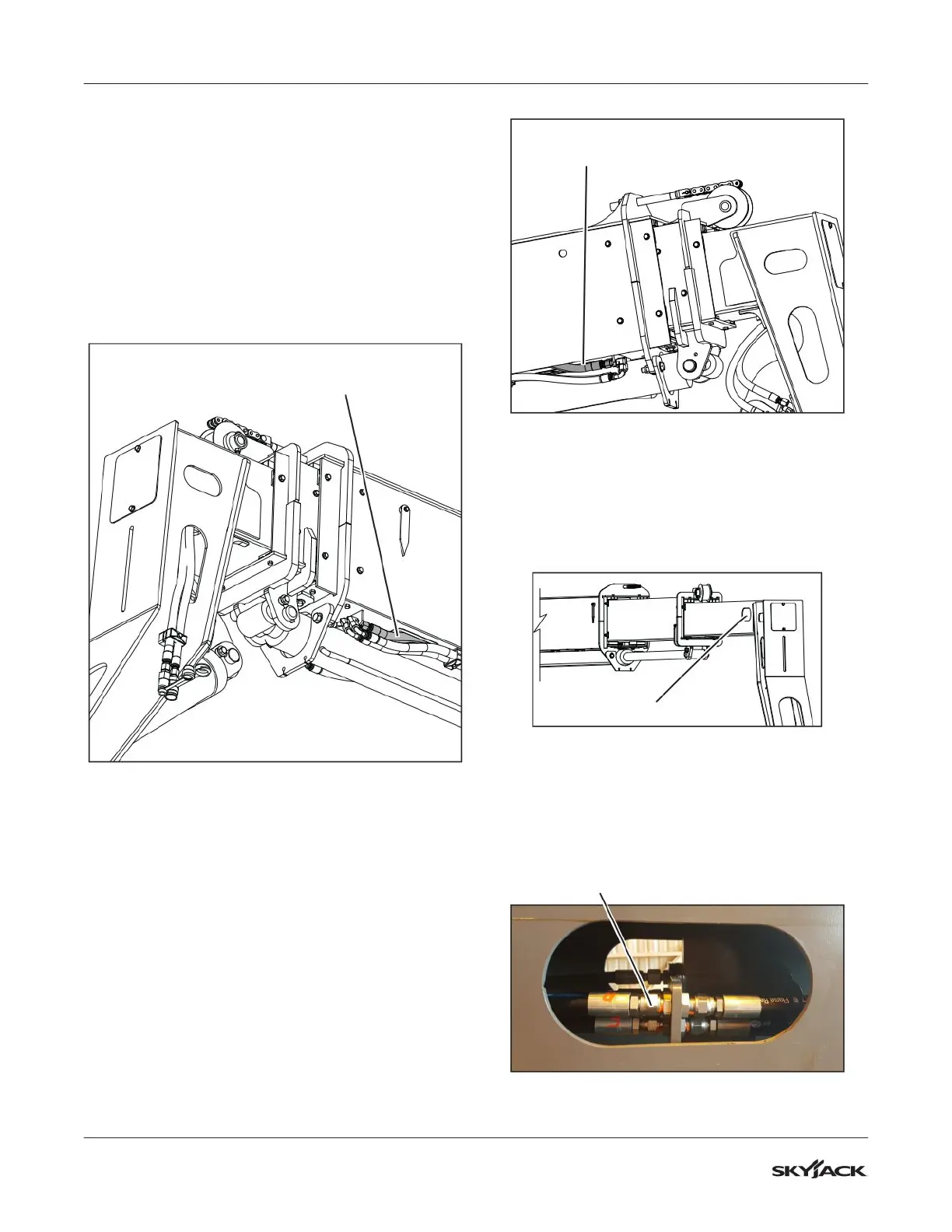

Connect hoses
at bulkhead
Figure 77 Auxilliary Hydraulics Hoses Connection at
Bulkhead
Connect hoses
at bulkhead
Figure 78 Fork Tilt Hoses Connection at Bulkhead
For SJ1044 TH/THS Only
5. Start engine and extend the boom approximately
3 feet to gain acces to side acces hole on fly
boom section.
Access Hole
Figure 79 Boom Side Access Hole
6. Shutdown engine and remove key from ignition
switch.
7. Connect hoses at the rear of bulkhead as shown
below.
Connect hoses
To Next Page
