Non-Routine Maintenance Section 5 – Procedures
5. Position the starter so the pinion is facing down.
6. Remove the nut and retaining washer securing
the harnesses with a 17 mm socket 24” long
extension, and then disconnect the harnesses
from the starter.
Engine Cable
Harness
To Alternator
To Battery
To Glow Plug
Harness
Nut and
Retaining
Washer

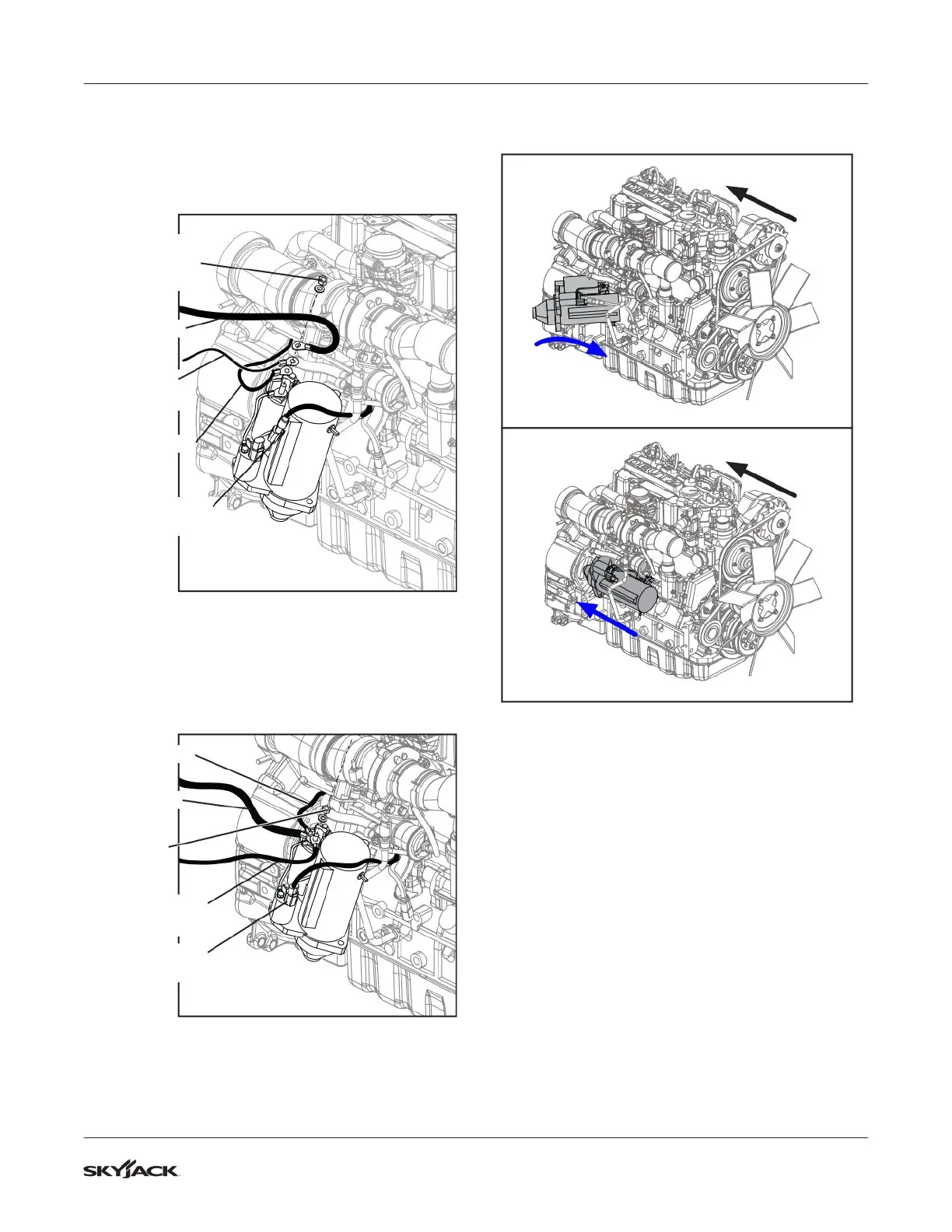

Figure 137 Harnesses Removal.
7. Discard defective/existing starter.
8. Connect all harnesses to the new starter stud
and secure them with the nut and washer (do not
tighten the nut).
Engine Cable
Harness
To Glow Plug
Harness
To Alternator
To Battery
Nut and
Retaining
Washer
Figure 138 Harnesses Installation.
9. Place starter on the engine flywheel/connection
housing.
Front of
Machine
Front of
Machine
Figure 139 Starter Installation.
10. Secure starter to the engine with the upper and
lower bolts.
11. Tighten nut securing the harnesses.
12. Connect battery.
13. Perform a full function test as outlined in Section
‘Function Tests’ of the operating manual.
