191
SJ1044 TH, SJ1044 THS, SJ1056 TH, SJ1056 THS, SJ1256 THS
230790ABA
Non-Routine Maintenance Section 5 – Procedures
Adjusting Tension in Hoses

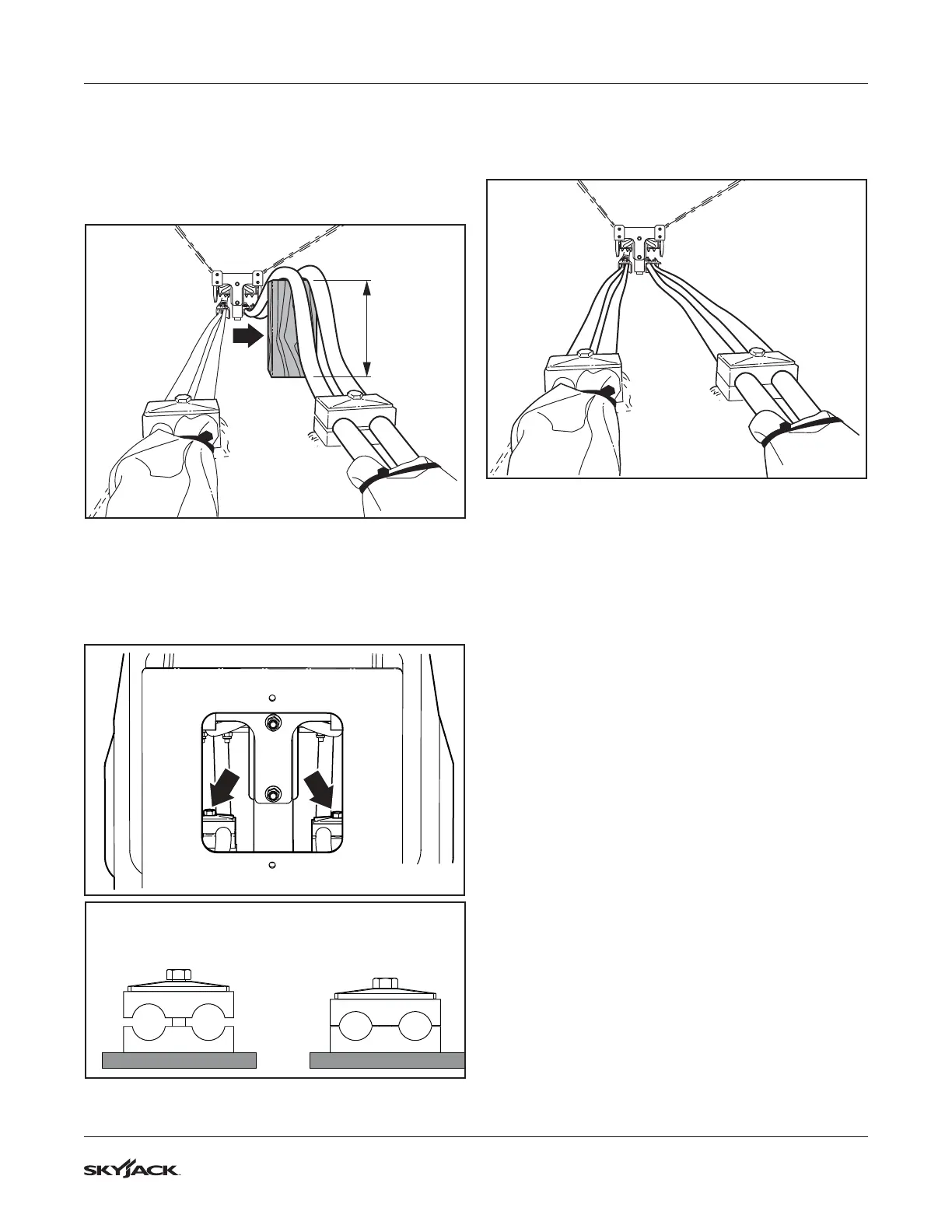

1. Through the front access hole, place a 2X4 cut
to 7 in (18 cm) long inside the boom section
underneath the two hoses. Reach in as far as
possible to place it.
M62329AA
7 in
(18 cm)
Figure 162 View Inside Front Access Hole
2. Pull the hoses tight over the block from the front.
Before tightening, ensure the bolts are 5/16’’ x
1-3/4’’, then tighten the hose clamp inside the
front access hole. Remove the wood block.
M62311AA
Figure 163
3. Start the machine and dead-head the auxiliary
or tilt function (depending which side is being
installed).
M62331AA
Figure 164 Install all access covers.
To Next Page
