196
SJ1044 TH, SJ1044 THS, SJ1056 TH, SJ1056 THS, SJ1256 THS
230790ABA
Section 5 – Procedures Non-Routine Maintenance

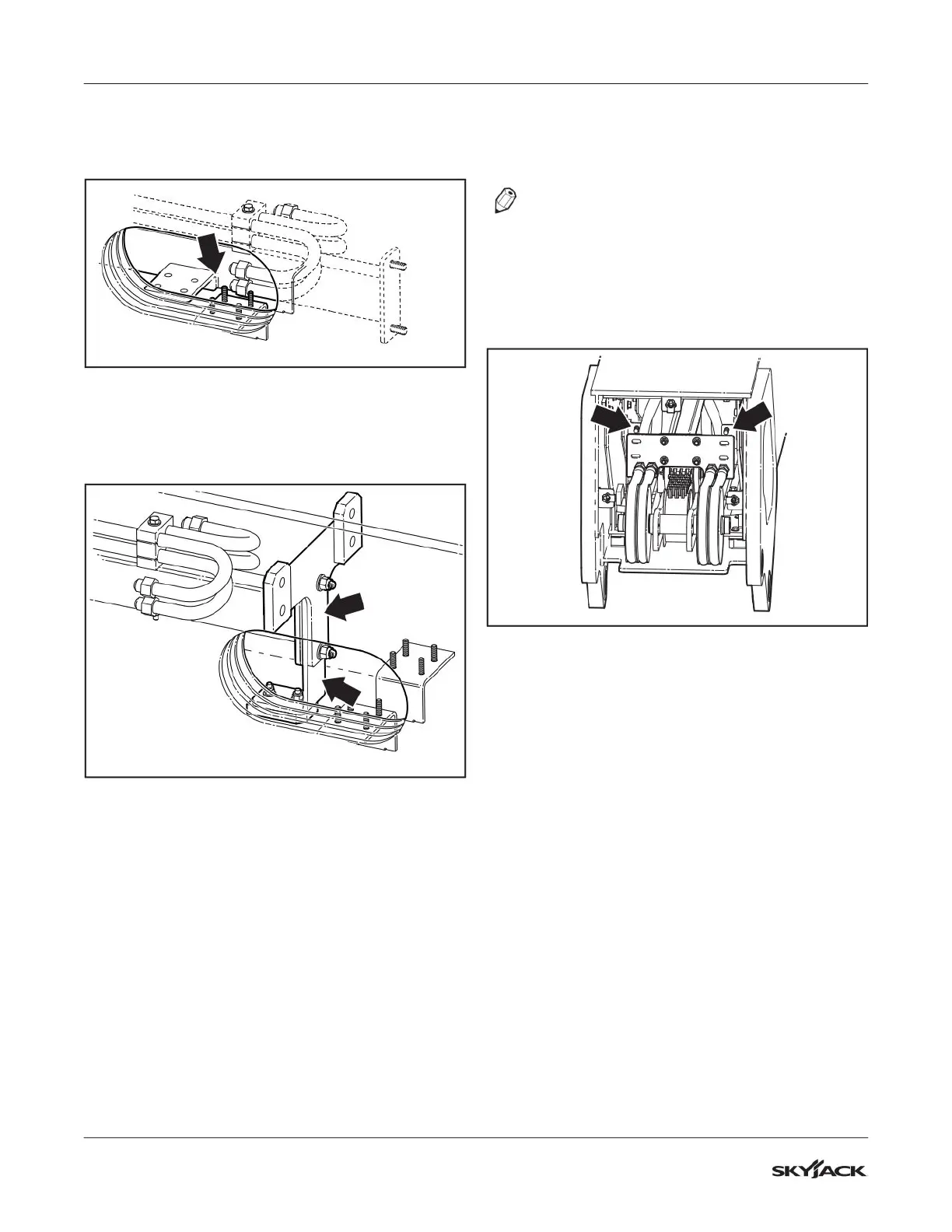

4. Slide the carrier assembly in until the cable track
mounts on the side of the carrier hit the mounts
inside the boom.
M62318AA
Figure 175
5. Pull the carrier assembly back slightly. Support
the end of it, then install both (T-shaped) upper
and lower guide brackets.
M62314AA
Figure 176
6. Push the carrier assembly the rest of the way in.
7. At the back of the machine, attach the hydraulic
hoses to the bulkhead plate. Make sure the hoses
are not twisted or crossed.
NOTE
Once connected, the hoses tend to pull the
carrier assembly towards the back of the
machine. In order to bolt the carrier bulkhead
plate to the mounts inside the boom, the carrier
assembly must be pulled forward.
M62317AA
To Next Page
