108
SJ3215, SJ3219
212508ADA
Base Section 5 – Procedures
4. Pull the pothole bar to allow access to the next
Rue Ring cotter pin.

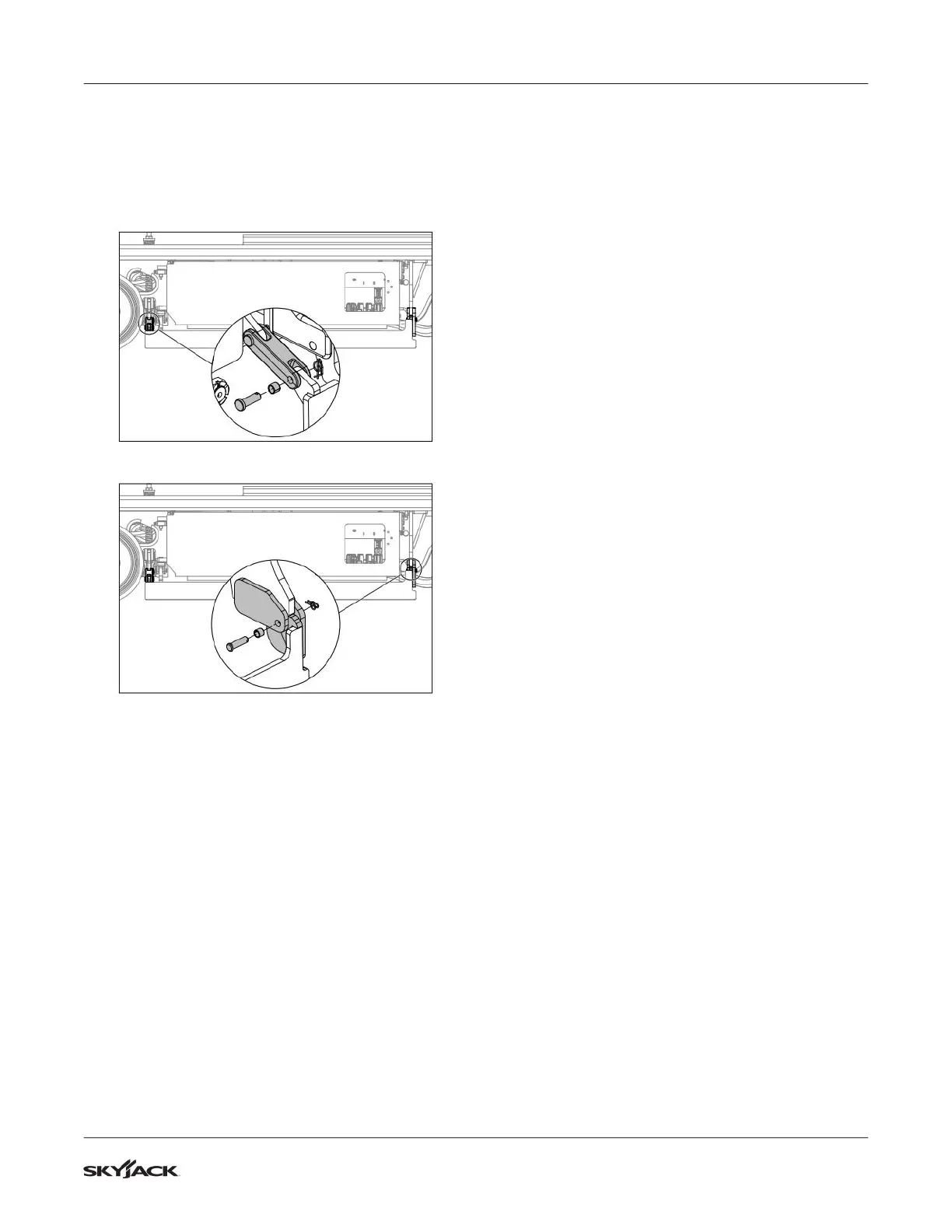

5. Remove the pins and hardware that connects the
pothole bar to the pivot point from the pothole
protection assembly and base weldment. Keep
the pins and hardware.
6. If replacing the pothole bar, remove and discard
the old pothole bar.
7. Install a new pothole bar.
8. Re-install the pins and hardware to the pivot
points on the pothole assembly and base.
Test the pothole bars
1. Raise and lower the scissor stack a few times to
make sure the pothole bars deploy correctly.
