Skyjack SJ3219 Service Manual

56
SJ3215, SJ3219
212508ADA
Section 3 – System Component Identification and Schematics Anti-Overrising Limit Switch Wiring (KC Only)

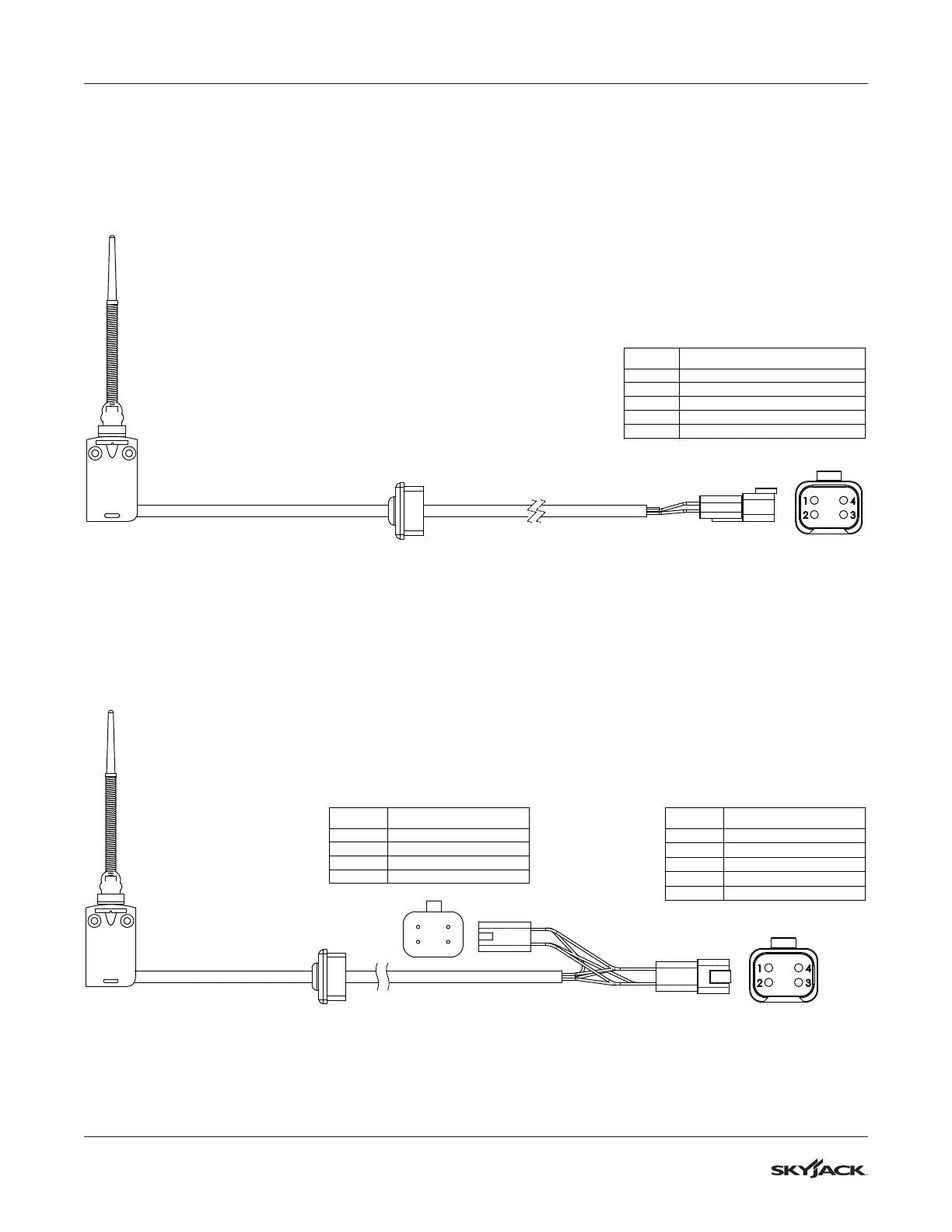

3.14 Anti-Overrising Limit Switch Wiring (KC Only)
M208038AA_M220080AA
Anti-Overrising Posts Limit Switches
Anti-Overrising Posts Limit Switches - Add 2 Posts
CAVITY COLOUR
1
BROWN
2 BLACK
3
BLUE
4 BLACK/WHITE
YELLOW/GREEN (CUT OFF)
CAVITY COLOUR
1
GREEN
2 BLACK/WHITE
3
WHITE
4
RED
YELLOW/GREEN (CUT OFF)
CAVITY COLOUR
1
GREEN
2 BLACK
3
WHITE
4
RED
3
4
1
2

Skyjack SJ3219 Specifications

General

Gradeability	25%
Power Source	Electric
Drive Motor	24V DC
Tire Type	Solid, non-marking
Lift Capacity	550 lbs
Machine Width	32 in
Machine Length	70 in
Drive Speed (Stowed)	2 mph
Drive Speed (Raised)	0.8 km/h
Turning Radius (Inside)	0 in (0 m)
Battery	4 x 6V
Working Height	25 ft
