Skyjack SJ3219 Service Manual

107
SJ3215, SJ3219
212508ADA
Section 5 – Procedures Base
5.3-4 Pothole Bar Replacement/Removal
for Servicing
Prepare the machine
1. Make sure the MEWP is on firm, level ground.
2. Chock or block the wheels to keep the MEWP
from rolling forward or backward.
Tools necessary
▪
Needle nose plier

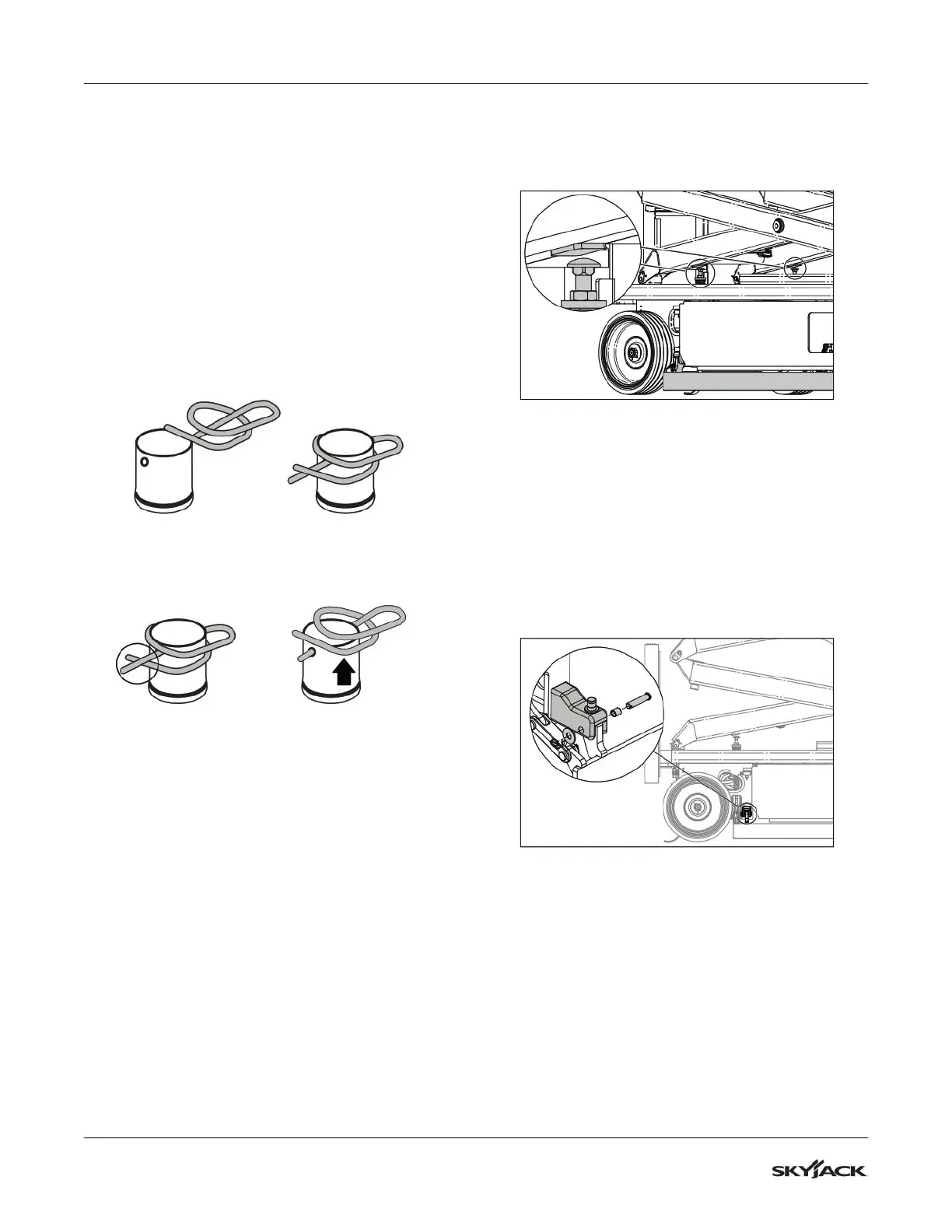

How to install or remove a Rue Ring
Optional
manual lock
Push up and
back to remove
Install into
hole
Automatic
lock
Installation Instructions
1. Raise the scissor stack until the pothole bars are
deployed and there is no tension on both pothole
plungers.
2. Remove the Rue Ring cotter pins and hardware
that connects the pothole bar to the hydraulic and
battery tray. Keep the pins and hardware.
3. Make sure the bushing is secured. Do an
inspection on the bushing for excessive wear.
Replace it if necessary.

Skyjack SJ3219 Specifications

General

Gradeability	25%
Power Source	Electric
Drive Motor	24V DC
Tire Type	Solid, non-marking
Lift Capacity	550 lbs
Machine Width	32 in
Machine Length	70 in
Drive Speed (Stowed)	2 mph
Drive Speed (Raised)	0.8 km/h
Turning Radius (Inside)	0 in (0 m)
Battery	4 x 6V
Working Height	25 ft
