Skyjack SJ3219 Service Manual

58
SJ3215, SJ3219
212508ADA
Section 3 – System Component Identification and Schematics Free-Wheeling Manifold MB2

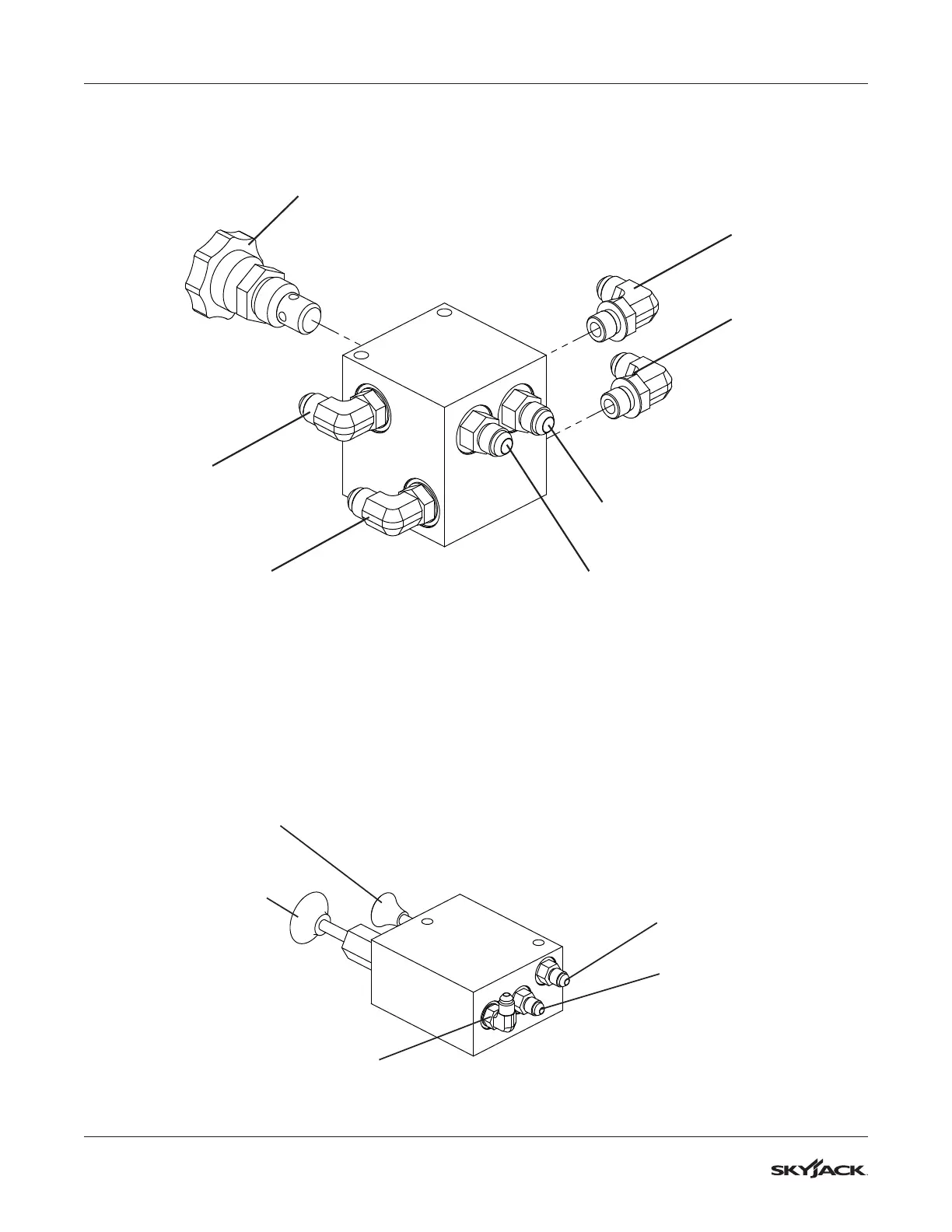

3.16 Free-Wheeling Manifold MB2
V2
Free-wheeling
Valve
To Batt. Side
Motor A
To Batt. Side
Motor B
To Hyd. Side
Motor A
To Hyd. Side
Motor B
To Main Manifold
4H-15
To Main Manifold
4H-16
V1
Auto Reset
Brake Override
P2
Brake Release
Hand Pump
To Batt. Side
Disc Brake
To Hyd. Side
Disc Brake
To Main Manifold
4H-17B
3.17 Brake Manifold MB4 (CE, AS & KC)
M138021AE_SJ321X_Service, M196578AD_BrakeMan

Skyjack SJ3219 Specifications

General

Gradeability	25%
Power Source	Electric
Drive Motor	24V DC
Tire Type	Solid, non-marking
Lift Capacity	550 lbs
Machine Width	32 in
Machine Length	70 in
Drive Speed (Stowed)	2 mph
Drive Speed (Raised)	0.8 km/h
Turning Radius (Inside)	0 in (0 m)
Battery	4 x 6V
Working Height	25 ft
