Skyjack SJ3219 Service Manual

A B C D E F G H
V
Z
Y
X
W
62
SJ3215, SJ3219
212508ADA

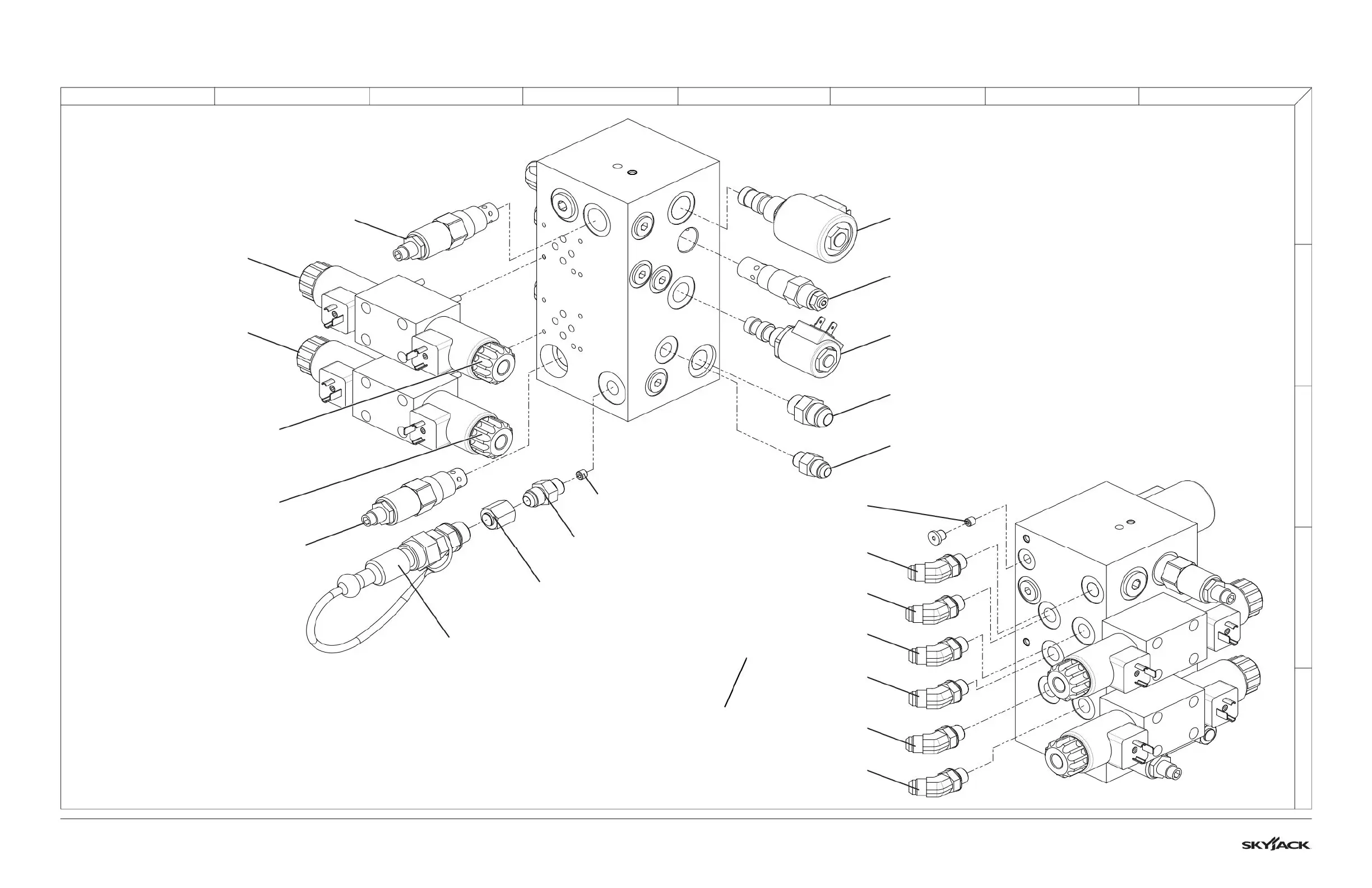

3.20 Main Manifold MB1
M208569AD2_Ports
R2-LIF
T
R1-SYSTEM
Quick Disconnect
(CE, AS & KC)
R1
System Relief Valve
System Pressure Cap
(ANSI/CSA)
Orifice Plug
System Pressure
Fitting
CB1
Counter Balance Valve
3H-14
Lift Valve
To Motor/Pump
To Hydraulic Tank
3H-17A
Brake Valve
R2
Lift Relief Valve
4H-24A
Left Steer Valve
4H-16
Forward Drive Valve
4H-15
Reverse Drive Valve
4H-23A
Right Steer Valve
4H-16
3H-14
4H-24
4H-23
4H-15
4H-16
To Free-Wheel Manifold
To Lower Cylinder
Holding Valve
4H-15
To Free-Wheel Manifold
4H-23A
To Right Steer Cylinder
4H-24A
To Left Steer Cylinder
R2-LIF
T
R1-SYSTEM
4H-17B
To Brake Release
(CE, AS & KC)
3H-17
To Pin Brake
(ANSI/CSA)
Lowering Orifice

Skyjack SJ3219 Specifications

General

Gradeability	25%
Power Source	Electric
Drive Motor	24V DC
Tire Type	Solid, non-marking
Lift Capacity	550 lbs
Machine Width	32 in
Machine Length	70 in
Drive Speed (Stowed)	2 mph
Drive Speed (Raised)	0.8 km/h
Turning Radius (Inside)	0 in (0 m)
Battery	4 x 6V
Working Height	25 ft
