Skyjack SJ3219 Service Manual

52
SJ3215, SJ3219
212508ADA
Section 3 – System Component Identification and Schematics Emergency Lowering Switch Wiring

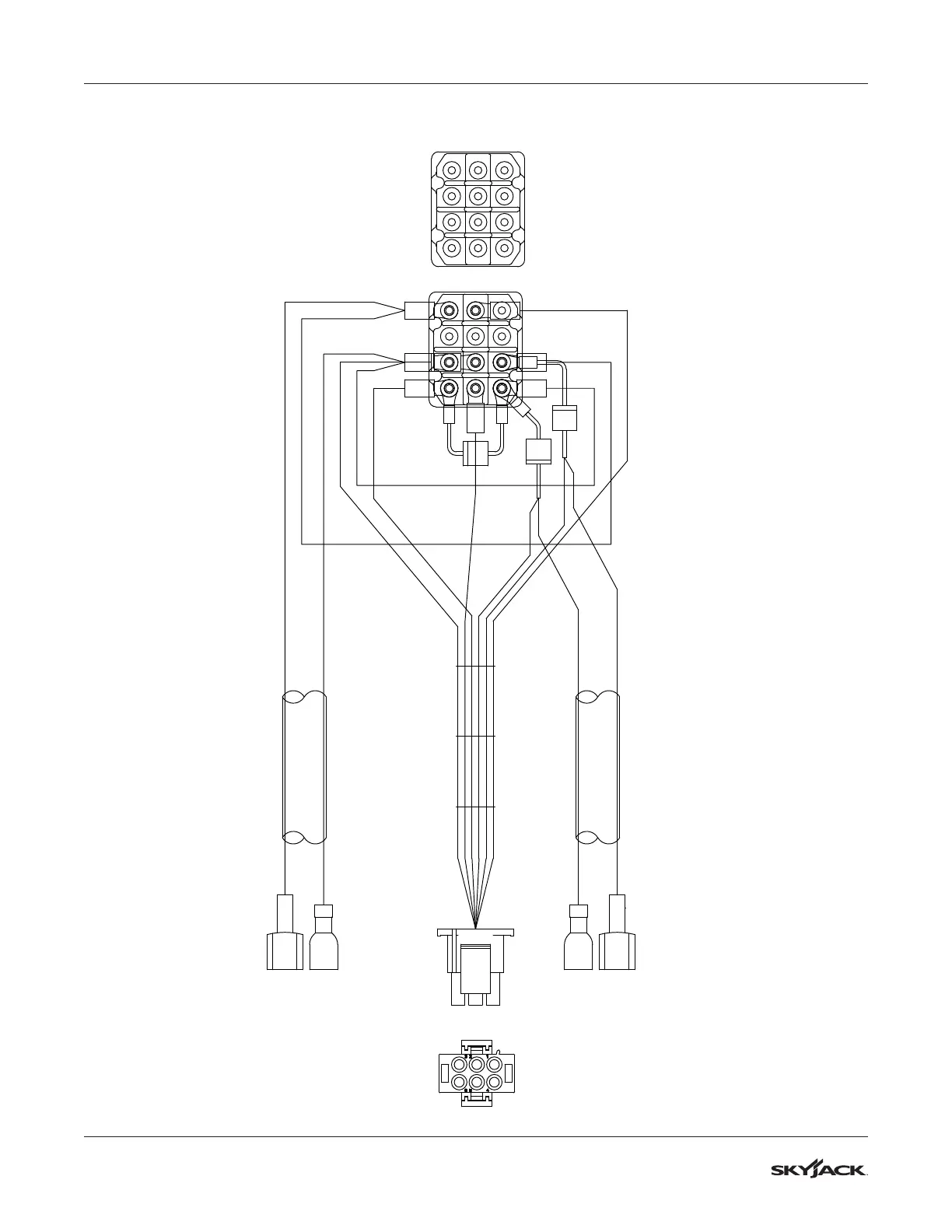

3.10 Emergency Lowering Switch Wiring
10 11 12
7 8 9
4 5 6
1 2 3
05
TO HOLDING VALVE SOLENOID
2H-13-2
SWITCH S51
EMERGENCY LOWERING
PIN 1 - 13B (ORANGE)
PIN 2 - 05 (PURPLE/BLACK)
PIN 3 - 13 (ORANGE)
PIN 4 - 13 (ORANGE)
PIN 5 - 98B (WHITE)
PIN 6 - 00D (WHITE)
PIN 7 - N/U
PIN 8 - N/U
PIN 9 - N/U
PIN 10 - 00D (WHITE)
PIN 11 - 00 (WHITE)
PIN 12 - N/U
D13-1
D13-2
13
D00C
00C
1
2
3
6
5
4
10 11 12
7 8 9
4 5 6
1 2 3
TO MAIN HARNESS
PIN 1 - 05 (PURPLE/BLACK)
PIN 2 - 98B (WHITE)
PIN 3 - 13B (ORANGE)
PIN 4 - 13 (ORANGE)
PIN 5 - 00C (WHITE)
PIN 6 - 00 (WHITE)
00D
00D
00D
13
13
13
00
98B
J9
13B
YELLOW
BLUE
TO HOLDING VALVE SOLENOID
2H-13-1
M212536AE

Skyjack SJ3219 Specifications

General

Gradeability	25%
Power Source	Electric
Drive Motor	24V DC
Tire Type	Solid, non-marking
Lift Capacity	550 lbs
Machine Width	32 in
Machine Length	70 in
Drive Speed (Stowed)	2 mph
Drive Speed (Raised)	0.8 km/h
Turning Radius (Inside)	0 in (0 m)
Battery	4 x 6V
Working Height	25 ft
