Pothole Limit Switch Wiring Section 3 – System Component Identification and Schematics

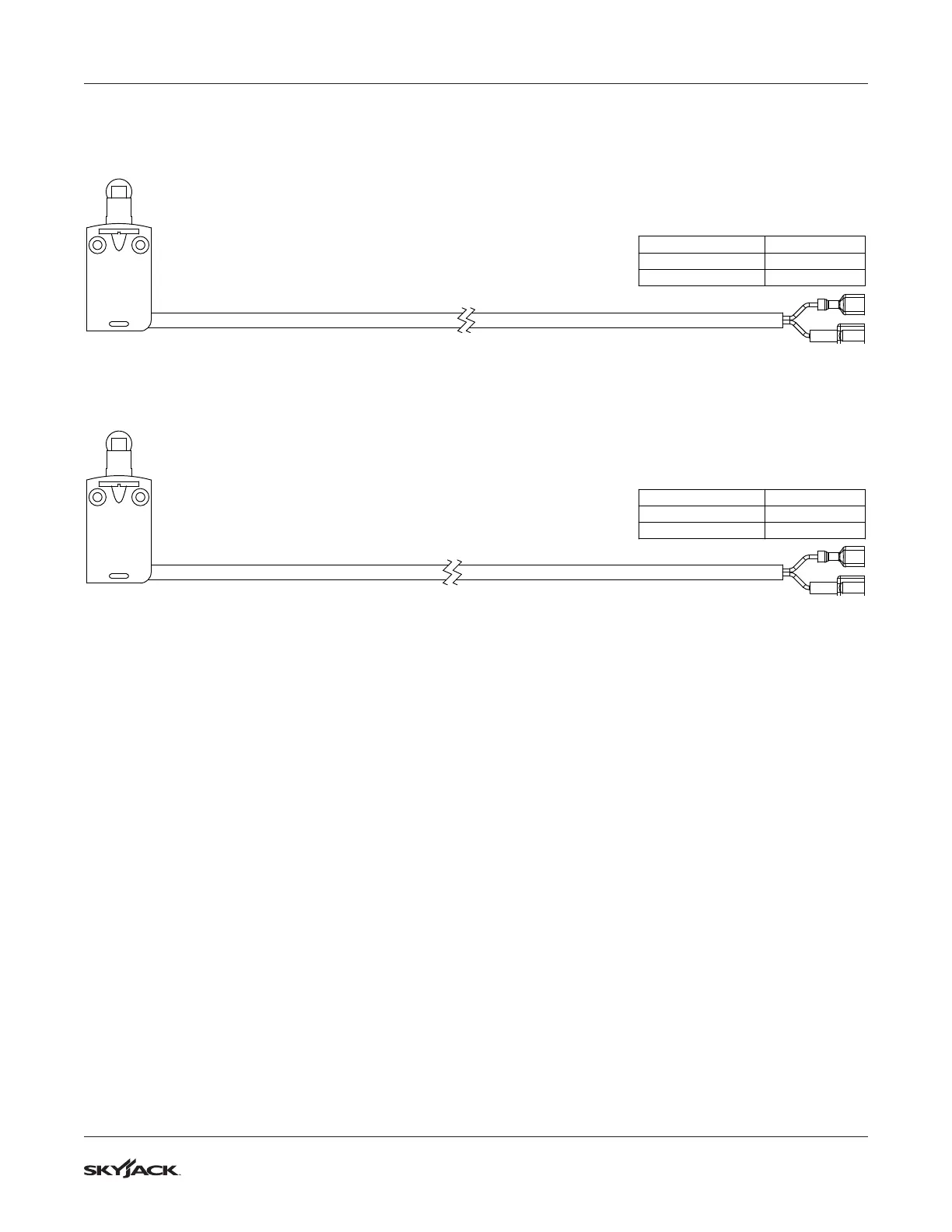

3.11 Pothole Limit Switch Wiring

COLOUR CIRCUIT NO.

BLACK/WHITE 72

BLACK

COLOUR CIRCUIT NO.

BLACK/WHITE 72

BLACK 910

Hydraulic Tray Side

Battery Tray Side

M210226AA_M210227AA
