Skyjack SJ3219 Service Manual

22
SJ3215, SJ3219
212508ADA
Section 1 – Scheduled Maintenance Scissors inspection

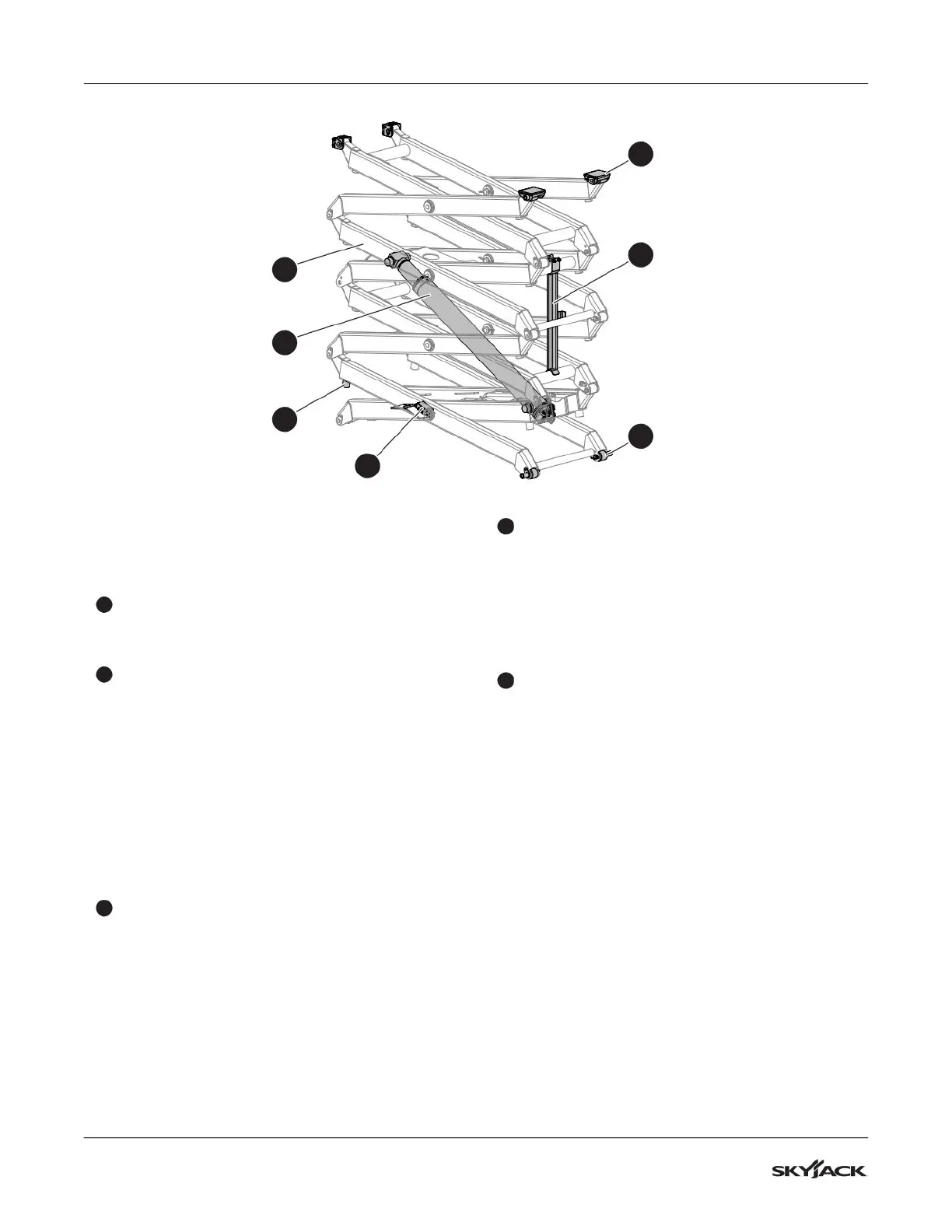

1.7 Scissors inspection
1. Raise the platform and deploy the maintenance
supports.
1
Maintenance support (B)
▪
Make sure that the maintenance supports are
correctly attached and show no visible damage.
2
Scissor assembly and bumpers (B)
▪
Make sure that the scissor assembly shows no
signs of visible damage, deformation, or cracks in
the weldments.
▪
Make sure all the pins and fasteners are correctly
installed.
▪
Make sure that the cables and wires have the
correct routing, and show no signs of wear and/or
physical damage.
▪
Make sure that the bumpers are correctly
attached and have no visible damage.
3
Sliders and rollers (B)
▪
Make sure that the sliders and rollers on the left
and right side of the MEWP are correctly attached.
▪
Make sure there is no visible damage.
▪
Make sure there is no dirt or blockages in the
slider’s and roller’s travel paths.
4
Lift cylinder (B)
▪
Make sure that the lift cylinders are correctly
installed.
▪
Make sure there are no loose or missing
fasteners.
▪
Make sure there is no indication of leaks or
damage.
5
Angle transducer (B)
▪
Make sure that the angle transducer is correctly
attached.
2. Fully lower the platform.
2
5
3
3
1
2
4

Skyjack SJ3219 Specifications

General

Gradeability	25%
Power Source	Electric
Drive Motor	24V DC
Tire Type	Solid, non-marking
Lift Capacity	550 lbs
Machine Width	32 in
Machine Length	70 in
Drive Speed (Stowed)	2 mph
Drive Speed (Raised)	0.8 km/h
Turning Radius (Inside)	0 in (0 m)
Battery	4 x 6V
Working Height	25 ft
