Skyjack SJ3219 Service Manual

21
SJ3215, SJ3219
212508ADA

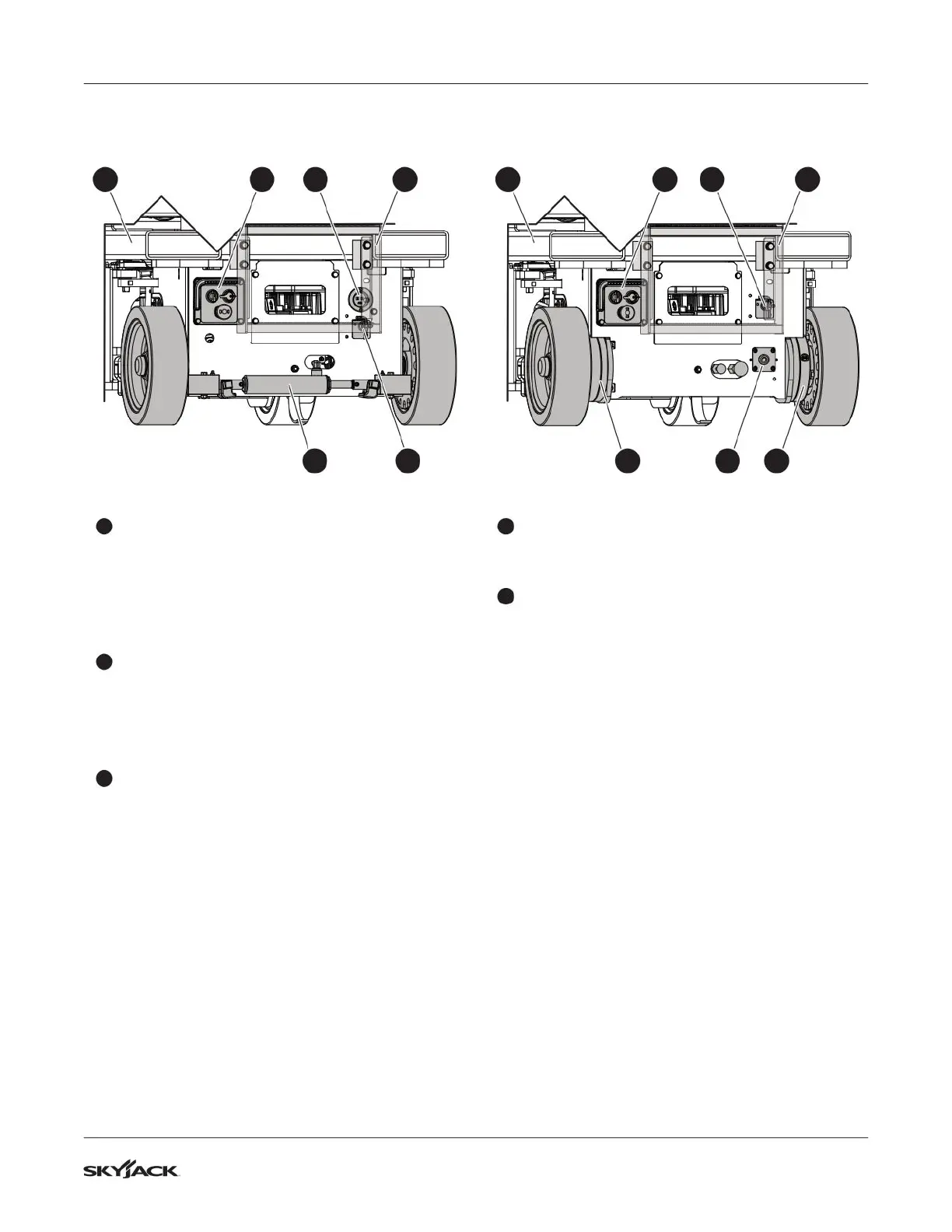

General inspections Section 1 – Scheduled Maintenance
1
Main power disconnect switch (B)
▪
Turn the main power disconnect switch to the off
position.
▪
Make sure the switch rotates and stays in the on
and off position.
▪
Make sure the cables are not loose.
2
Base control (B)
▪
Make sure there is no visible damage, and all the
switches operate correctly.
▪
AC power socket (B)
▪
Make sure there is no visible damage.
3
Brakes (B, C)
▪
B - Frequent/periodic/pre-delivery inspection
▪
Make sure there are no loose or missing
fasteners.
▪
Make sure there is no visible damage.
▪
C - Annual inspection
▪
Make sure that the disc or pin brakes show no
signs of wear and/or physical damage.
▪
Replace the disc or pin brakes if necessary.
4
Base weldment (B)
▪
Make sure that the base shows no signs of visible
damage, deformation, or cracks in the weldments.
5
Ladder (B)
▪
Make sure there are no loose or missing parts.
▪
Make sure there is no visible damage.
1 2 3
2 24 45 5
3 3
2 1
Example model SJ3219 ANSI/CSA Example model SJ3219 CE, AS & KC

Skyjack SJ3219 Specifications

General

Gradeability	25%
Power Source	Electric
Drive Motor	24V DC
Tire Type	Solid, non-marking
Lift Capacity	550 lbs
Machine Width	32 in
Machine Length	70 in
Drive Speed (Stowed)	2 mph
Drive Speed (Raised)	0.8 km/h
Turning Radius (Inside)	0 in (0 m)
Battery	4 x 6V
Working Height	25 ft
