Skyjack SJ3219 Service Manual

51
SJ3215, SJ3219
212508ADA

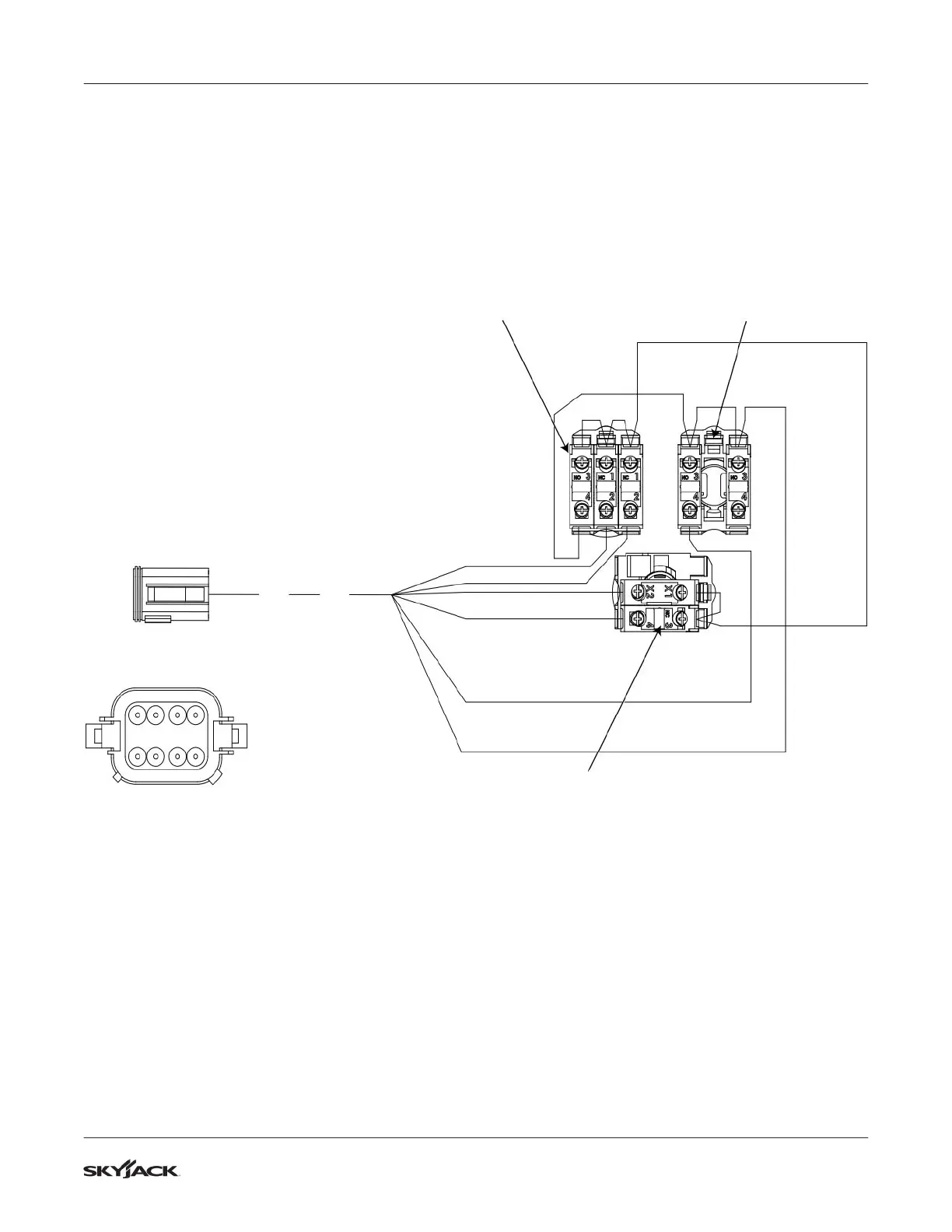

Base Control Wiring Section 3 – System Component Identification and Schematics
3.9 Base Control Wiring
M230108AB
10 10
10
05A 05A 05A
05A
05A
05
60
07
14A 13A
08C
FROM BASE CONTROLS
PIN 1 - 07 (RED)
PIN 2 - 05 (PURPLE/BLACK)
PIN 3 - 13A (ORANGE)
PIN 4 - 14A (BLACK)
PIN 5 - 10 (BLUE/WHITE)
PIN 6 - 08C (PURPLE/WHITE)
PIN 7 - N/C
PIN 8 - 60 (BLACK/RED/GREEN)
1 2 3 4
5678
BACK VIEW
DEUTSCH
S2
LOWER/NEUTRAL/RAISE
SWITCH
S10
OFF/PLATFORM/BASE
KEY SWITCH
S28
EMERGENCY STOP
SWITCH

Skyjack SJ3219 Specifications

General

Gradeability	25%
Power Source	Electric
Drive Motor	24V DC
Tire Type	Solid, non-marking
Lift Capacity	550 lbs
Machine Width	32 in
Machine Length	70 in
Drive Speed (Stowed)	2 mph
Drive Speed (Raised)	0.8 km/h
Turning Radius (Inside)	0 in (0 m)
Battery	4 x 6V
Working Height	25 ft
