50
SJ3215, SJ3219
212508ADA
Section 3 – System Component Identification and Schematics Base to Platform Control Cable

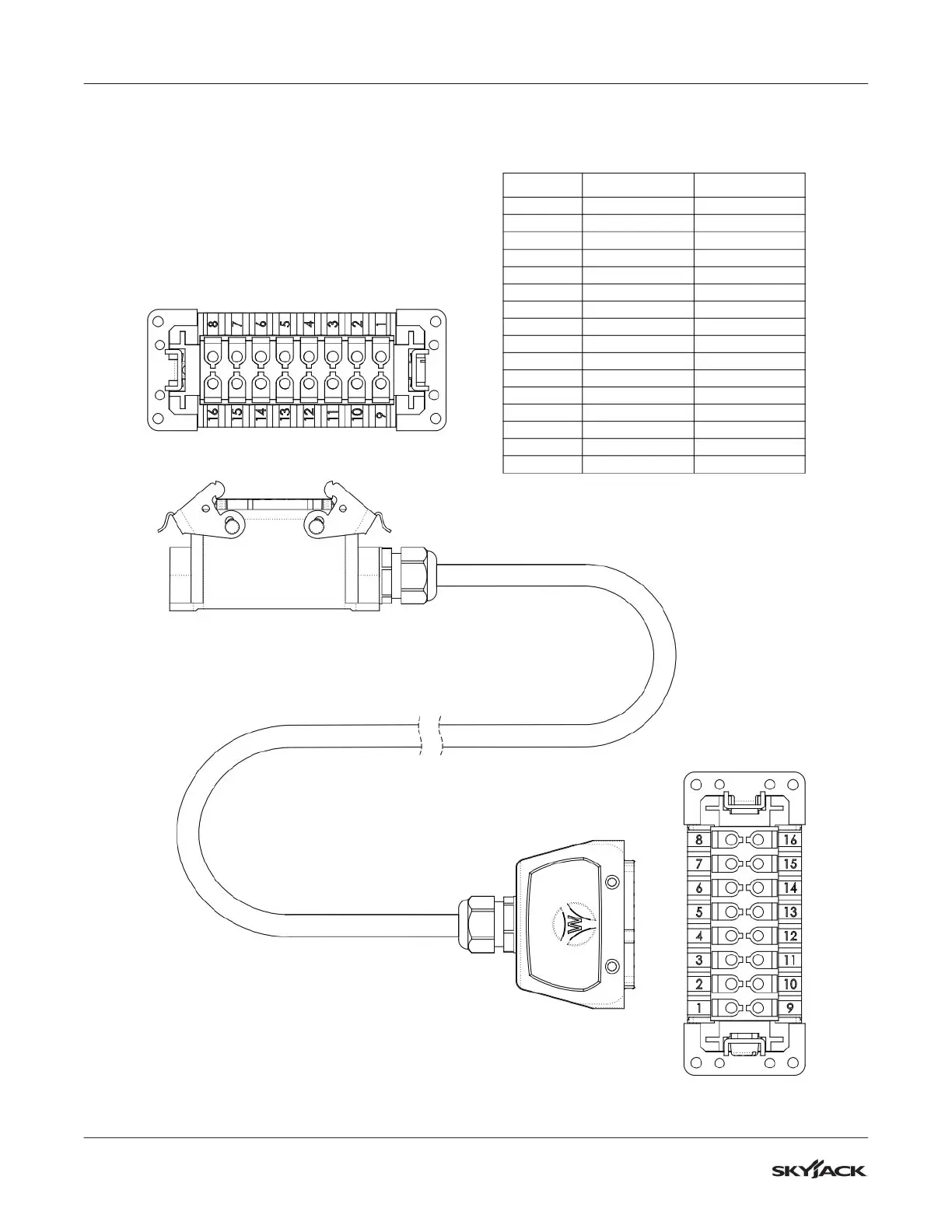

3.8 Base to Platform Control Cable
M212573AB
CAVITY NO. COLOUR CIRCUIT NO.
1 WHITE
00
2
BLUE
12
3 ORANGE 09
4 BLACK 08A
5 RED
07
6 BLUE/WHITE 08
7
GREEN/WHITE 49
8 GREEN 08B
9 NOT USED
10 WHITE/BLACK 00B
11
RED/BLACK 18
12 ORANGE/BLACK 59
13 GREEN/BLACK
-
14 BLUE/BLACK 24
15
BLACK/WHITE 23
16 RED/WHITE 60
