Section 3 – System Component Identification and Schematics Holding Valve and Pressure Transducer Harnesses
M211926AB_M211948AC

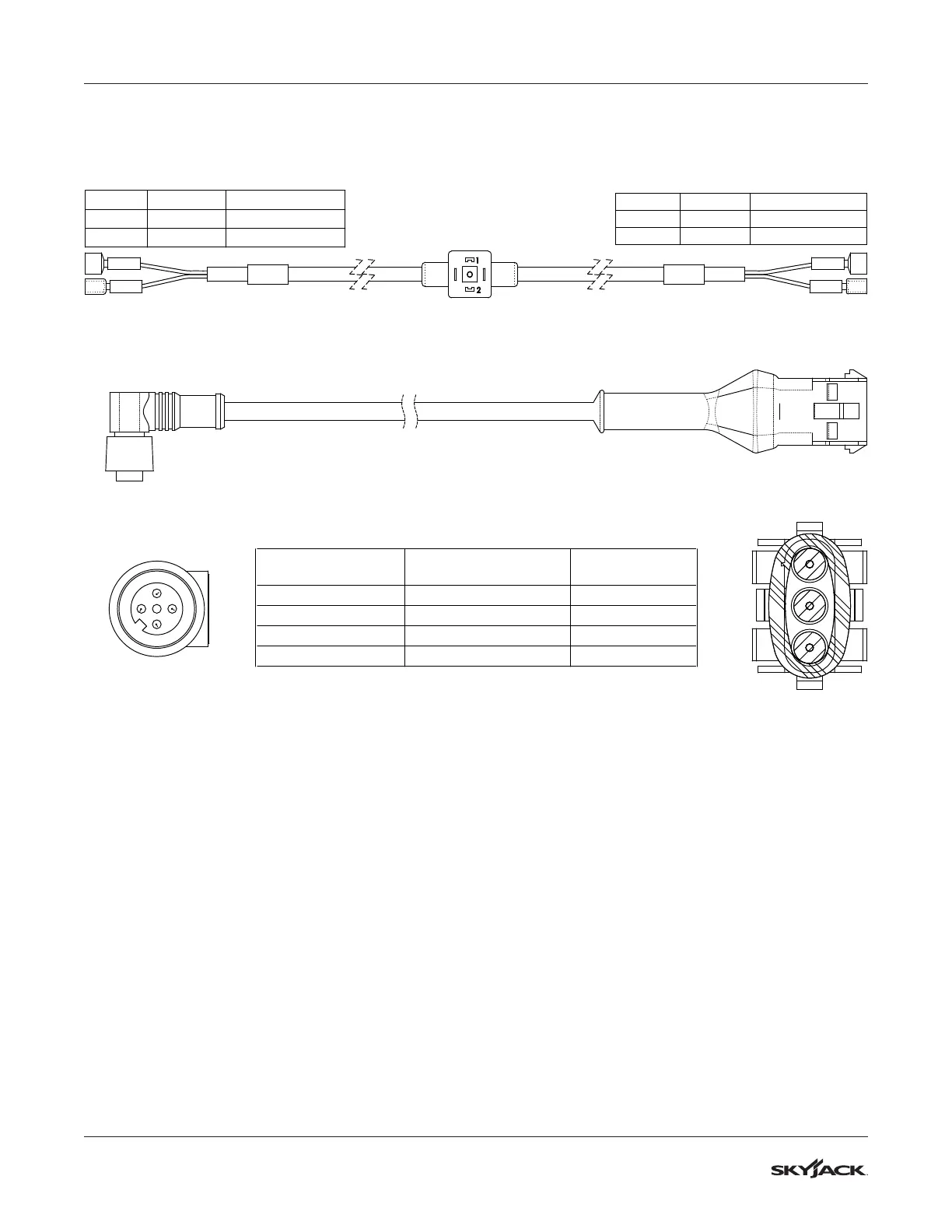

3.12 Holding Valve and Pressure Transducer Harnesses
Holding Valve Harness
LABEL TERMINAL
COLOUR
13
1
BLACK (+12 VDC)
00C 2
WHITE (GND)
LABEL TERMINAL
COLOUR
13
1
BLACK (+12 VDC)
00D 2
WHITE (GND)
Pressure Transducer Harness
M12 CONNECTOR MOLEX CONNECTOR WIRE COLOUR
PIN 1 PIN 1
BROWN
PIN 2 NOT USED
-
PIN 3 PIN 3
BLUE
PIN 4 PIN 2 BLACK
1
2
4
3
3
2
1
