SJ3215, SJ3219

212508ADA

Battery Management System Harness Section 3 – System Component Identification and Schematics

3.13 Battery Management System Harness

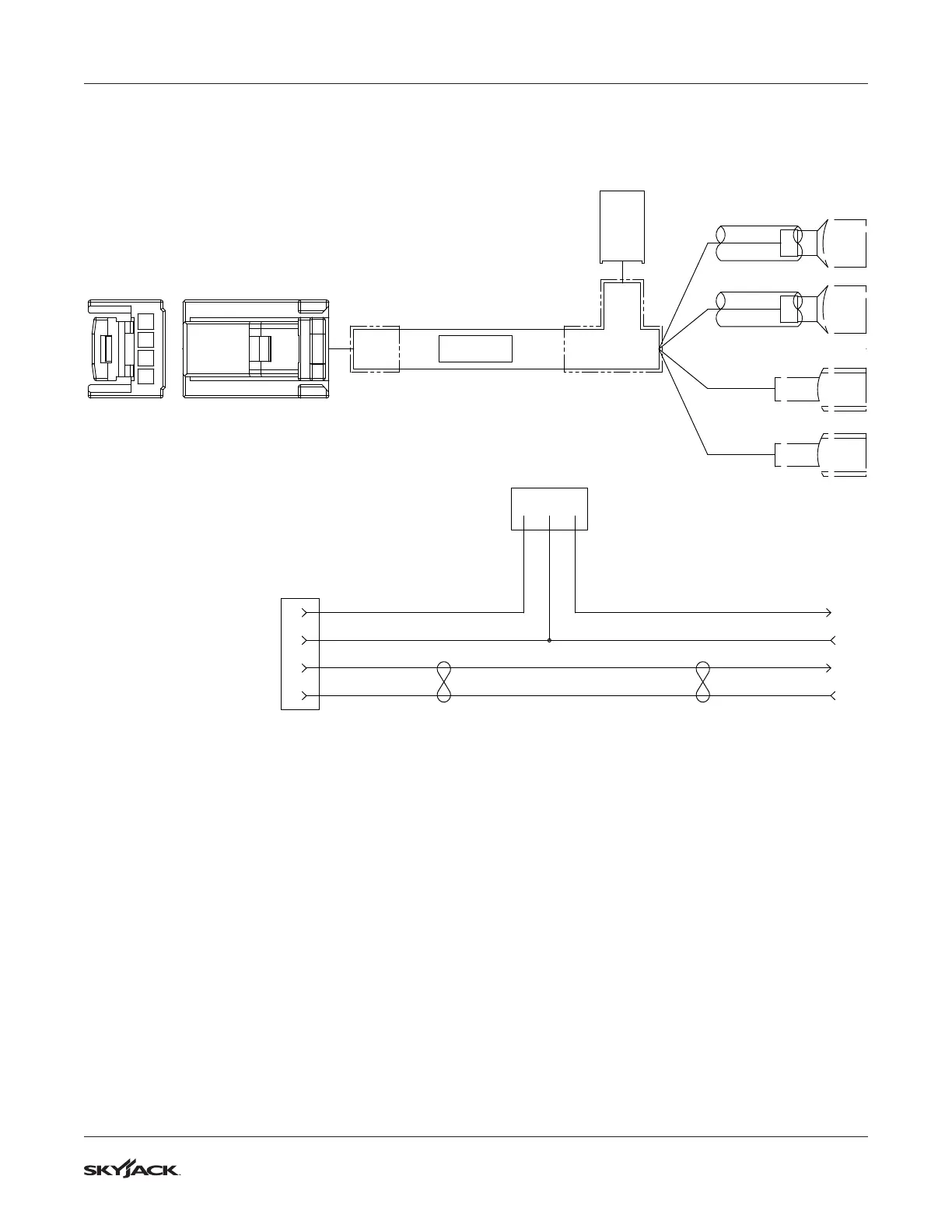

BMS Harness

CANH-YL-22

CANL-GN-22

09-BN-22

00-WH-22

TO AMPERAGE SENSOR

09-BN-22

00-BK-22

05B-RD-22

CANH-YL-22

CANL-GN-22

00-WH-22

05B-RD-22

VOLTAGE

REGULATOR

S00

PIN A - CANL - GN

PIN B - CANH - YL

PIN C - 00 - WHITE

PIN D - 09- BROWN

S00

05B

CANH

CANL
