Skyjack SJ3219 Service Manual

18
SJ3215, SJ3219
212508ADA

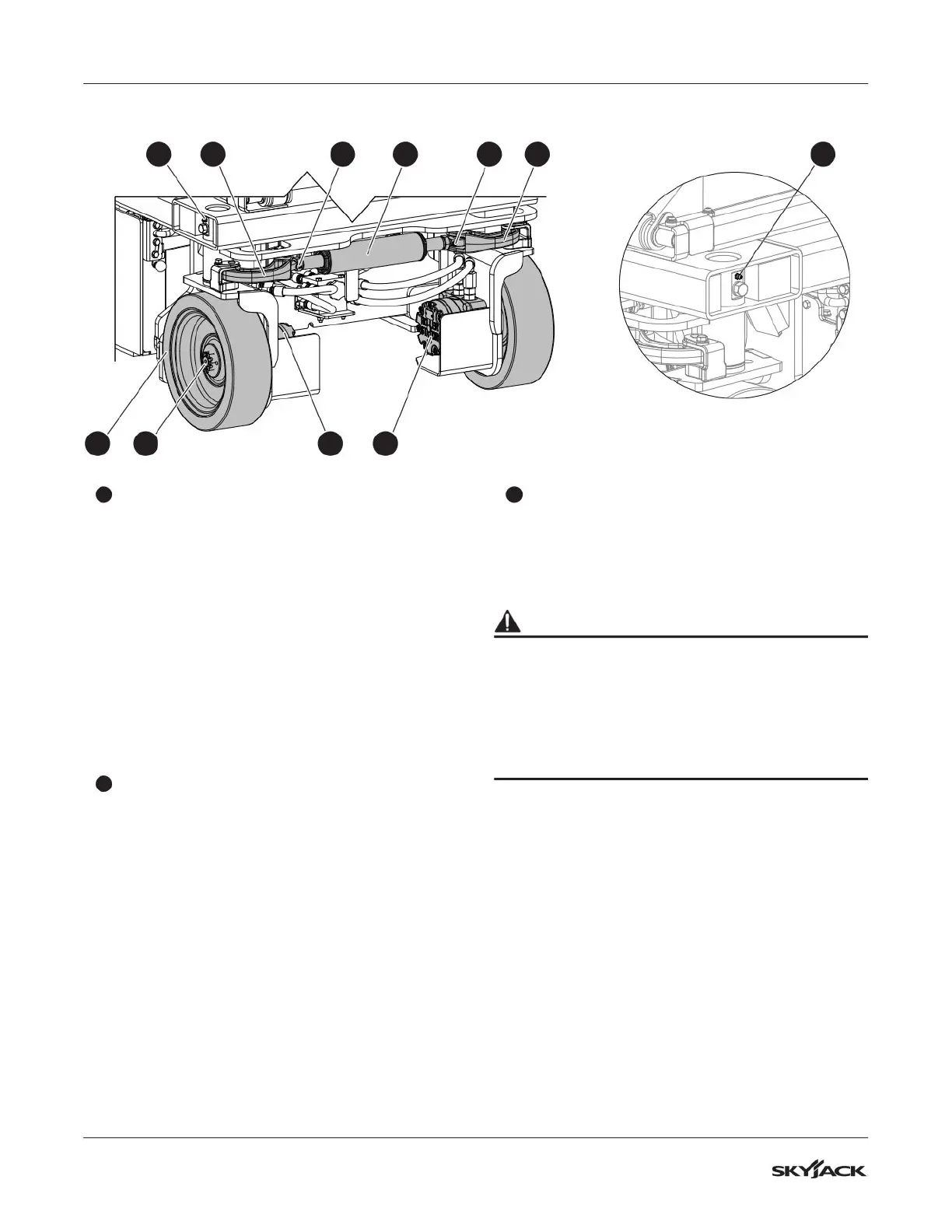

Section 1 – Scheduled Maintenance General inspections
1
Steer assembly (B)
▪
Steer cylinder assembly (B)
▪
Make sure that the steer cylinder assembly is
correctly installed.
▪
Make sure there are no loose or missing
fasteners.
▪
Make sure there is no visible damage.
▪
Steer linkages (B)
▪
Make sure there are no loose or missing
fasteners and lock-pins.
▪
Make sure that the steer linkages and
bushings are correctly attached.
▪
Make sure there is no visible damage.
2
Grease points (B)
▪
Make sure there are no loose or missing
fasteners and lock-pins.
▪
Make sure that the steer linkages and
bushings are correctly attached.
▪
Make sure there is no visible damage.
▪
Add grease if necessary.
3
Wheel/tire assembly (B, C)
A small amount of wear is permitted. But if any of the
wear or damage meets the criteria mentioned below,
the tire should be replaced.
WARNING
Do not use tires other than the tires that Skyjack
specifies for this MEWP. Do not mix different types
of tires or use tires that are not in good condition.
Only replace the tires with the same types that are
approved by Skyjack. The use of other tires can
make the MEWP less stable. If you do not obey,
there is a risk of death or serious injury.
Example model SJ3219
43 5 4
1 2 1 2212

Skyjack SJ3219 Specifications

General

Gradeability	25%
Power Source	Electric
Drive Motor	24V DC
Tire Type	Solid, non-marking
Lift Capacity	550 lbs
Machine Width	32 in
Machine Length	70 in
Drive Speed (Stowed)	2 mph
Drive Speed (Raised)	0.8 km/h
Turning Radius (Inside)	0 in (0 m)
Battery	4 x 6V
Working Height	25 ft
