V
W
Y
Z
L
M N
O
F
G
H
K
X
I
J
EDCBA
U
T
S
R
73

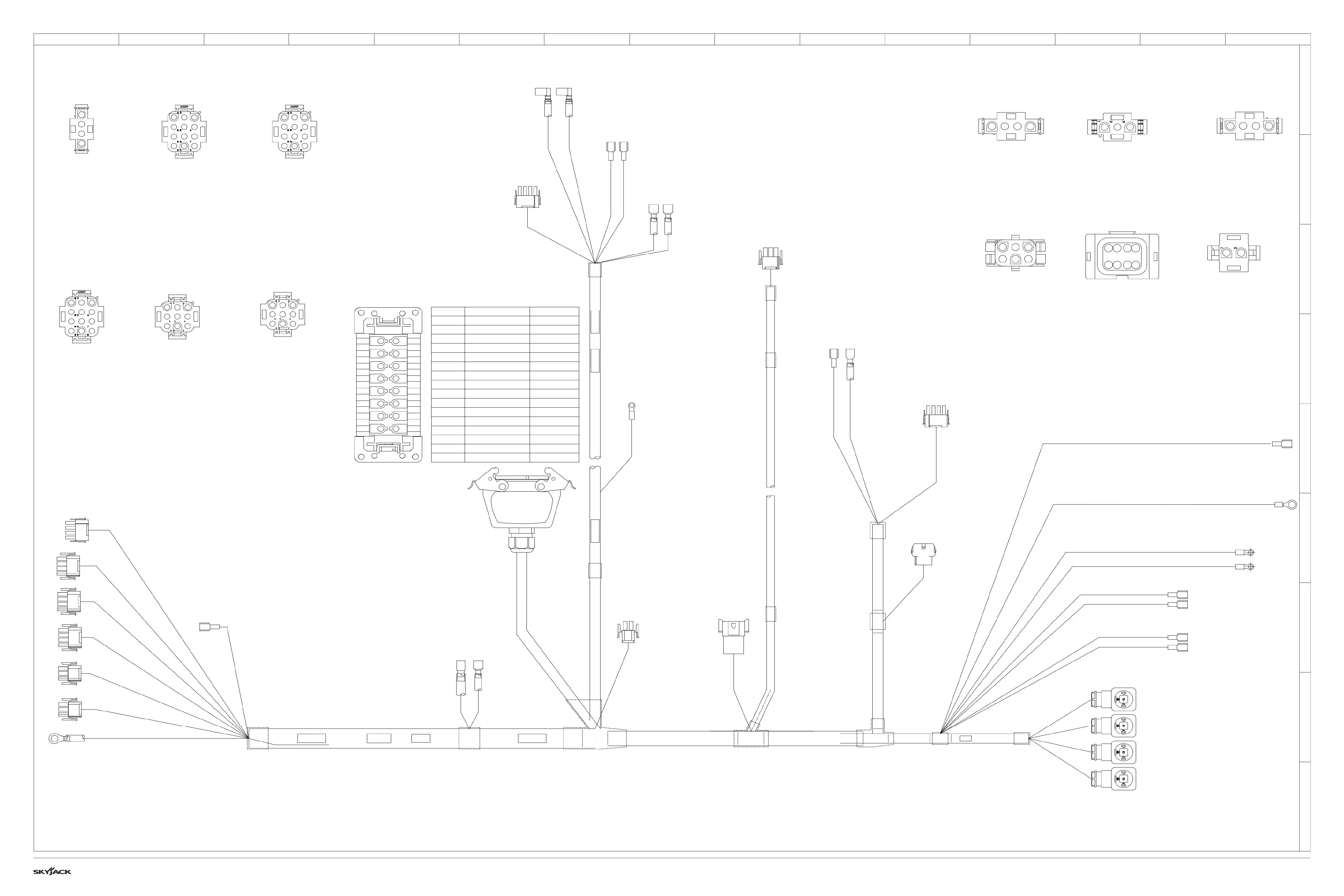

3.30 Main Harness
M224525AC
J1
J2
J5
RIGHT STEER VALVE
PIN 1 - 23A BLACK/WHITE
PIN 2 - 00 WHITE
FORWARD VALVE
PIN 1 - 16 WHITE/BLACK
PIN 2 - 00 WHITE
REVERSE VALVE
PIN 1 - 15 BLUE
PIN 2 - 00 WHITE
LEFT STEER VALVE
PIN 1 - 24A BLUE/BLACK
PIN 2 - 00 WHITE
GREY
BLACK
GREY
BLACK
TO BRAKE SOLENOID
17 - BLUE/RED
00 - WHITE
TO LIFT SOLENOID
14 - BLACK
00 - WHITE
14
00
17
00
TO MOTOR CONTACTOR
19 - WHITE/RED
00 - WHITE
TO B- TERMINAL ON
CONTROLLER
S910
S60
S902
05
TO MOTOR CONTACTOR
(LIVE SIDE)
03A - GREEN/PURPLE
TO CB1
03A - GREEN/PURPLE
05 - PURPLE/BLACK
03A
J6-2
J11
J12
98B
TO BATTERY DISCONNECT
98B - WHITE
TO FLASHING LIGHT
08C - PURPLE/WHITE
22 - ORANGE/BLUE
22
08C
TO HORN
49 - GREEN
00 - WHITE
910
TO BEEPER
910 - BLACK
29 - BLUE/YELLOW
29
TO ANTI-OVERRISING
08C - PURPLE/WHITE
J7
910
71
TO POTHOLE LIMIT SWITCH
910 - BLACK
71 - BLUE/RED
S00-1
S49
J9
8
7
6
5
4
3
2
19
10
11
12
13
14
15
16
J10
BACK VIEW
PIN NO. COLOUR CIRCUIT NO.
1 WHITE 00
2
BLUE
12
3 ORANGE 09
4
BLACK 08A
5
RED 07
6
BLUE/WHITE
08
7
GREEN/WHITE
49
8 GREEN 08B
9 NOT USED
10
WHITE/BLACK
00B
11
RED/BLACK
18
12
ORANGE/BLACK
59
13
GREEN/BLACK
TIED BACK
14
BLUE/BLACK
24
15
BLACK/WHITE
23
16
RED/WHITE
60
S08C
TO TELEMATICS
08C - PURPLE/WHITE
S902-1
S00
03A
1
2
3
TO PRESSURE TRANSDUCER
PIN 1 - 910 BLACK
PIN 2 - 60A BLACK/RED/GREEN
PIN 3 - 902 WHITE
J7
BACK VIEW
1
2
3
4
5
6
TO EMERGENCY LOWERING
PIN 1 - 05 - PURPLE/BLACK
PIN 2 - 98B - WHITE
PIN 3 - 13B - ORANGE
PIN 4 - 13 - ORANGE
PIN 5 - 00C - WHITE
PIN 6 - 00 - WHITE
1
2
3
6
5
4
J9
BACK VIEW
1
2
3
4
TO SCREEN/EZ-CAL
PIN 1 - (+) BLACK
PIN 2 - Rx RED
PIN 3 - Tx GREEN
PIN 4 - 902 WHITE
J6-2
BACK VIEW
DEUTSCH
J11
BACK VIEW
TO BASE CONTROLS
PIN 1 - 07 - RED
PIN 2 - 05 - PURPLE/BLACK
PIN 3 - 13A - ORANGE
PIN 4 - 14A - BLACK
PIN 5 - 10 - BLUE/WHITE
PIN 6 - 08C - PURPLE/WHITE
PIN 7 - N/U
PIN 8 - 60 - BLACK/RED/GREEN
3
4
1 2
6
5
8
7
1
2
TO CHARGER CUTOUT
PIN 1 - 37 GREEN/WHITE
PIN 2 - 08C PURPLE/WHITE
J12
BACK VIEW
TO ANGLE TRANSDUCER
PIN 1 - 910 BLACK
PIN 2 - 902 WHITE
PIN 3 - 28A GREEN/RED
PIN 4 - 28 GREEN/RED
J8
BACK VIEW
1
3
2
4
J6-1
BACK VIEW
1
2
3
4
TO P6 ON EZ-LIFT MODULE
PIN 1 - (+) BLACK
PIN 2 - Rx RED
PIN 3 - Tx GREEN
PIN 4 - 902 WHITE
1
2
10
11
12
3
9
6
8
5
7
4
TO P5 ON EZ-LIFT MODULE
PIN 1 - 19 WHITE/RED
PIN 2 - 16 WHITE/BLACK
PIN 3 - 15 BLUE
PIN 4 - 17 BLUE/RED
PIN 5 - 14 BLACK
PIN 6 - 24A BLUE/BLACK
PIN 7 - N/U
PIN 8 - 23A BLACK/WHITE
PIN 9 - N/U
PIN 10 - N/U
PIN 11 - N/U
PIN 12 - 13 ORANGE
J5
BACK VIEW
1
2
10
11
12
3
9
6
8
5
7
4
TO P4 ON EZ-LIFT MODULE
PIN 1 - 13B ORANGE
PIN 2 - N/U
PIN 3 - N/U
PIN 4 - 13A ORANGE
PIN 5 - 14A BLACK
PIN 6 - N/U
PIN 7 - 71 BLUE/RED
PIN 8 - N/U
PIN 9 - N/U
PIN 10 - 37 GREEN/WHITE
PIN 11 - N/U
PIN 12 - N/U
J4
BACK VIEW
1
2
10
11
12
3
9
6
8
5
7
4
TO P3 ON EZ-LIFT MODULE
PIN 1 - 08C PURPLE/WHITE
PIN 2 - 08 BLUE/WHITE
PIN 3 - 18 RED/BLACK
PIN 4 - N/U
PIN 5 - 10 BLUE/WHITE
PIN 6 - 12 BLUE
PIN 7 - 09 ORANGE
PIN 8 - 23 BLACK/WHITE
PIN 9 - 24 BLUE/BLACK
PIN 10 - N/U
PIN 11 - N/U
PIN 12 - 08A BLACK
J3
BACK VIEW
1
2
3
4
5
6
8
7
9
TO P2 ON EZ-LIFT MODULE
PIN 1 - N/U
PIN 2 - 28 GREEN/RED
PIN 3 - N/U
PIN 4 - 60A BLACK/RED/GREEN
PIN 5 - 28A GREEN/RED
PIN 6 - N/U
PIN 7 - 910 BLACK
PIN 8 - 00C WHITE
PIN 9 - 22 ORANGE/BLUE
J2
BACK VIEW
1
2
3
4
5
6
8
7
9
TO P1 ON EZ-LIFT MODULE
PIN 1 - 08B GREEN
PIN 2 - 59 ORANGE/BLACK
PIN 3 - 00B WHITE/BLACK
PIN 4 - N/U
PIN 5 - N/U
PIN 6 - N/U
PIN 7 - N/U
PIN 8 - 60 RED/WHITE
PIN 9 - 29 BLUE/YELLOW
J1
BACK VIEW
08C
J10
J4
J3
J8
00
J6-1
00
49
08C
00
19
