Skyjack SJ61T Service Manual

Telescopic Boom Series
Models SJ61T & SJ66T
194312
December 2007 Page 173
Section 5 - Procedures Service and Maintenance
Fly Boom Section Installation
Procedure:
1. Attach two lifting slings to the y boom. Using
suitable lifting equipment, slide it slowly into the
nose of the mid boom. Be careful not to damage
the wear pads.
2. When it is about 1/3 of the way in, install the bottom
wear pad. Apply Loctite 242 or 243 to the wear
pad fasteners.
3. Place a suitable stand under the end of the boom.
Lower it onto the stand and remove one lifting
sling.
4. Continue sliding the boom all the way in until the
holes in the boom tip and the e-chain support
bracket line up.
5. Install the top and side wear pads and shims in the
mid boom nose. Apply Loctite 242 or 243 to the
wear pad fasteners.
6. Install the fasteners for cable/hose tube support in
the y boom. Connect the platform level hydraulic
hoses.

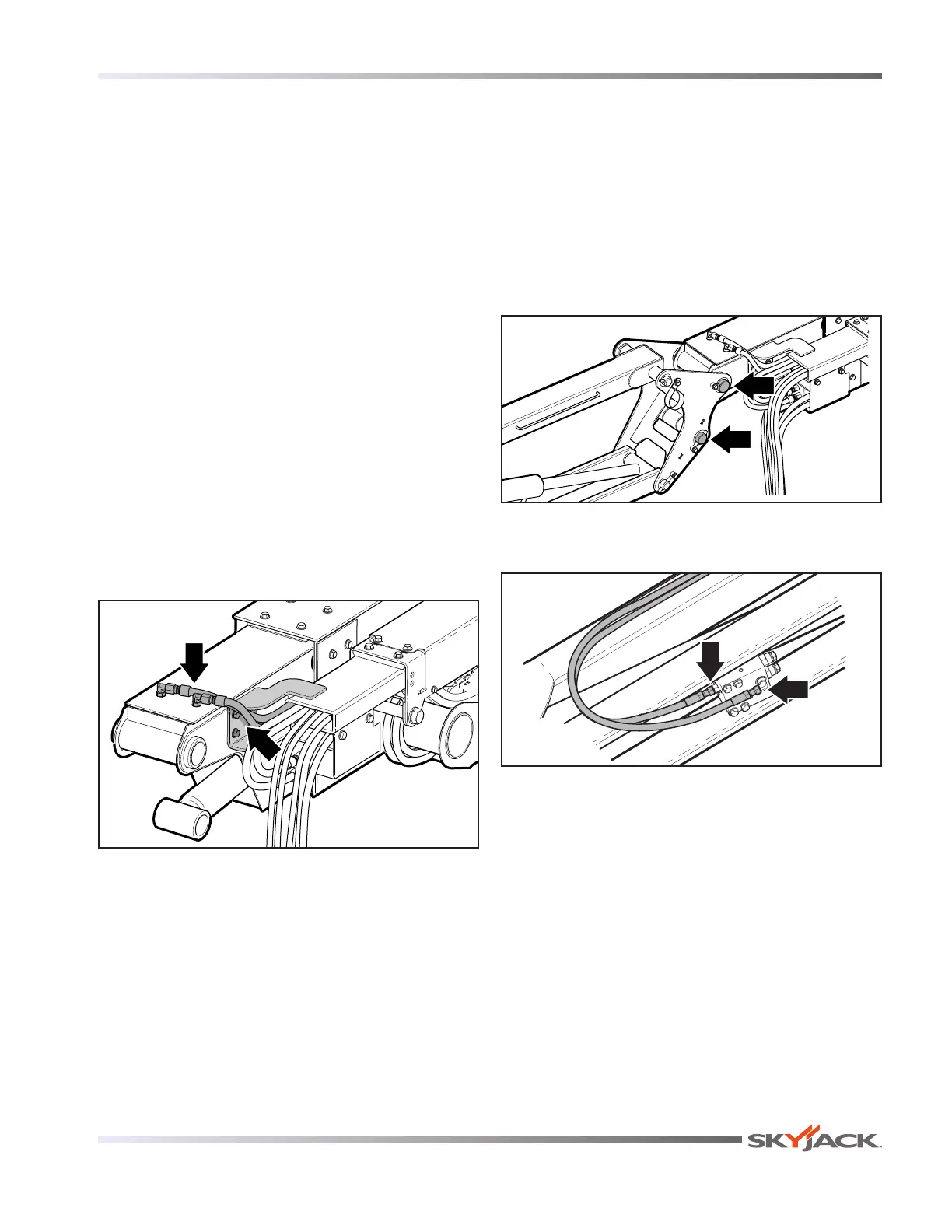

M62030AA
Platform Level Hoses and Cable/hose Tube Support
Platform and Jib Boom Installation
For torque specications, refer to Table 2.2 Aerial
Platform Torque Specications on page 28.
Procedure:
1. Connect lifting slings to the jib assembly.
2. Using suitable lift equipment, move it into position
and insert the jib pin and slave cylinder pin. Insert
the keeper pins.
M62020AA
Jib and Slave Cylinder Pins
3. Connect the hydraulic hoses for the jib cylinder.
M62250AA
Jib Cylinder Hoses
