Smart Electronic CX01 - Connect TV Set; Connect Home Cinema System (Optional)

Installation of smart CX01
smart CX01 19
looped through from input LNB IN (see section “LNB IN / OUT Loop Through
(Loop Standby)”, page 63).

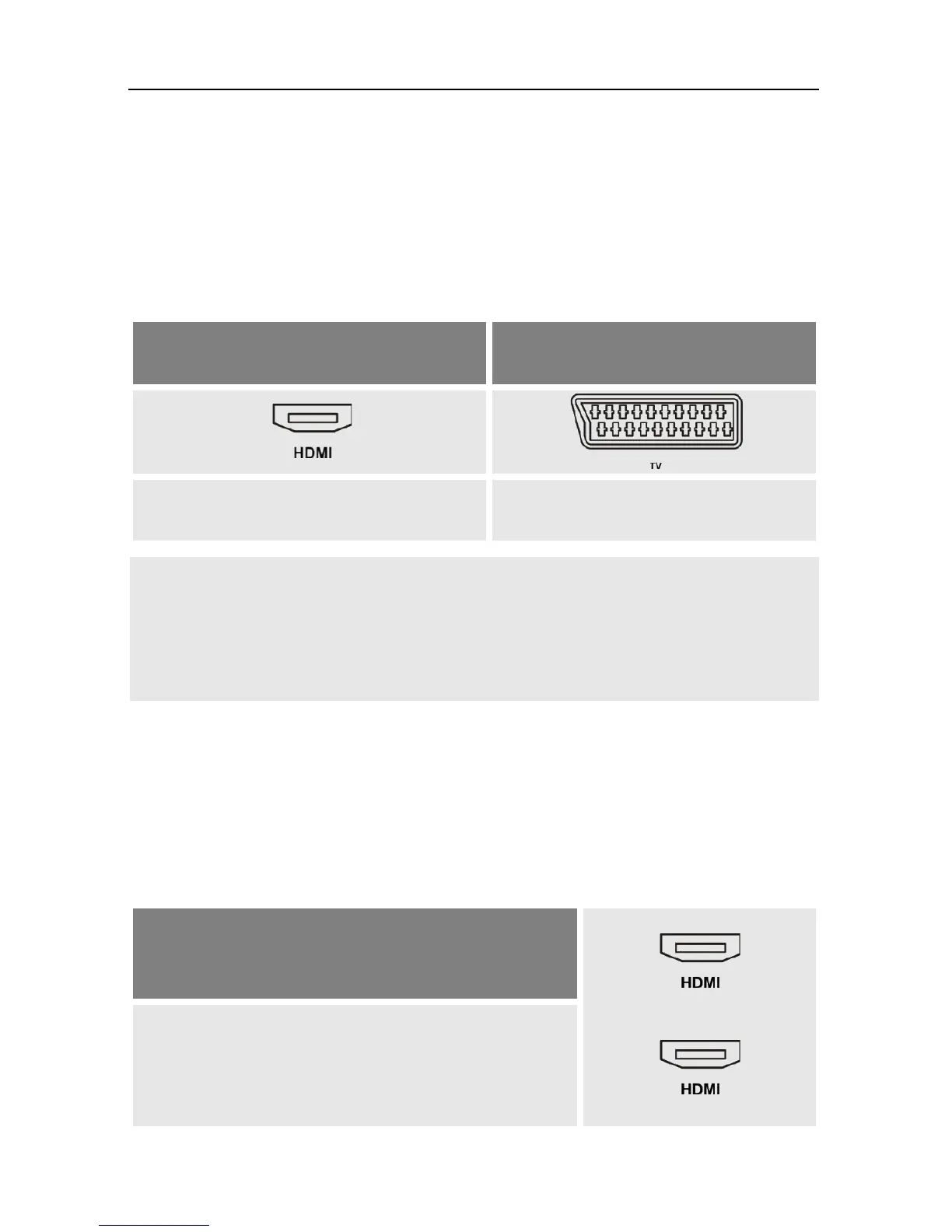

4.3 Connect TV Set
As stated in the connection scheme, the smart CX01 offers various possibilities
to connect TV set and receiver. The possibilities applicable to you depend on
the connection possibilities of your TV set.
Am Fernsehgerät ist ein HDMI-
Anschluss vorhanden.
Am Fernsehgerät ist kein HDMI-
Anschluss vorhanden:
 Fernseher und Receiver mit einem
HDMI-Kabel verbinden.
 Fernseher und Receiver mit einem
Scart-Kabel verbinden.

 If your TV set offers both possibilities then always choose
connection via HDMI cable.
This ensures best possible audio and video quality with
digital signals.
4.4 Connect Home Cinema System (Optional)
To improve audio playback, you can connect to the smart CX01 - additionally to
the TV set - also a multichannel home cinema system or a hi-fi system. There are
various possibilities for connection. Your type of connection depends on the
connection possibilities of your home cinema system.
a.
Your home cinema system is able to loop
through an HDMI signal, i.e. HDMI connection
for receiver and HDMI connection for TV set.
Receiver
TV set
 Connect the home cinema system and the
receiver by using an HDMI cable as well as
home cinema system and TV set by using an
HDMI cable.
