Basic information about the device
30
Positioning unit (inside the scanner) :
The positioning unit contains the fixed base holder on which the object to be measured is fixed as
well as a rotating and swivelling unit powered by an electric motor.
Rotating and swivelling unit/Object holder:
The rotating unit allows you to position the object to be measured in any position relevant to the
camera of the 3D sensor located on the object holder via the electric motor.
The swivelling unit allows you to swivel the entire setup comprising rotating unit and object holder
and hence record side views of the object to the measured.
Interior lighting:
The interior lighting switches on automatically when the flap is opened. If the flap remains open
for longer than 5 minutes, the lighting will switch off automatically.
The interior lighting switches off automatically when the flap is closed.
11.3 Object holder

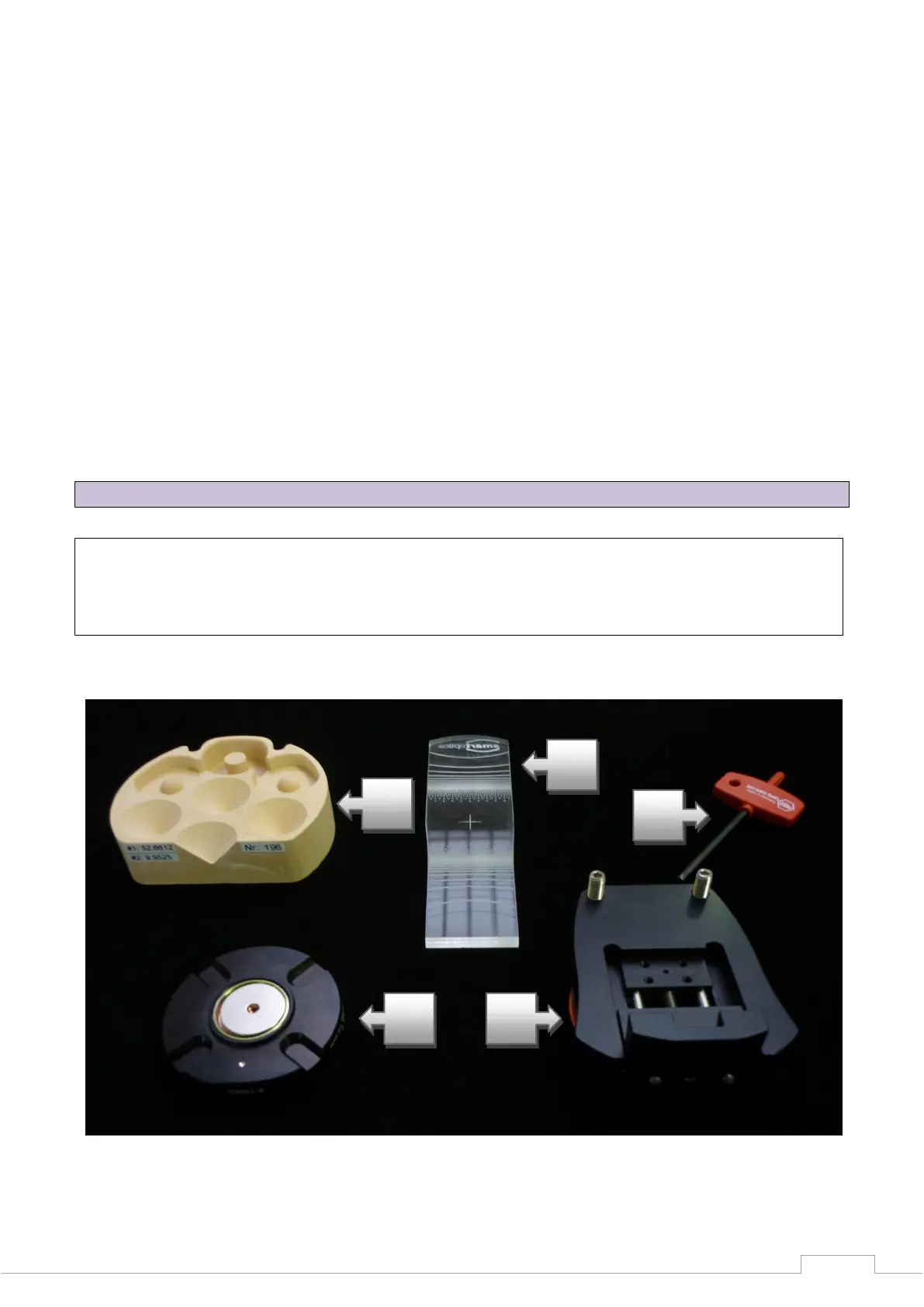

Figure 31: Individual parts of the object holder
Individual parts of the object holder
The scope of delivery for the object holder of the Activity 850 consists of the following
components:
1
3
4
5
2
