Smart Optics Activity 850 - Figure 61: Prescan; Figure 62: Vestibular Scan; Figure 63: Articulation Icon

Scanning procedure
50

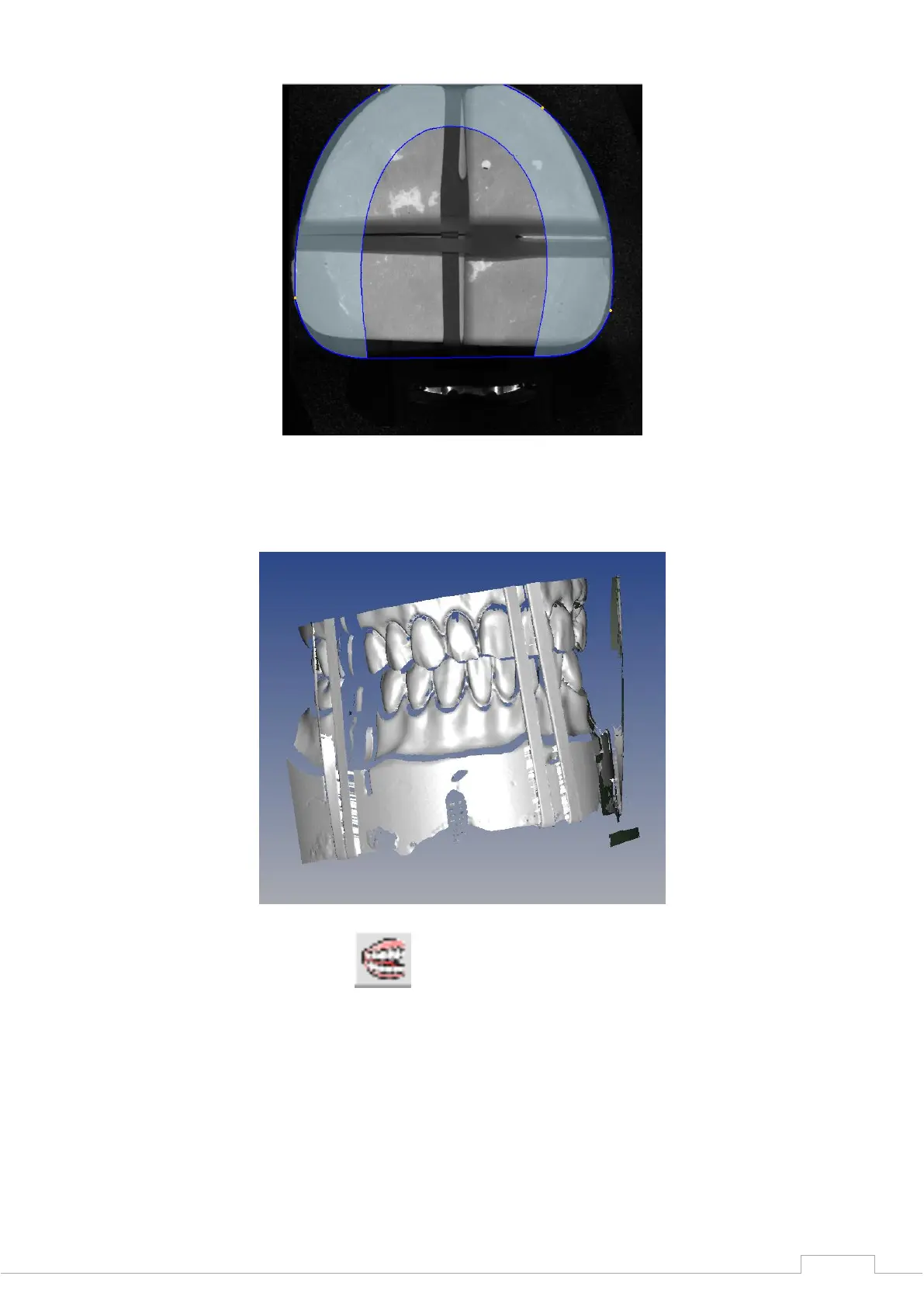

Figure 61: Prescan
Start the scanning process as usual.
The outer sides (vestibular view) are scanned by the device, as shown below:
Figure 62: Vestibular scan
Click on the articulation icon:
Figure 63: "Articulation" icon
The software now indicates in succession which jaw has to be loaded.
First confirm the "Lower jaw tab" with OK. Then proceed in the same way with the "Upper jaw
tab".
