Basic information about the device
Key to the scope of supply of the object holder system
1. Calibration object for axis and 3D calibration.
2. Measuring range template for height alignment of the jaw model.
3. Hex key for clamping or loosening the plaster model on the model holder.
4. An additional spacer plate with magnet for height alignment.
5. Removable object holder for non-articulated jaw models. The model is fastened on the
object holder using a clamp. This clamp is fastened or released using the hex key (4).
Using the object holder system:
The object holder of the Activity 850 primarily comprises a system base plate fixed on a rotating-
swivelling unit.

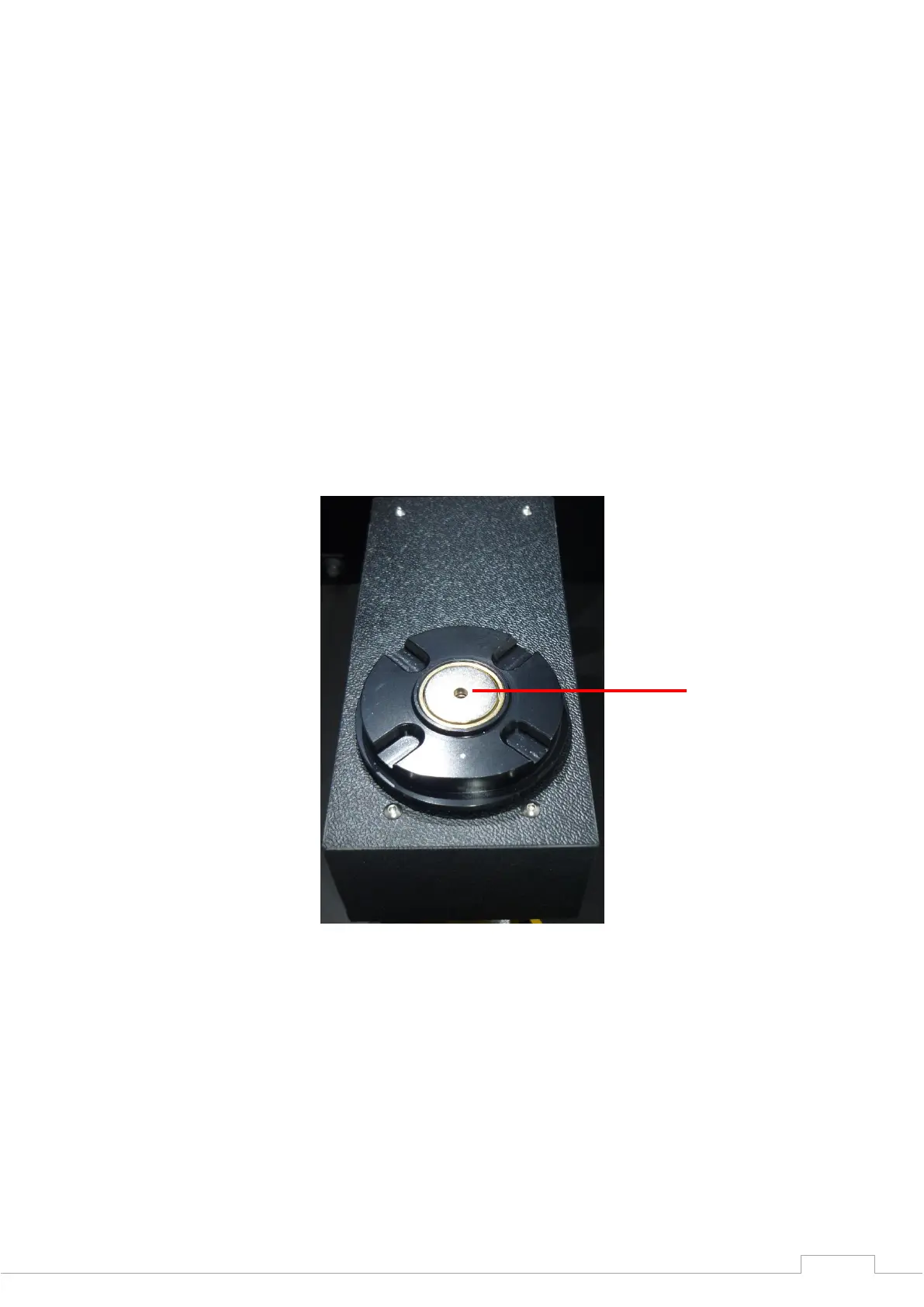

Figure 32: Object holder system
In order to ensure an optimum alignment of the model to be scanned in the measuring range, a
maximum of one additional spacer plate can be mounted on this.
The object holder can now be fixed on the base or spacer plate.
