Chapter 5 Display and setting of various functions
HRSH Series 5.21 Communication function
5-83
58. Select contact output signal 3 function from the table below with [▲] key or [▼] key, and
confirm by pressing “SEL”.

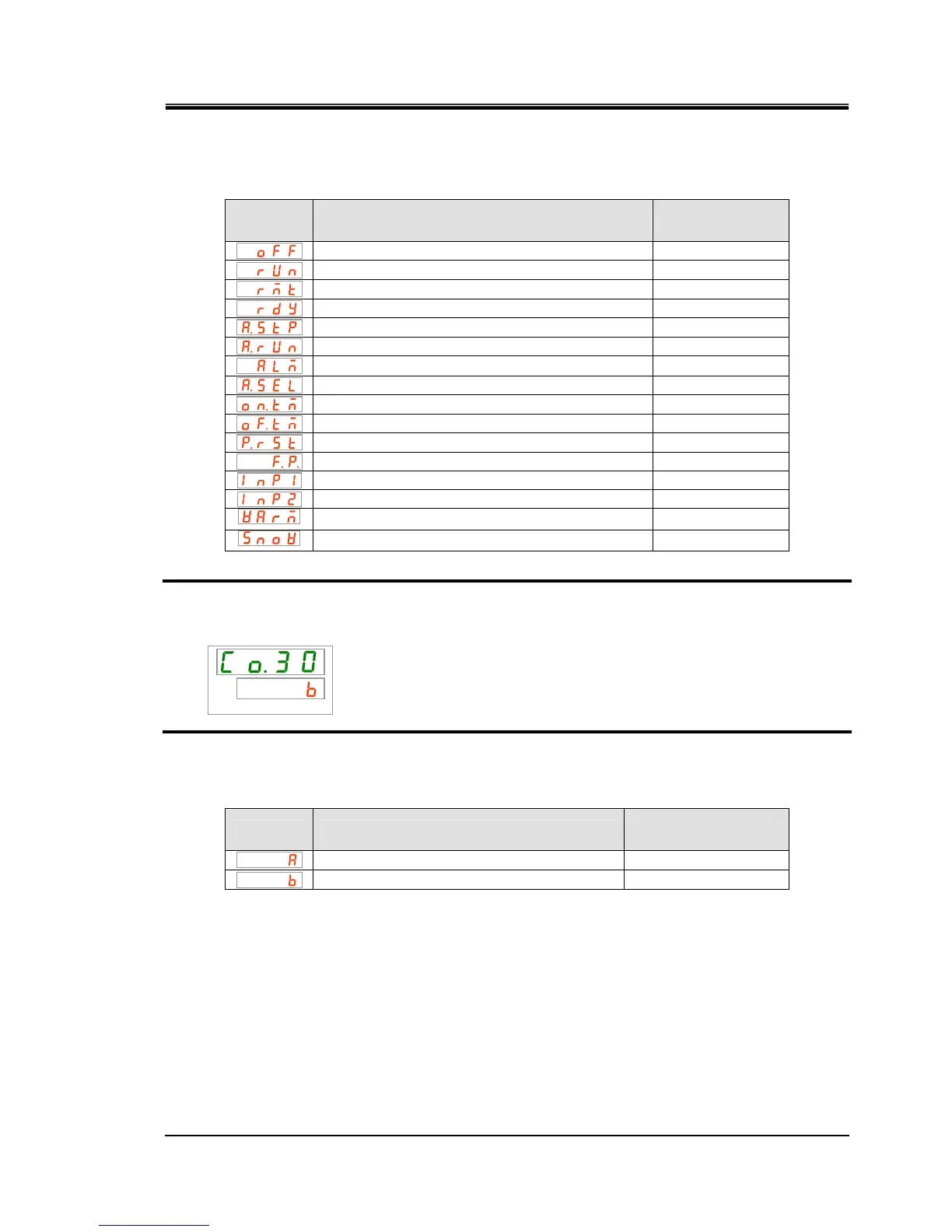

Table 5.21-30 List of set value
Set value Explanation
Initial value
(Default setting)
Without signal output
Operation status signal output
Remote status signal output
Ready completion (TEMP READY) signal output
Operation stop alarm signal output
Operation continuation alarm signal output
Alarm status signal output
○
Selected alarm status signal output
Operation start timer setting status signal output
Operation stop timer setting status signal output
Recovery from power failure setting status signal output
Anti-freezing setting status signal output
Contact input signal 1 pass through signal output
Contact input signal 2 pass through signal output
Warming up function setting status output
Anti-snow coverage function setting status output
Contact output signal 3 operation Setting and checking
59. Press the [SEL] key once.
The set screen of contact output signal 3 operation is displayed on the digital display.
PV
SV
60. Select contact output signal 3 operation from the table below with [▲] key or [▼] key,
and confirm by pressing “SEL”.
Table 5.21-31 List of set value
Set value Explanation
Initial value
(Default setting)
N.O type
N.C type
○
