SMC Networks LECP1 Series User Manual

- 26 -

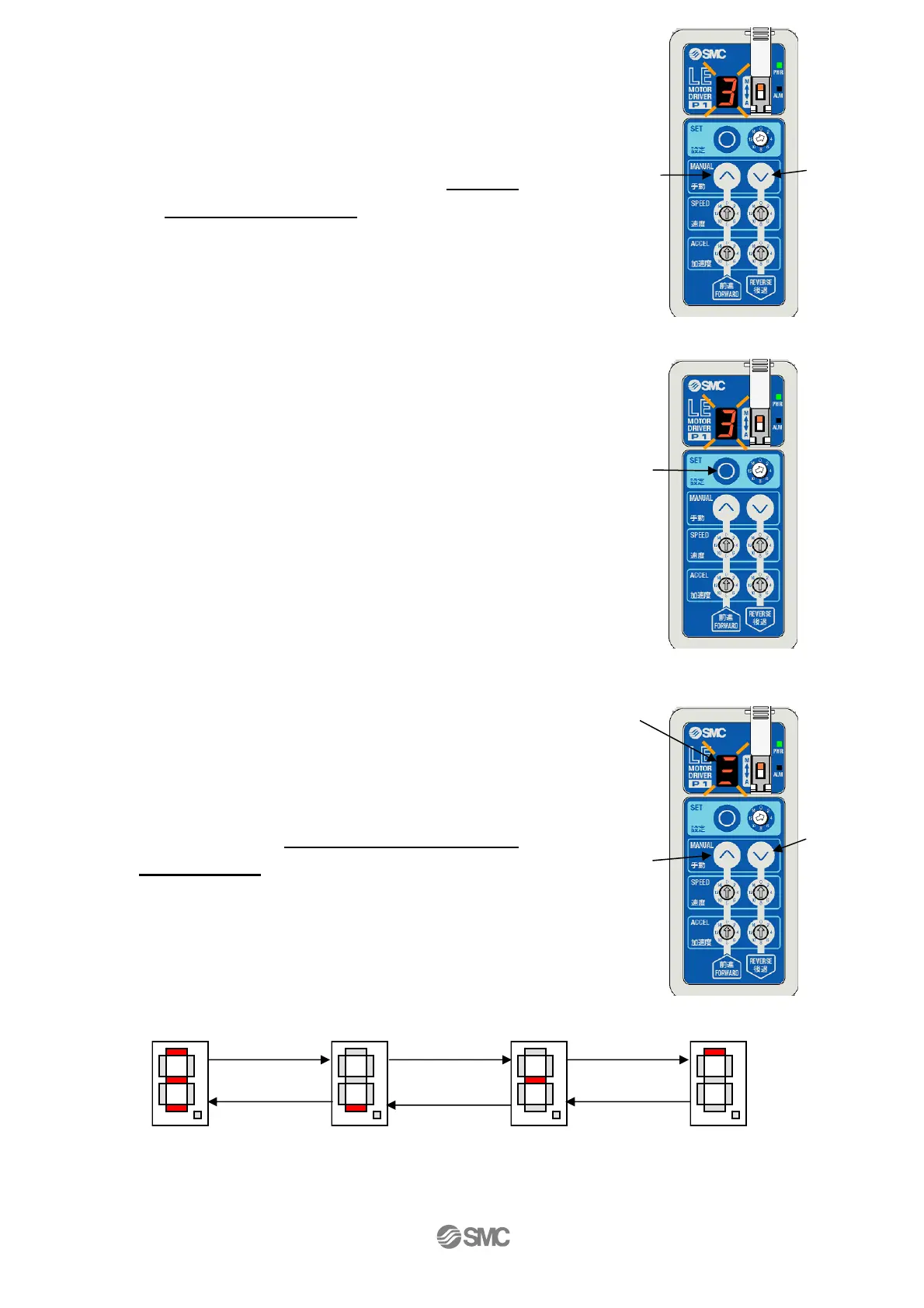

[3] Perform Jog / inching using Forward button
○
i,
Reverse button
○
j to move to desired position.
* Jog starts by keeping pressing Forward button
○
i or Reverse button
○
j .Refer to 8.4 Jog /
inching operation (P.
42) for details.
[4] Lock in the position by pressing the set button
○
g . At this point, the value is not stored if the
power supply is cut, it is necessary to started from
procedure [1].
[5] Set the operation method of this position by
pressing Forward button
○
i or Reverse button
○
j monitoring 7-segment LED
○
f
* Actual force of pushing force depends on the
actuator. Refer to 10. I
nitial setting value per
actuator (P.
48) Pushing operation may not be
possible depending on the actuator.
7-segment LED display (Set operation method)
Positioning
Pushing
force Low
Pushing
force Middle
Pushing
force High
Forward
button
○
i
Forward
button
○
i
Forward
button
○
i
Reverse
button
○
j
Reverse
button
○
j
Reverse
button
○
j
Forward
button
○
i
Reverse
button
○
j
7-segment
LED
○
f
Forward
button
○
i
Reverse
button
○
j
Set
button
○
g
