COSMOS DRIVER SERIES 3000 - USE AND MAINTENANCE MANUAL
5 INSTALLATION
5.1 Positioning and installation
The drivers COSMOS 3000 can be installed close to an iron wall connected to earth. Install the driver in vertical position,
with the fan side turned downwards, so that it can be cooled also by natural convection; a space of about 10 cm must
be left above and below the driver.
In order to establish the electrical panel size, consider the thermal dissipation depending on the required output current,
as indicated in chapter 3.4.
The drivers Cosmos 3000 are designed to be installed in closed electrical operating areas.
5.1.1 COSMOS Type 315X/325X

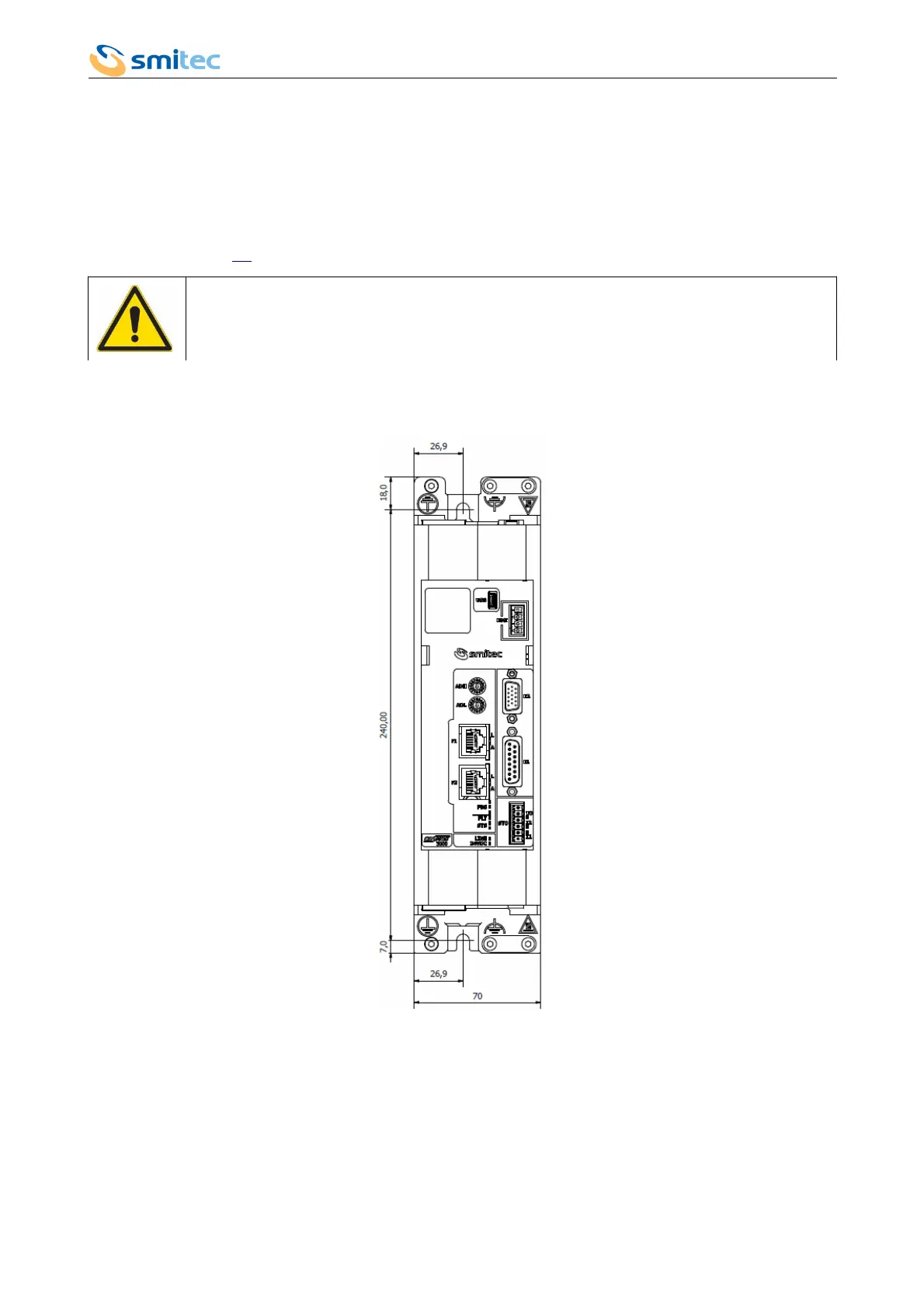

Use the below template, in order to prepare the wall and fix the device with 2 screws M5, by duly tightening them.
Ver. 1.07 Pag. 26
