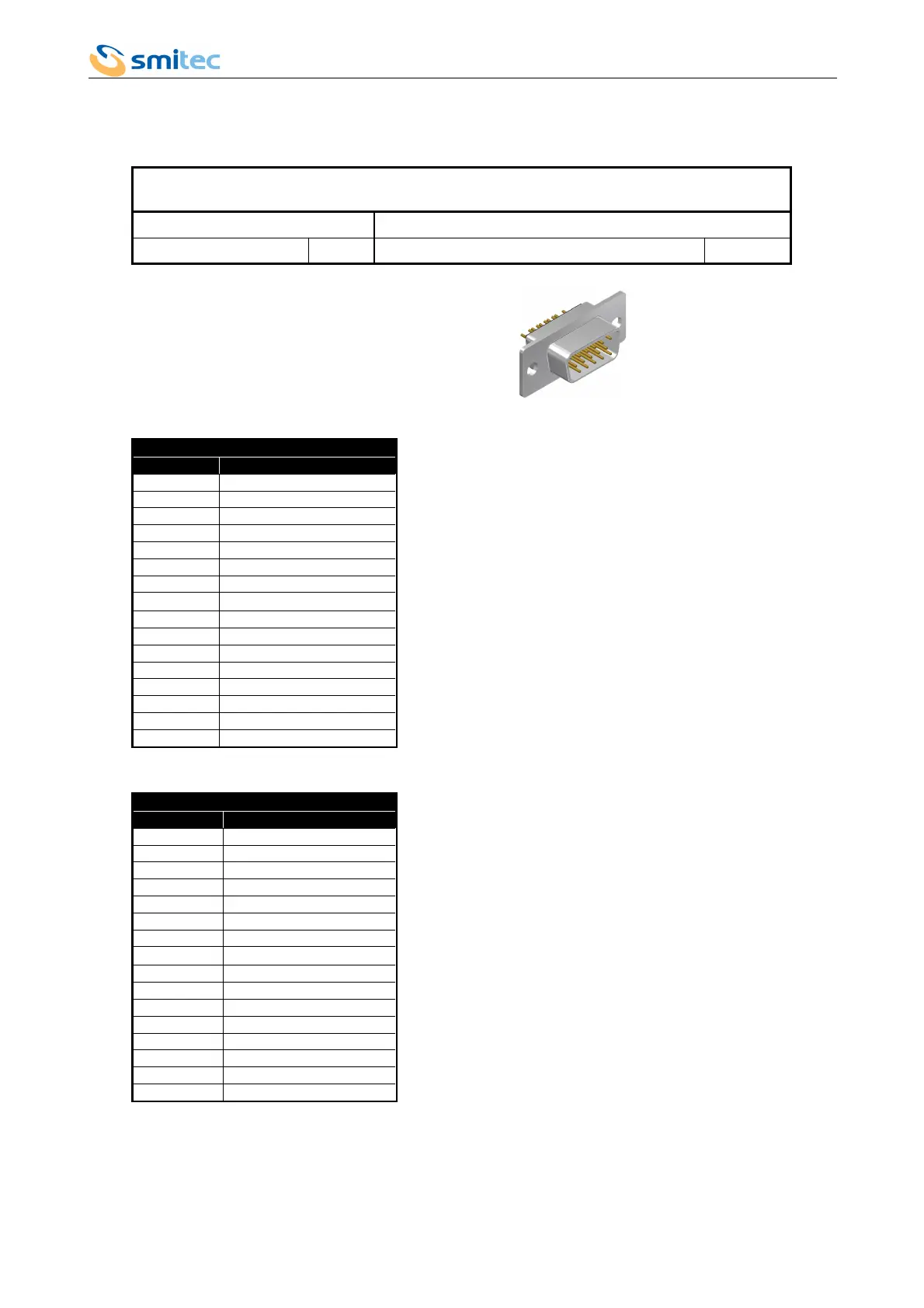

COSMOS DRIVER SERIES 3000 - USE AND MAINTENANCE MANUAL
5.3.6.2 COSMOS Type 3XXX (second series)
Connector Type: D-SUB HD15 M (not supplied)
Order code: --------
Features Connector cross section
5.3.6.2.1 Encoder connections 24V OC/HTL
Connector E1
Label Signal
1 NTC
2 NTC
3 +24Vdc
4 GND
5 Shield
6 Phase A
7 Phase B
8
9
10
11
12
13
14
15
SHELL Shield
5.3.6.2.2 Differential Encoder 5V connections (except Type 3502)
Connector E1
Label Signal
1 NTC
2 NTC
3 +5Vdc
4 GND
5 Shield
6 Phase A+
7 Phase B+
8 Hall U+ (#1)
9 Hall V+ (#1)
10 Hall W+ (#1)
11 Phase A-
12 Phase B-
13 Hall U- (#1)
14 Hall V- (#1)
15 Hall W- (#1)
SHELL Shield
(#1) The circuitry in these models is designed for non balanced signals; therefore, it is possible to only connect positive
poles (U+, V+, W+); should negative poles be available (U-, V-, W-), it is possible to connect them to the connector
pins, in order to obtain a better immunity to interferences.
Ver. 1.07 Pag. 40
