COSMOS DRIVER SERIES 3000 - USE AND MAINTENANCE MANUAL

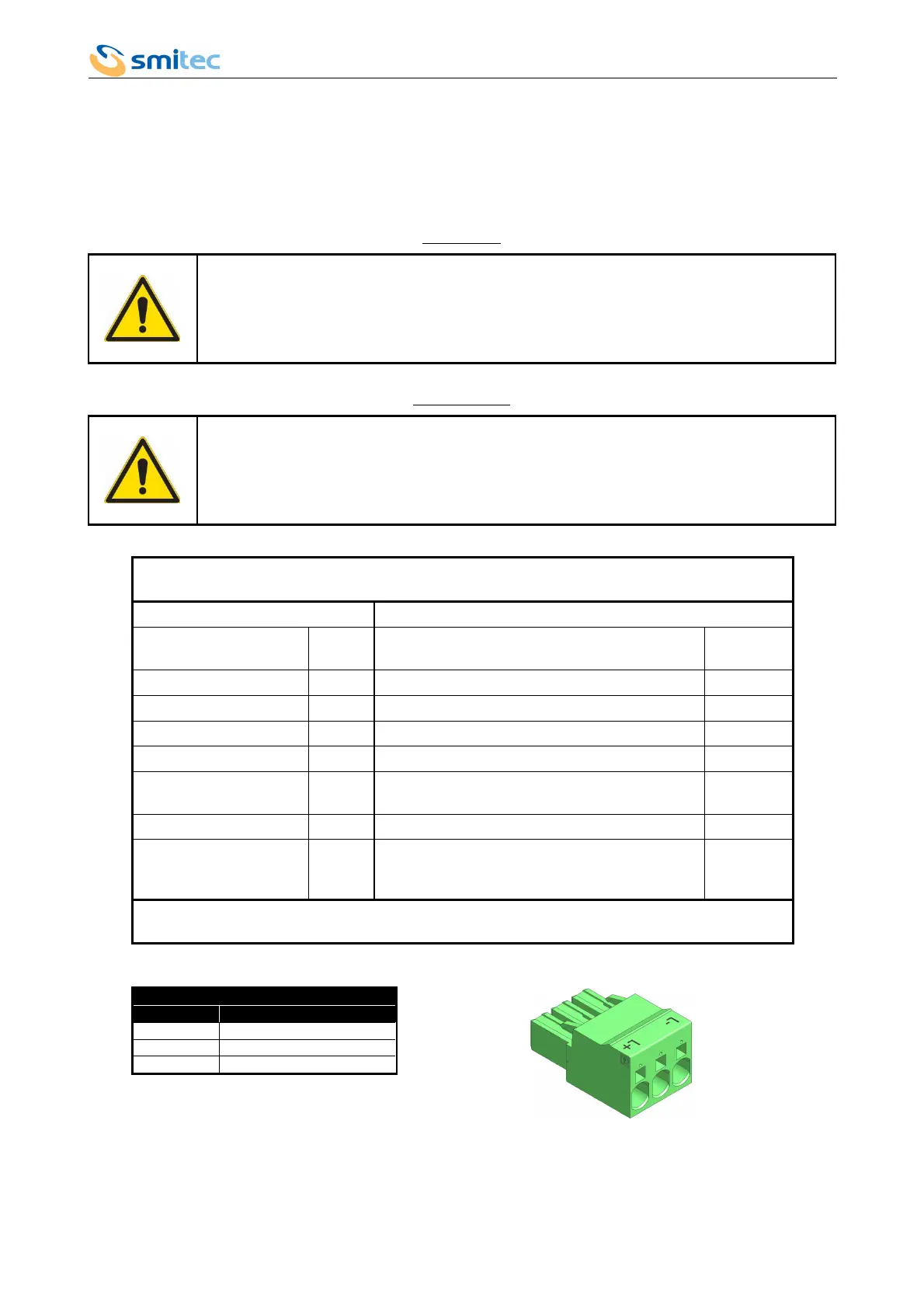

5.3.4 DC BUS power supply (DC BUS/J3)
The DC BUS power supply is a continuous voltage obtained by rectifying the voltage of the main power supply input; it is
very useful for connecting in parallel several drivers, in order to recover the power produced by the braking motors and
use it for the other motors. Furthermore, it is useful to distribute to different drivers the power dissipated by the dynamic
brake.
CAUTION
It is necessary to strictly adhere to the polarity of the DC BUS power supply, in order to avoid
irreversible damages to the driver.
ATTENTION
La polarité de la connexion de l'alimentation DC BUS doit être scrupuleusement respectée afin de
ne pas risquer des pannes irréversibles de l'entraînement.
Connector type: Phoenix Contact SPC5/3-ST (1996029) * **
Order code: KF101044
Features Conductor cross section
Connection in accordance
with
EN-VDE Solid min. 0,2mm²
Rated voltage 1000V Solid max. 10mm²
Rated current 41A Stranded min. 0,2mm²
Stranded max. 6mm²
Insulating material PA Stranded ferrule without plastic sleeve, min. 0,25mm²
Flammability rating
(Standard UL 94)
V0 Stranded ferrule without plastic sleeve max. 6mm²
Stripping length 15mm Stranded ferrule with plastic sleeve min. 0,25mm²
Screwdriver to be used in
order to open the
connections
0,6 x
3,5mm
Stranded ferrule with plastic sleeve max. 4mm²
*= Use 60/75 °C wires only (UL)
**= Use Copper Conductors only (UL)
Connector DC BUS/ J3
Label Signal
L+ + DC BUS
L- - DC BUS
Ver. 1.07 Pag. 37
