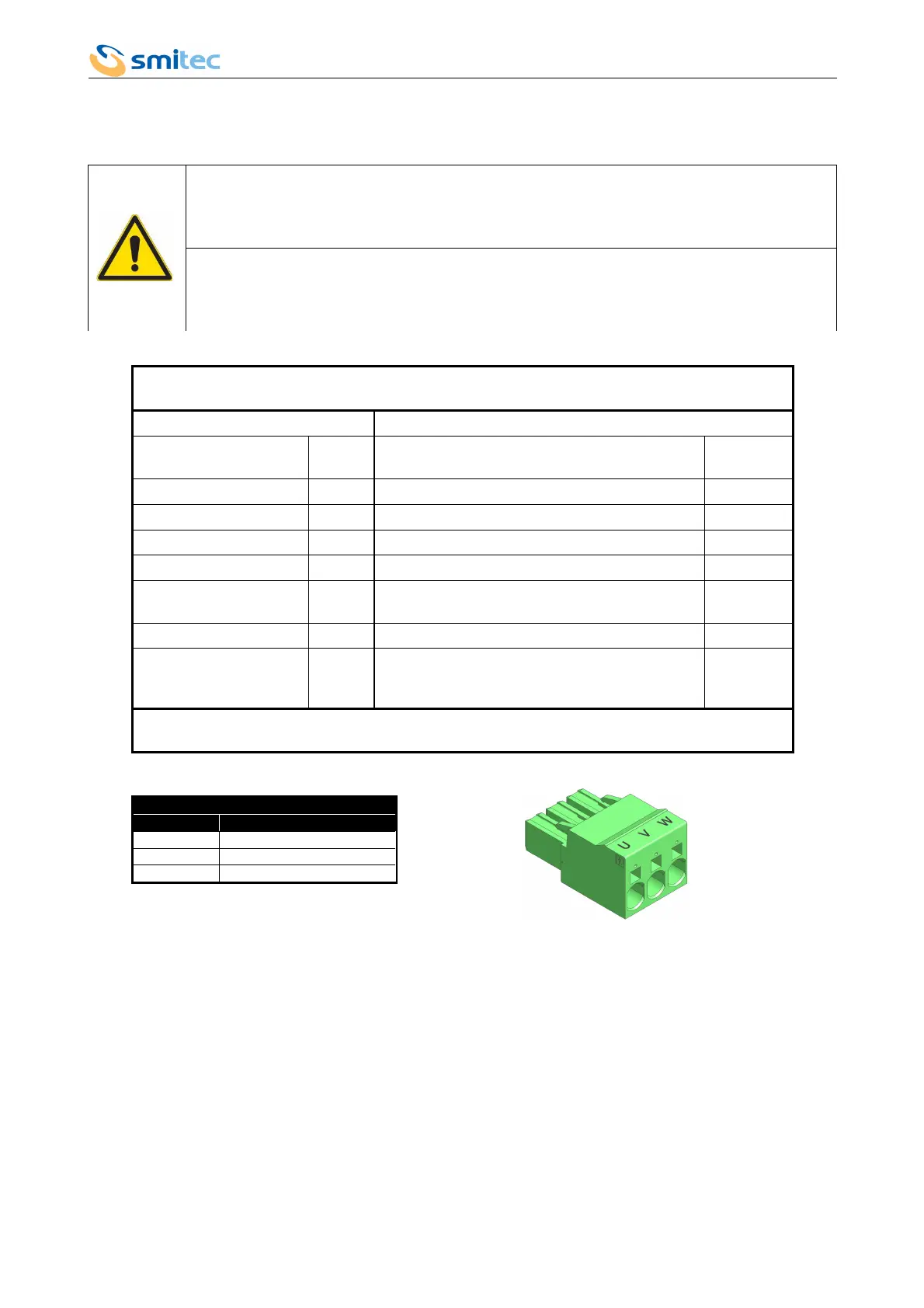

5.3.3 Motor output (MOTOR/J4)
The motor output is the power adjusted by the driver in order to start the connected motor.
In order to avoid electro-magnetic interferences, it is necessary to use a shielded cable to be fixed by
means of a cable-pass applied to the driver iron frame.
The connector is not provided with the motor safety earth connection.
It is necessary to connect the motor with earth, through the specific connection areas on the driver
iron body.
Connector type: Phoenix Contact SPC5/3-ST (1996029) * **
Order code: KF101045
Features Conductor cross section
Connection in accordance
with
EN-VDE Solid min. 0,2mm²
Rated voltage 1000V Solid max. 10mm²
Rated current 41A Stranded min. 0,2mm²
Stranded max. 6mm²
Insulating material PA Stranded ferrule without plastic sleeve, min. 0,25mm²
Flammability rating
(Standard UL 94)
V0 Stranded ferrule without plastic sleeve max. 6mm²
Stripping length 15mm Stranded ferrule with plastic sleeve min. 0,25mm²
Screwdriver to be used in
order to open the
connections
0,6 x
3,5mm
Stranded ferrule with plastic sleeve max. 4mm²
*= Use 60/75 °C wires only (UL)
**= Use Copper Conductors only (UL)
Connector MOTOR/ J4
Label Signal
U Motor U phase
V Motor V phase
W Motor W phase
