COSMOS DRIVER SERIES 3000 - USE AND MAINTENANCE MANUAL
5.1.3 COSMOS Type 3500/1 (second series)

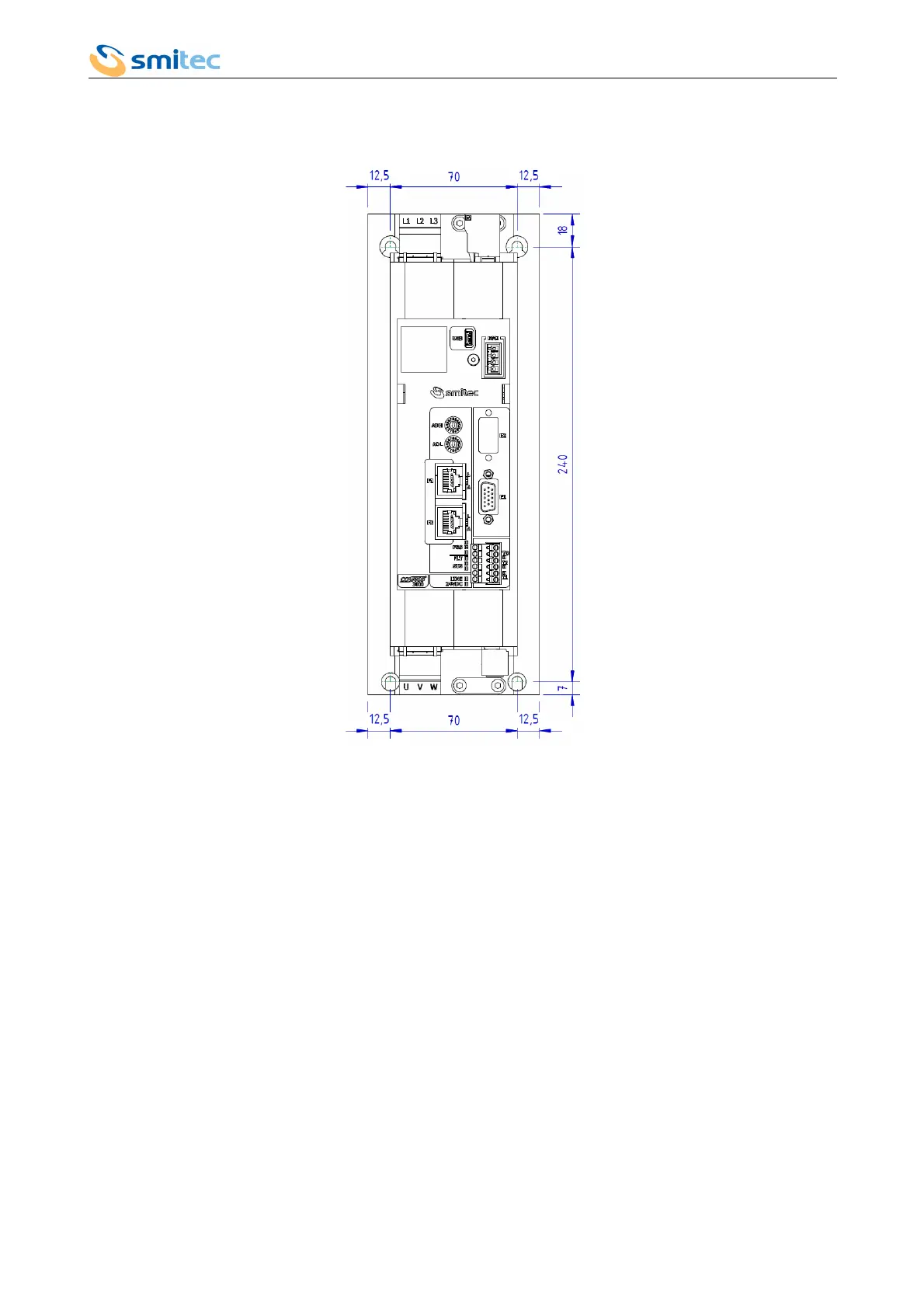

Use the below template, in order to prepare the wall and fix the device with 4 screws M5, by duly tightening them.
Ver. 1.07 Pag. 28
