2.3 Status detection
No. Detecting content Sensor type
1
Paper status
Mechanical photoelectric
sensor
2
Mark Photoelectric sensor
3
Print head position Microswitch
4
Print head temperature Thermal resistor
Table 2.3 Status detection

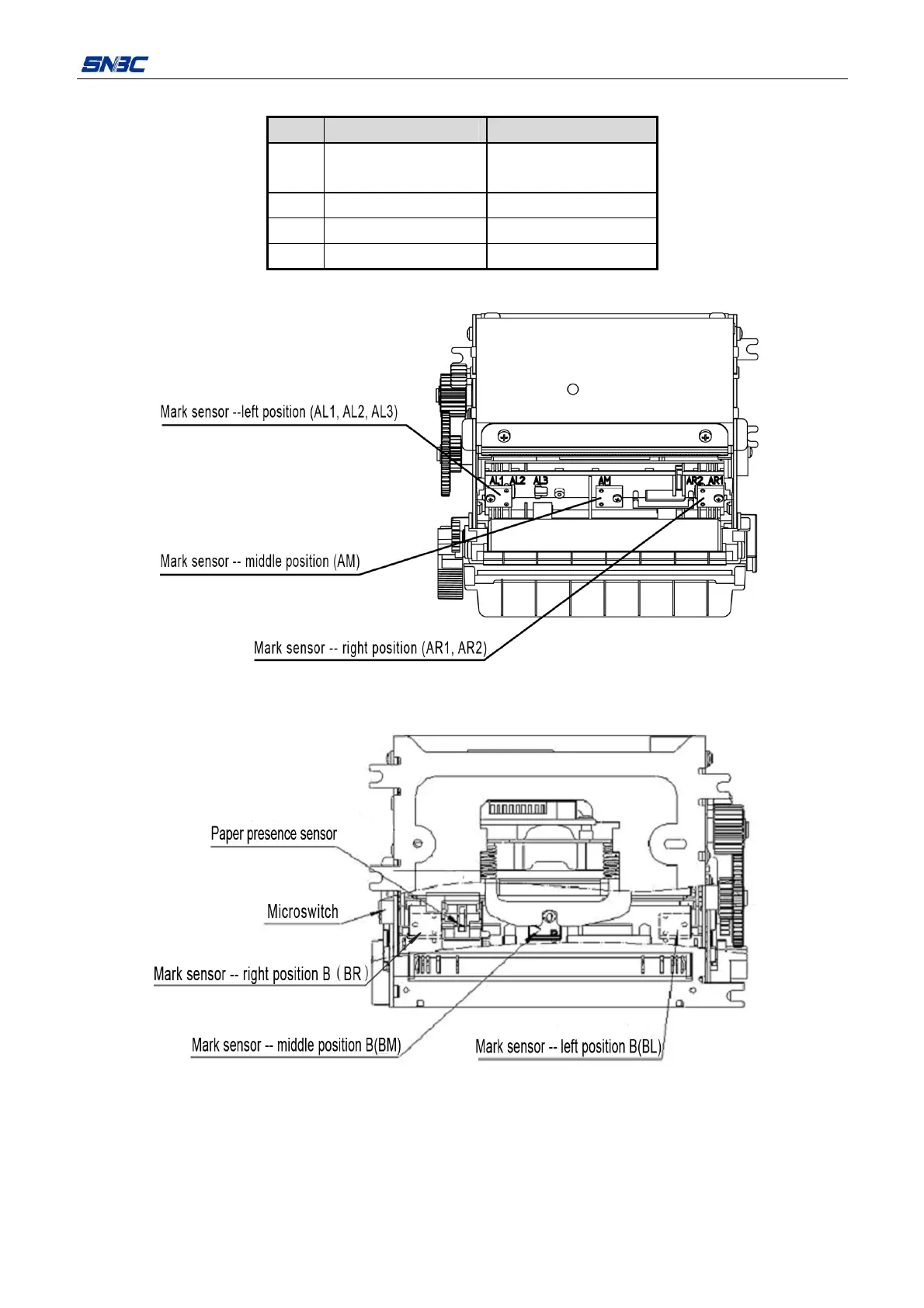

Figure 2.3.1 Mark sensor 1
Figure 2.3.2 Mark sensor 2
Note:
When the mark sensor is located in position A, the mark is located in non-thermal layer;
When the mark sensor is located in position B, the mark is located in thermal layer.
