BT-T080R User’s Manual
- 25 -
2）Paper roll with thermal layer inward

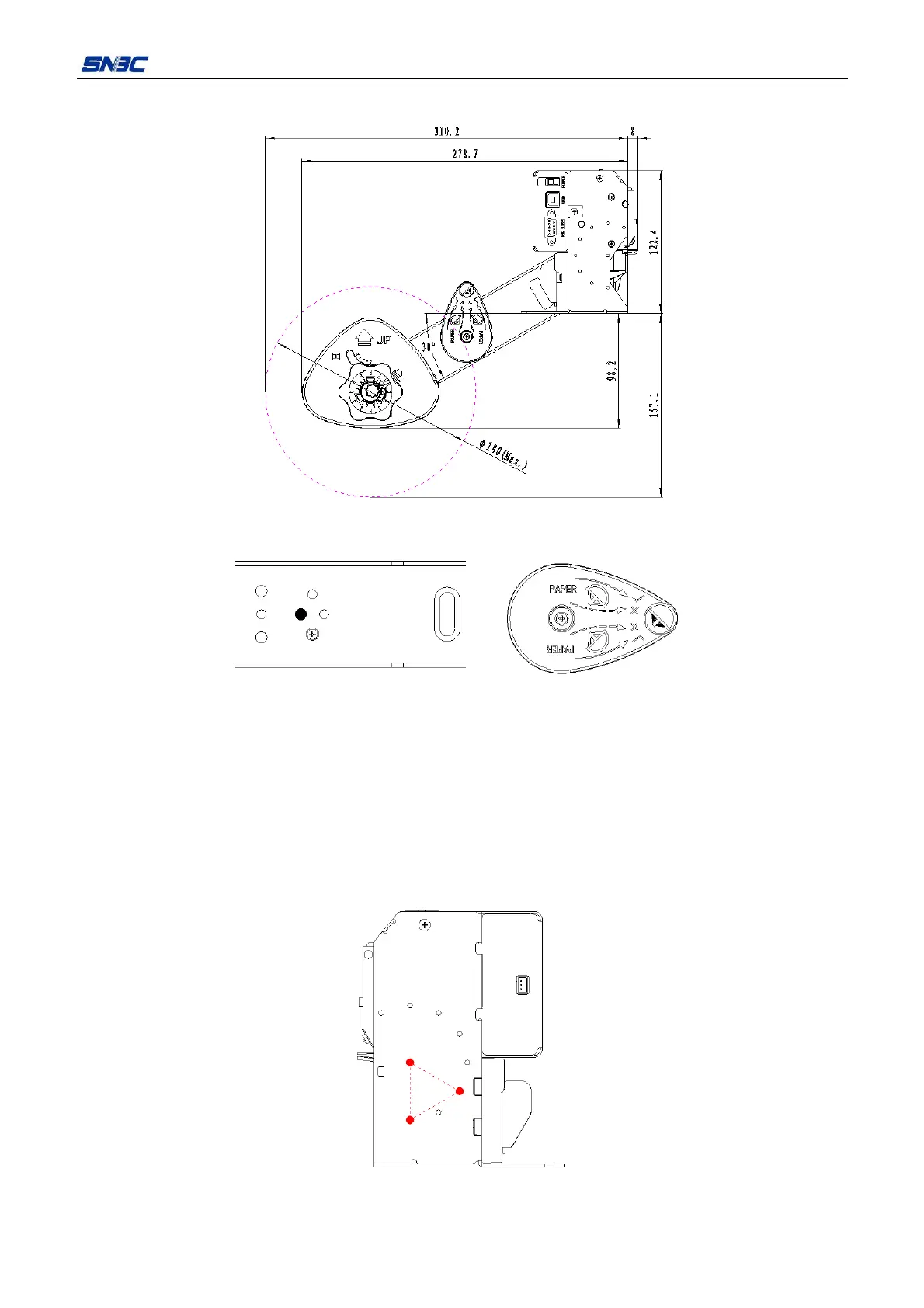

Figure 4.3.16 Module installation setting and size
Position 3 for installing buffer Buffer shaft position 2
4.3.6 Cantilever angle: -60°
The cantilever angle is -60°, that is, the cantilever is located below the print mechanism and the
intersection angle between the cantilever and the horizon is 60°.The following drawing indicates the
relative position of the print mechanism to fixing holes marked by solid circle and the extreme size after
installing the paper roll.
Following is the explanation for the modules corresponding with the paper roll with thermal layer outward
and the paper roll with thermal layer inward.
Figure 4.3.17 Installation position with the cantilever angle -60°
1）Paper roll with thermal layer outward
