2.4 Print paper technical index

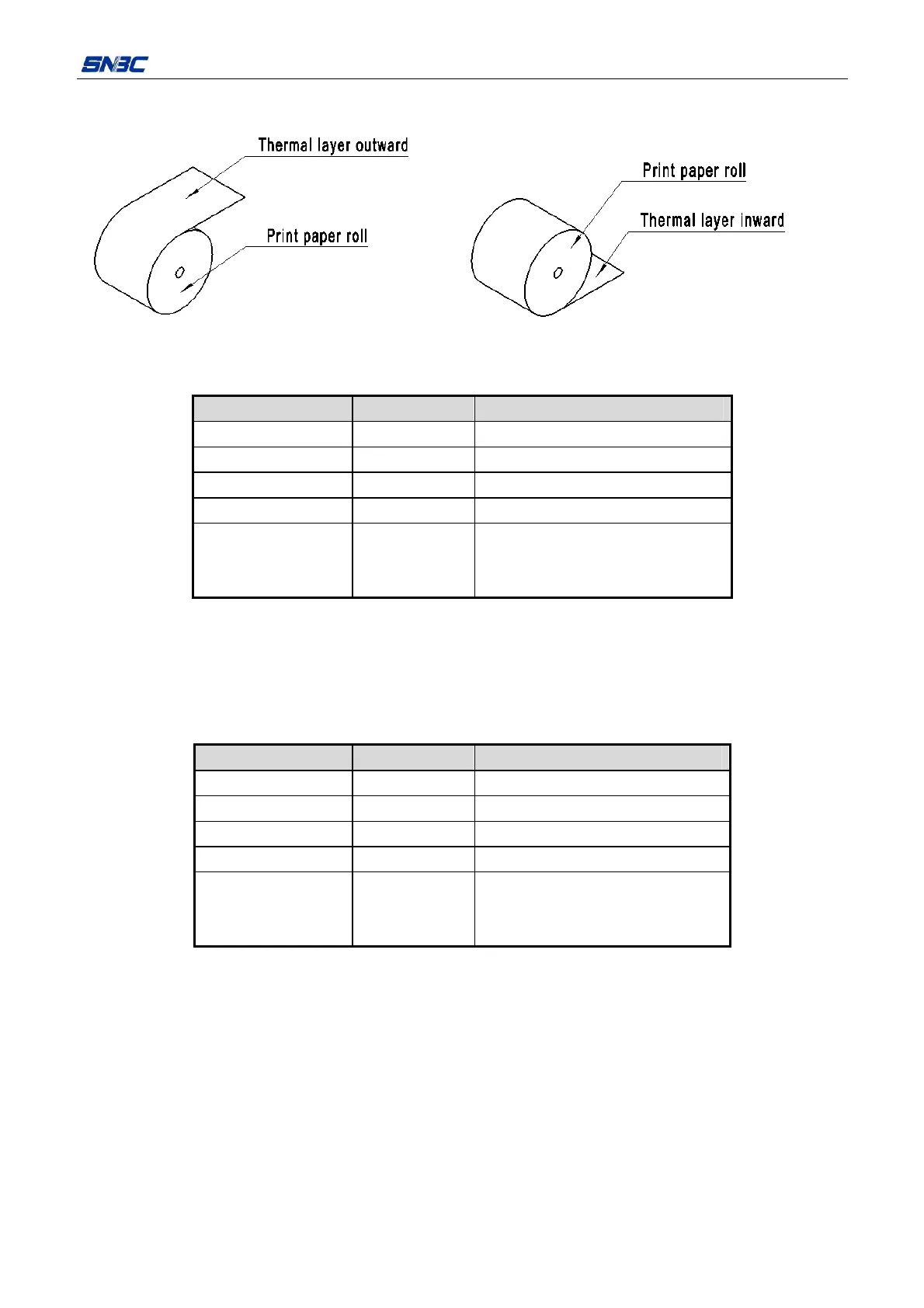

Figure 2.4.1 Paper roll with thermal layer outward Paper roll with thermal layer inward
2.4.1 Continuous paper parameter
Item Parameter Remark
Paper width
48～82.5mm Recommended: 70～82.5mm
Paper thickness
60～100μm
Paper roll OD ≤180mm
Paper roll ID
18～60mm Recommended: 18～25.4mm
Thermal layer position Inward, outward
The anti-pull and anti-jam module
doesn’t support paper roll with thermal
layer inward.
Table 2.4.1 Continuous paper parameters
Note:
Paper width: The mark width of paper holder includes 82.5mm, 80mm, 76mm, 70mm, 56mm and 48mm,
among which the 56mm and 48mm width paper need to adjust the firmware.
2.4.2 Marked paper parameter
Item Parameter Remark
Paper width
48～82.5mm Recommended: 70～82.5mm
Paper thickness
60～100μm
Paper roll OD ≤180mm
Paper roll ID
18～60mm Recommended: 18～25.4mm
Thermal layer position Inward, outward
The anti-pull and anti-jam module
doesn’t support paper roll with thermal
layer inward.
Table 2.4.2 Marked paper parameters
Note:
Paper width: The mark width of paper holder includes 82.5mm, 80mm, 76mm, 70mm, 56mn and 48mm,
among which the 56mm and 48mm width paper need to adjust the firmware and only adapt to Mark
position 2 (see Figure 2.4.2 Mark position)
.
1) Mark position
9 For the paper mark over 79mm width, you can select thermal layer/non-thermal layer left, middle
and right (seven positions) as shown in Figure 2.4.2. Ensure beside marks cover mark sensor
completely (The space between mark sensor and the paper midline is 38.2 mm);
9 For paper mark less than 79mm width, you can select thermal layer/non-thermal layer middle,
